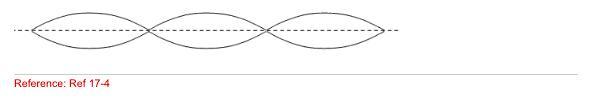

A 6.00-m long string sustains a three-loop standing wave pattern as shown. The wave speed is 2.00 × 102 m/s.What is the lowest p

ossible frequency for standing waves on this string?

Physics
1 answer:
KATRIN_1 [288]2 years ago
4 0

Given:

The length of the string is l = 6 m

The speed of the wave is

v=2\times10^2\text{ m/s}

Required: Lowest possible frequency for the standing wave.

Explanation:

The lowest possible frequency is the fundamental frequency.

The fundamental frequency can be calculated by the formula

f=\frac{v}{2l}

On substituting the values, the fundamental frequency will be

\begin{gathered} f=\frac{2\times10^2}{2\times6} \\ =16.67\text{ Hz} \end{gathered}

Final Answer: The lowest possible frequency for standing waves on this string is 16.67 Hz
