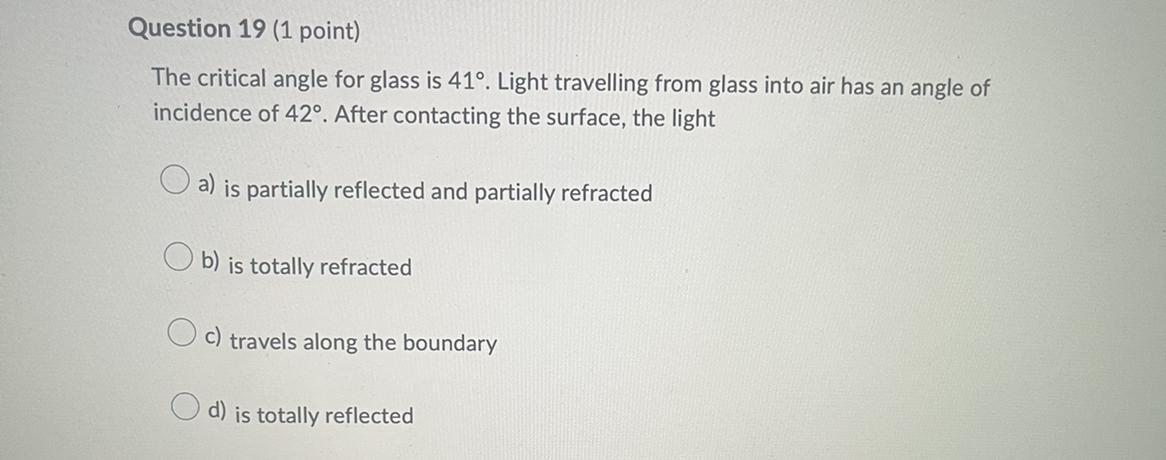

I WILL MARK U BRAINLIEST IF U CAN ANSWER THIS QUESTION!!

Physics

1 answer:

sergey [27]1 year ago

5 0

Answer:

The answer is (d) is totally reflected

Explanation:

Using the total internal reflection concept.

This concept state that:

"If the angle of incidence is greater than the critical angle then the light will not refract but it will reflect back totally"

Using the above statement, as incident angle is 42 degree and critical angle is 41 degree it means incident angle is greater than the critical angle. Therefore, light will not refract but it will totally reflected.

You might be interested in

CAN YOU PLS CHECK IF ITS CORRECT I'LL MARK YOU BRAINLIST

Alexus [3.1K]

i think it looks good

yea it correct

BTW yw if it's right

5 0

3 years ago

Read 2 more answers

The block in the drawing has dimensions L0×2L0×3L0,where L0 =0.5 m. The block has a thermal conductivity of 200 J/(s·m·C˚). In d

Dennis_Churaev [7]

Answer:

$Q_p=18000\ J$

$Q_o=8000\ J$

$Q_g=72000\ J$

Explanation:

Given:

Length of block, $l=3L_o=3\times 0.5=1.5\ m$

Breadth of block, $b=L_o=0.5\ m$

height of block, $h=2L_o=2\times 0.5=1\ m$

Thermal conductivity of the block, $k=200\ W.m.^{\circ}C$

Temperature on the hotter side, $T_H=37^{\circ}C$

temperature on the cooler side, $T_L=7^{\circ}C$

time for which the heat flows, $t=4\ s$

REFER THE ATTACHED IMAGE FOR THE REFERENCE

The rate of heat flow using Fourier's law of conduction is given as:

$\frac{Q}{t}=k.A.\frac{dT}{dx}$

Now the amount heat flow perpendicular to the pink surface:

$\frac{Q_p}{4}=200\times (0.5\times 1.5).\frac{30}{1}$

$Q_p=18000\ J$

Now the amount heat flow perpendicular to the orange surface:

$\frac{Q_o}{4}=200\times (0.5\times 1).\frac{30}{1.5}$

$Q_o=8000\ J$

Now the amount heat flow perpendicular to the green surface:

$\frac{Q_g}{4}=200\times (1.5\times 1).\frac{30}{0.5}$

$Q_g=72000\ J$

6 0

3 years ago

Please help me with #15, it’s converting units

Pavlova-9 [17]

40 km/h to in/s
60*60=3600 seconds in an hour
one km is about 0.621 miles
40 km is about 0.621*40=24.84 miles
5280 feet in a mile
12 inches on each foot
5280*12=63360 inches in a mile
63360*24.84=1573862.4 inches in 40km
40 km/h = 40*1573862.4/3600=17487.36 in/s

6 0

3 years ago

A 6.00-mH solenoid is connected in series with a 5.0-μF capacitor and an AC source. The solenoid has internal resistance 3.0 Ω w

son4ous [18]

Answer:

5773.50269 Hz

23 A

Explanation:

$L$ = Inductance = 6 mH
