Design a common emitter (voltage amp) PNP amplifier with a voltage gain of 25, VCC = +15 V, and IC = 0.25 mA. Bias the collector

at 0.5VCC. (Coupling capacitor selection is optional.)

1 answer:

Paladinen [302]3 years ago

3 0

Answer:

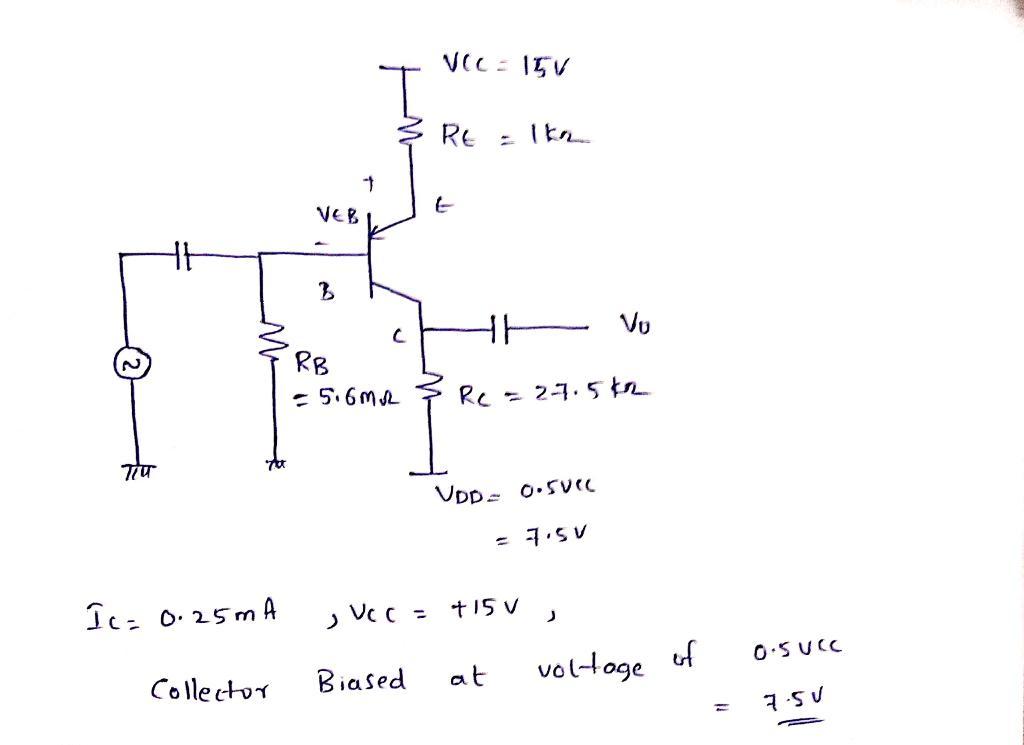

See the attached pictures for detailed answer.

Explanation:

You might be interested in

Why capillary happen.

Lady bird [3.3K]

This doesn’t mark any sense

5 0

3 years ago

Physics help please:Explain the mechanism by which AC (alternating current) through the primary circuit of a transformer produce

Makovka662 [10]

<span>In the transformer we use from faraday's law.in this low when a variable current pass from a loop of wire, make variable flux and when variable flux in a loop make variable current in loop.be careful that current or flux must to be variable.

Thank you for posting your question here at brainly. I hope the answer will help you. Feel free to ask more questions here.
</span>

6 0

4 years ago

Read 2 more answers

The atmospheric temperature decreases when snow starts melting because the snow------------------------- from the atmosphere to

jek_recluse [69]

It absorbs thermal energy therefore melting the snow

8 0

3 years ago

Read 2 more answers

Three people pull simultaneously on a stubborn donkey. Jack pulls directly ahead of the donkey with a force of 64.7 N64.7 N , Ji

WARRIOR [948]

Answer:

(a) Magnitude of force is 262.51 N

(b) Angle with East direction is $-14.75^{o}$

Explanation:

Force by Jack in vector form

$\overrightarrow F _1} = 64.7{\rm{ N}}\left( {\hat i} \right)$

Force by Jill in Vector form is given by

$\begin{array}{c}\\{\overrightarrow F _2} = 86.5{\rm{ N }}\cos {\rm{4}}{{\rm{5}}^{\rm{o}}}\left( {\hat i} \right) + 86.5{\rm{ N }}\sin {\rm{4}}{{\rm{5}}^{\rm{o}}}\left( {\widehat j} \right)\\\\ = 61.16{\rm{ N}}\left( {\hat i} \right) + 61.16{\rm{ N}}\left( {\widehat j} \right)\\\end{array}$

Force by Jane is

$\begin{array}{c}\\{\overrightarrow F _3} = 181{\rm{ N }}\cos {\rm{4}}{{\rm{5}}^{\rm{o}}}\left( {\hat i} \right) + 181{\rm{ N }}\sin {\rm{4}}{{\rm{5}}^{\rm{o}}}\left( { - \widehat j} \right)\\\\ = 128{\rm{ N}}\left( {\hat i} \right) + 128{\rm{ N}}\left( { - \widehat j} \right)\\\end{array}$

Net force is:

$\overrightarrow F = {\overrightarrow F _1} + {\overrightarrow F _2} + {\overrightarrow F _3}$

Hence

$\begin{array}{c}\\\overrightarrow F = 64.7{\rm{ N}}\left( {\hat i} \right) + 61.16{\rm{ N}}\left( {\hat i} \right) + 61.16{\rm{ N}}\left( {\widehat j} \right) + 128{\rm{ N}}\left( {\hat i} \right) + 128{\rm{ N}}\left( { - \widehat j} \right)\\\\ = 253.86{\rm{ N}}\left( {\hat i} \right) - 66.84{\rm{ N}}\left( {\widehat j} \right)\\\end{array}$

The net force will be given by

$F = \sqrt {{{\left( {{F_x}} \right)}^2} + {{\left( {{F_y}} \right)}^2}$

Since $F_{x}=253.86N$ and $F_{y}=-66.84N$

$\begin{array}{c}\\F = \sqrt {{{\left( {253.86{\rm{ N}}} \right)}^2} + {{\left( { - 66.84{\rm{ N}}} \right)}^2}} \\\\ = {\bf{262.51 N}}\\\end{array}$

The direction of net force is:

$\theta = {\tan ^{ - 1}}\left {\frac{{{F_y}}}{{{F_x}}}}$

Since $F_{x}=253.86N$ and $F_{y}=-66.84N$

$\begin{array}{c}\\\theta = {\tan ^{ - 1}}\left( {\frac{{ - 66.84{\rm{ N}}}}{{253.86{\rm{ N}}}}} \right)\\\\ = {\tan ^{ - 1}}\left( { - 0.2633} \right)\\\\ = {\bf{ - 14}}{\bf{.7}}{{\bf{5}}^{\bf{o}}}\\\end{array}$

The angle with East direction is $-14.75^{o}$

Net force exerted on the donkey is in the south-east direction. So, the angle of net force from the east direction is $-14.75^{o}$ and it is $14.75^{o}$ from the south.

5 0

3 years ago

How is potential energy converted to thermal energy in a system?

Natali [406]

For example, an internal combustion engine converts<span> the </span>potential<span> chemical </span>energy <span>in gasoline and oxygen into </span>thermal energy<span> which, by causing pressure and performing work on the pistons, is </span>transformed<span> into the mechanical </span>energy<span> that accelerates the vehicle (increasing its kinetic </span>energy<span>).</span><span />
