Two Charged spheres of 6.4 nC charge are 16 cm apart. What is the magnitude of the field in middle? ( n = 10^-9, 100 cm = 1 m)

Physics

1 answer:

emmainna [20.7K]3 years ago

3 0

Answer:

zero

Explanation:

q = 6.4 nC = 6.4 x 1 0^-9 C

d = 16 cm = 0.16 m

r = 16 / 2 = 8 cm = 0.08 m

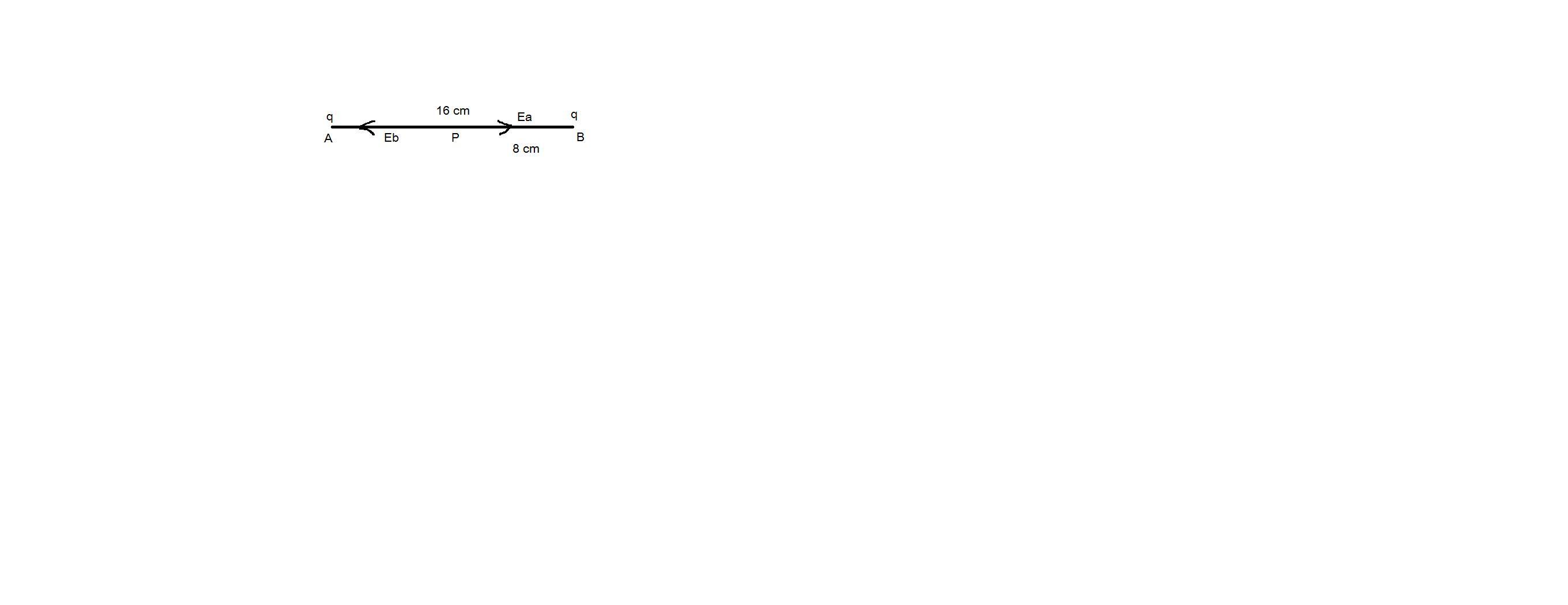

Electric field at P due to the charge placed at A

Ea = k q / r^2

Ea = ( 9 x 10^9 x 6.4 x 10^-9) / (0.08 x 0.08) Towards right

Ea = 9000 Towards right

Electric field at P due to the charge placed at B

Eb = k q / r^2

Eb = ( 9 x 10^9 x 6.4 x 10^-9) / (0.08 x 0.08) Towards left

Eb = 9000 Towards left

The magnitude of electric field is same but teh direction is opposite, so the resultant electric field at P is zero.

You might be interested in

Which of the following is not a characteristic of electromagnetic light waves?

SOVA2 [1]

Answer:

they cant travel through a vacuum

7 0

2 years ago

In an engine, a piston oscillates with simple harmonic motion so that its position varies according to the expression x= 5.0 cos

lakkis [162]

Answer:

a) x = 4.33 m , b) w = 2 rad / s , f = 0.318 Hz , c) a = - 17.31 cm / s²,

d) T = 3.15 s, e) A = 5.0 cm

Explanation:

In this exercise on simple harmonic motion we are given the expression for motion

x = 5 cos (2t + π / 6)

they ask us for t = 0

a) the position of the particle

x = 5 cos (π / 6)

x = 4.33 m

remember angles are in radians

b) The general form of the equation is

x = A cos (w t + Ф)

when comparing the two equations

w = 2 rad / s

angular velocity and frequency are related

w = 2π f

f = w / 2π

f = 2 / 2pi

f = 0.318 Hz

c) the acceleration is defined by

a == d²x / dt²

a = - A w² cos (wt + Ф)

for t = 0 , we substitute

a = - 5,0 2² cos (π / 6)

a = - 17.31 cm / s²

d) El period is

T = 1/f

T= 1/0.318

T = 3.15 s

e) the amplitude

A = 5.0 cm

3 0

3 years ago

The chemical equation provided shows iron rusting to form iron oxide. Use the drop-down menu to choose the coefficients that wil

Brrunno [24]

Answer:

$4 Fe + 3 O_2 \rightarrow 2 Fe_2 O_3$

Explanation:

The original equation is:

$Fe + O_2 \rightarrow Fe_2 O_3$

We notice that:

- we have 1 atom of Fe on the left, and 2 atoms of Fe on the right

- we have 2 atoms of O on the left, and 3 atoms of O on the right

Therefore, the equation is not balanced.

In order to balance it, we can add:

- a coefficient 3 in front of $O_2$

- a coefficient 2 in front of $Fe_2 O_3$

So we have:

$Fe + 3 O_2 \rightarrow 2Fe_2O_3$

Now the oxygen is balanced, but the iron it not balanced yet, since we have 1 Fe on the left and 4 on the right. Therefore, we should add a coefficient 4 on the Fe on the left:

$4 Fe + 3 O_2 \rightarrow 2 Fe_2 O_3$

3 0

3 years ago

Read 2 more answers

Which option correctly matches the chemical formula of a compound with its name?

77julia77 [94]

Answer:it’s A

Explanation:

4 0

3 years ago

Read 2 more answers

A step index fiber has a numerical aperture of NA = 0.1. The refractive index of its cladding is 1.465. What is the largest core

Vladimir [108]

Answer:

diameter = 9.951 × $10^{-6}$ m

Explanation:

given data

NA = 0.1

refractive index = 1.465

wavelength = 1.3 μm

to find out

What is the largest core diameter for which the fiber remains single-mode

solution

we know that for single mode v number is

V ≤ 2.405

and v = $\frac{2*\pi *r}{ wavelength} NA$

here r is radius

so we can say

$\frac{2*\pi *r}{ wavelength} NA$ = 2.405

put here value

$\frac{2*\pi *r}{1.3*10^{-6}} 0.1$ = 2.405

solve it we get r

r = 4.975979 × $x^{-6}$ m

so diameter is = 2 × 4.975979 × $10^{-6}$ m

diameter = 9.951 × $10^{-6}$ m

3 0
