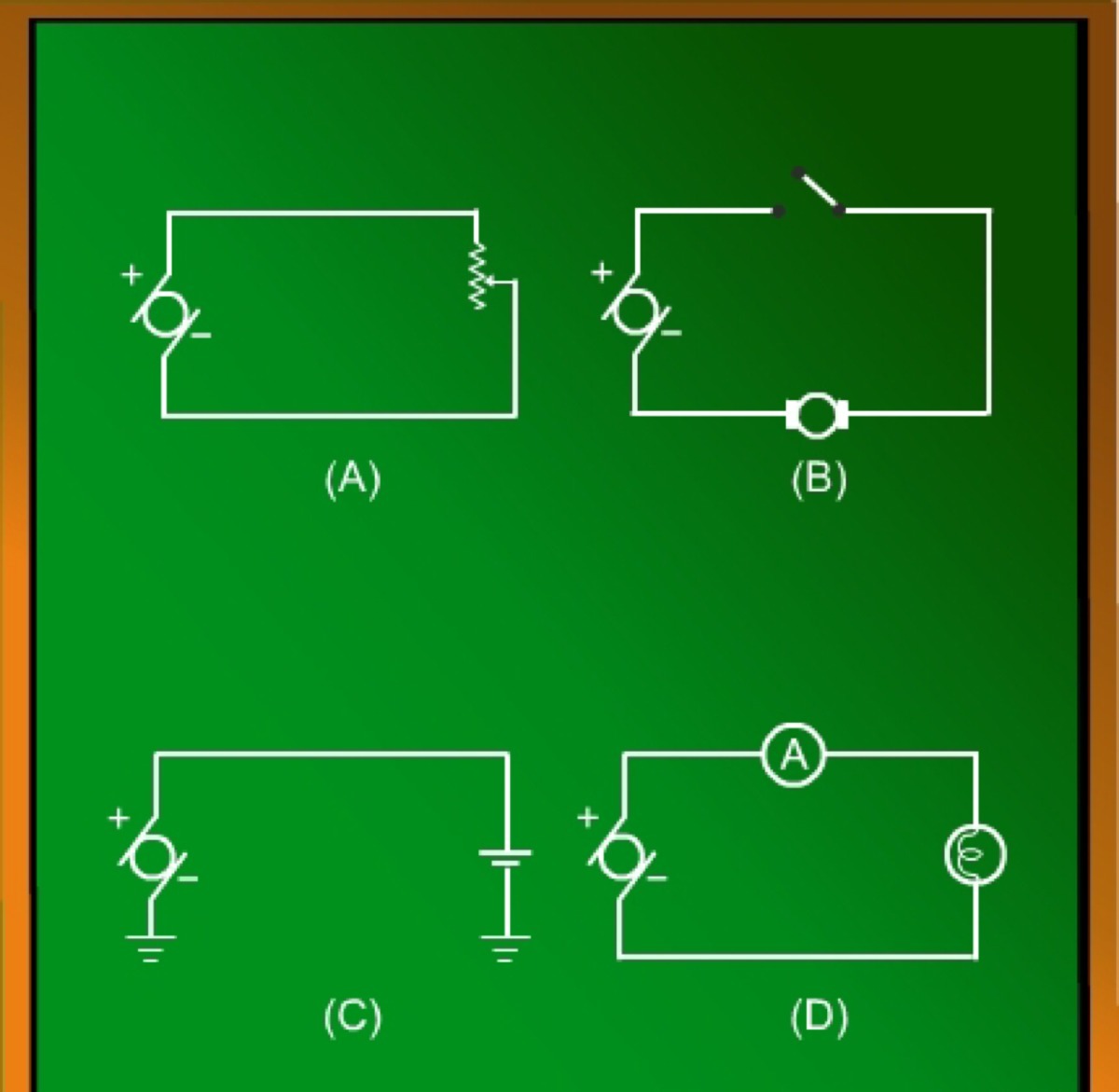

Which of these circuit schematics has a DC voltage source?

Physics

2 answers:

11Alexandr11 [23.1K]4 years ago

6 0

Answer: circuit C

Explanation:

A DC voltage source supplies current in single direction. It is represented by alternate small and big straight lines.

An Ac voltage source supplies alternating current i.e. the current changes direction.

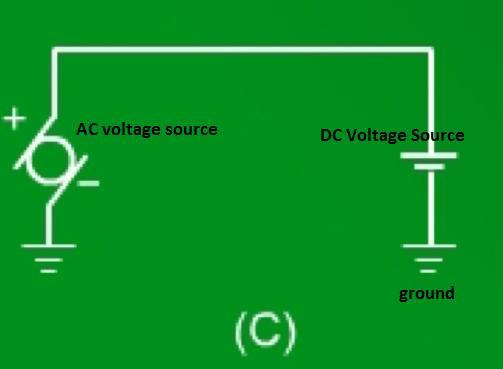

In the given circuit diagrams, only circuit C has a DC voltage source.

Olenka [21]4 years ago

3 0

Answer:
