Air enters the compressor of a regenerative gas-turbine engine at 300 K and 100 kPa, where it is compressed to 800 kPa and 580 K

. The regenerator has an effectiveness of 72%, and the air enters the turbine at 1200 K. For a turbine efficiency of 86%, draw the cycle on T-s diagram and find: a) Heat transfer in the regenerator. b) Thermal efficiency. (114.2kJ/kg,, 36%)

1 answer:

Bad White [126]3 years ago

3 0

Answer:

a) The amount of heat transfer in the regenerator, q = 114.12 kJ/kg

b) Thermal efficiency = 35.9%

Explanation:

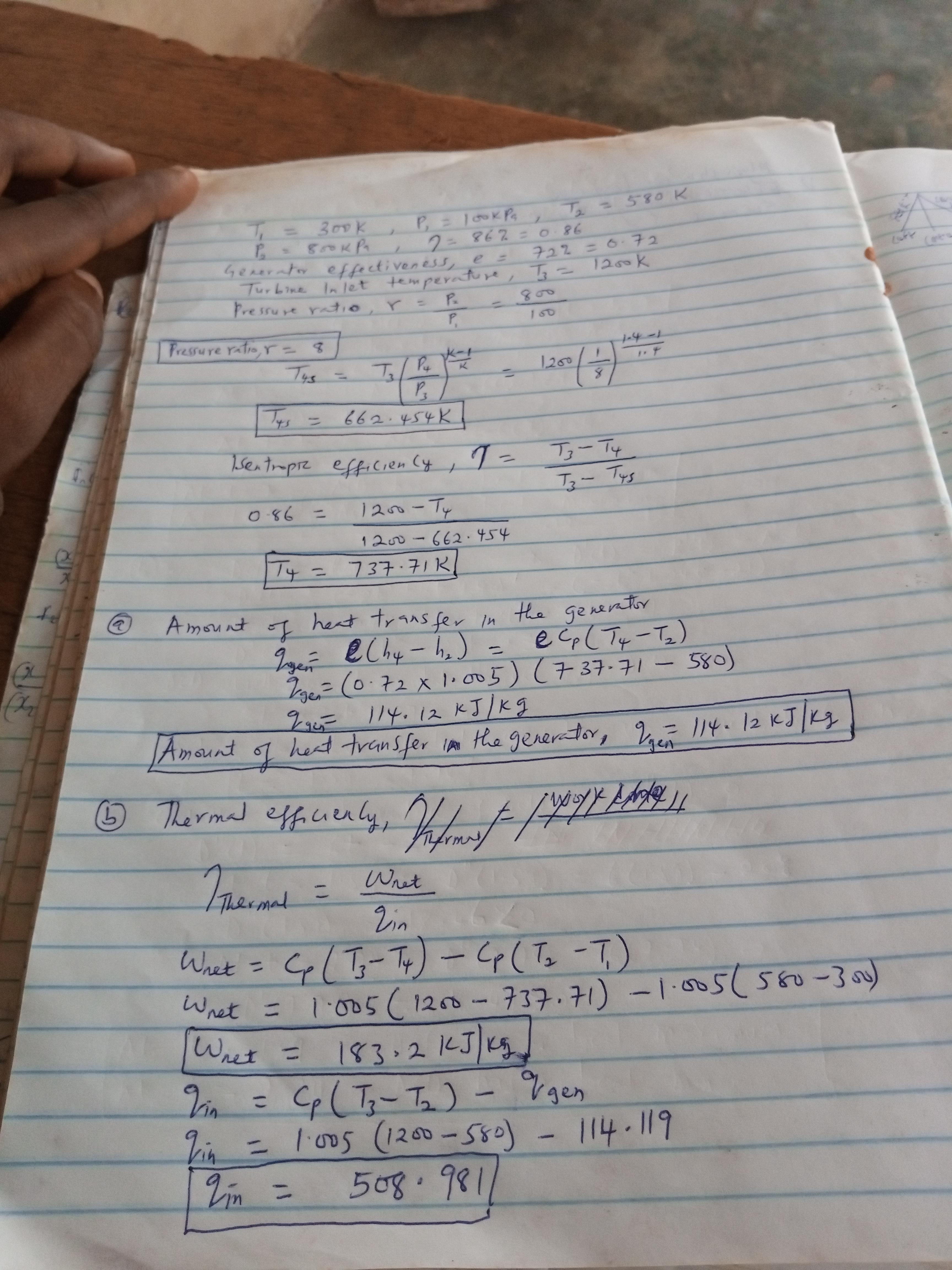

The calculations are neatly handwritten and attached as files to this solution for easiness of expression and clarity. The cycle is also drawn on the T - S diagram and included in the attached files. Check the files below for the complete calculation.

I hope this helps!
