Water discharging into a 10-m-wide rectangular horizontal channel from a sluice gate is observed to have undergone a hydraulic j

ump. The flow depth and velocity before the jump are 0.8m and 7m/s, respectively. Determine (a) the flow depth and the Froude number after the jump (b) the head loss (c) the dissipation ratio.

1 answer:

mezya [45]4 years ago

4 0

Answer:

A) flow depth after jump = 2.46 m, Froude number after jump = 0.464

B) head loss = 0.572 m

C) dissipation ratio = 0.173

Explanation:

Given data :

width of channel = 10-m

velocity of before jump (V1) = 7 m/ s

flow depth before jump (y1) = 0.8 m

A) determining the flow depth and the Froude's number after the jump

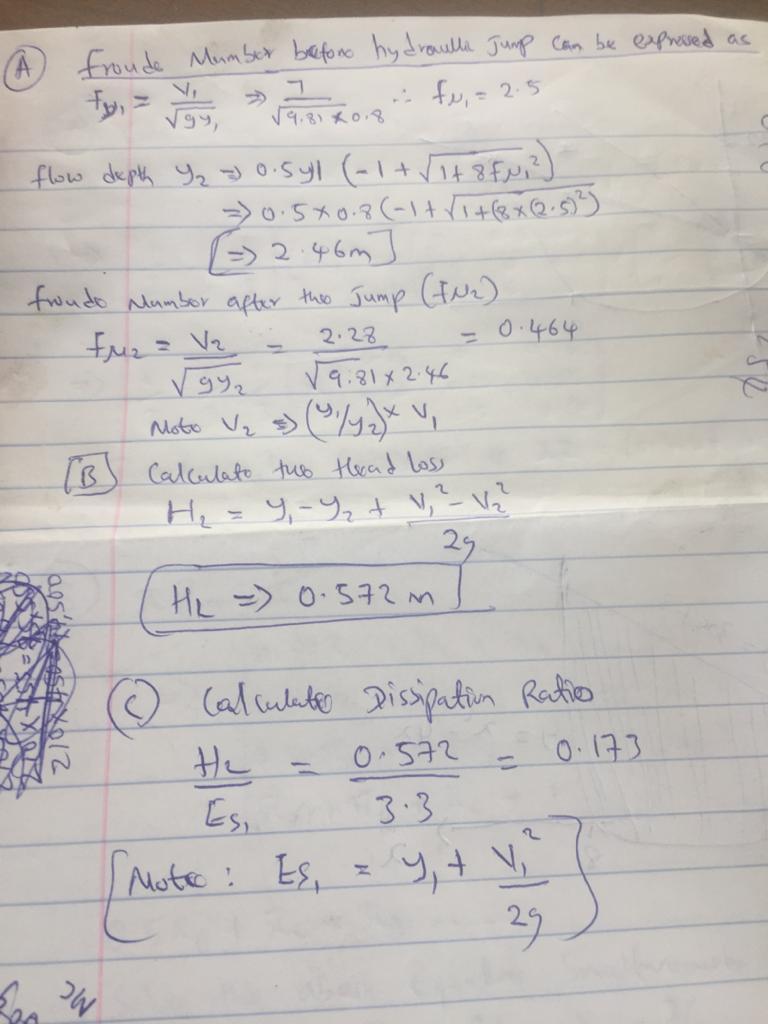

attached below is the solution

B) head loss

HL = Y1 -Y2 + $\frac{V_{1} ^2 - V_{2} ^2}{2g}$ = 0.8 - 2.46 + $\frac{49 - 5.1984}{19.62}$ = 0.572

C) dissipation ratio

HL / Es1 = 0.572 / 3.3 = 0.173

Es1 = 0.8 + $\frac{7^2}{2*9.81}$ = 0.173
