Answer:
30Ω
Explanation:
To calculate the equivalent resistance in the circuit, do the following:
Step 1:
10Ω and 20Ω are in series connection. Therefore their equivalent is: 10 + 20 = 30Ω
Step 2:
The equivalent resistance (30Ω) obtained from the above is in parallel connection with 30Ω resistance shown in the diagram above.
Therefore their equivalent is given by:
1/30 + 1/30 = 2/30 = 1/15.
Now invert to obtain the equivalent
Therefore, the equivalent is 15Ω
Step 3:
Determination of the overall equivalent of the resistance of the circuit.
The new equivalent resistance 15Ω obtained above is in series connection with 15Ω resistance in the diagram above.
Therefore their equivalent is given by:
15Ω + 15Ω = 30Ω
Therefore, the equivalent resistance in the circuit is 30Ω
The reason weather balloons are only partially inflated is to allow room for the helium in the balloon to expand.
Answer:
Explanation:
Given that:

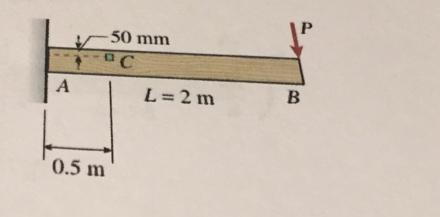

width b=100mm
depth h=150 mm
length L=2 m =200mm
point load P =500 N
Calculate moment of inertia
Point C is subjected to bending moment
Calculate the bending moment of point C
M = P x 1.5
= 500 x 1.5
= 750 N.m
M = 750 × 10³ N.mm
Calculate bending stress at point C
Calculate the first moment of area below point C
Now calculate shear stress at point C
Calculate the principal stress at point C
![\sigma_{1,2}=\frac{\sigma_x+\sigma_y}{2} \pm\sqrt{(\frac{\sigma_x-\sigma_y}{2} ) + (\tau)^2} \\\\=\frac{666.67+0}{2} \pm\sqrt{(\frac{666.67-0}{2} )^2 \pm(44.44)^2} \ [ \sigma_y=0]\\\\=333.33\pm336.28\\\\ \sigma_1=333.33+336.28\\=669.61KPa\\\\\sigma_2=333.33-336.28\\=-2.95KPa](https://tex.z-dn.net/?f=%5Csigma_%7B1%2C2%7D%3D%5Cfrac%7B%5Csigma_x%2B%5Csigma_y%7D%7B2%7D%20%5Cpm%5Csqrt%7B%28%5Cfrac%7B%5Csigma_x-%5Csigma_y%7D%7B2%7D%20%29%20%2B%20%28%5Ctau%29%5E2%7D%20%5C%5C%5C%5C%3D%5Cfrac%7B666.67%2B0%7D%7B2%7D%20%5Cpm%5Csqrt%7B%28%5Cfrac%7B666.67-0%7D%7B2%7D%20%29%5E2%20%5Cpm%2844.44%29%5E2%7D%20%5C%20%5B%20%5Csigma_y%3D0%5D%5C%5C%5C%5C%3D333.33%5Cpm336.28%5C%5C%5C%5C%20%5Csigma_1%3D333.33%2B336.28%5C%5C%3D669.61KPa%5C%5C%5C%5C%5Csigma_2%3D333.33-336.28%5C%5C%3D-2.95KPa)
Calculate the maximum shear stress at piont C
