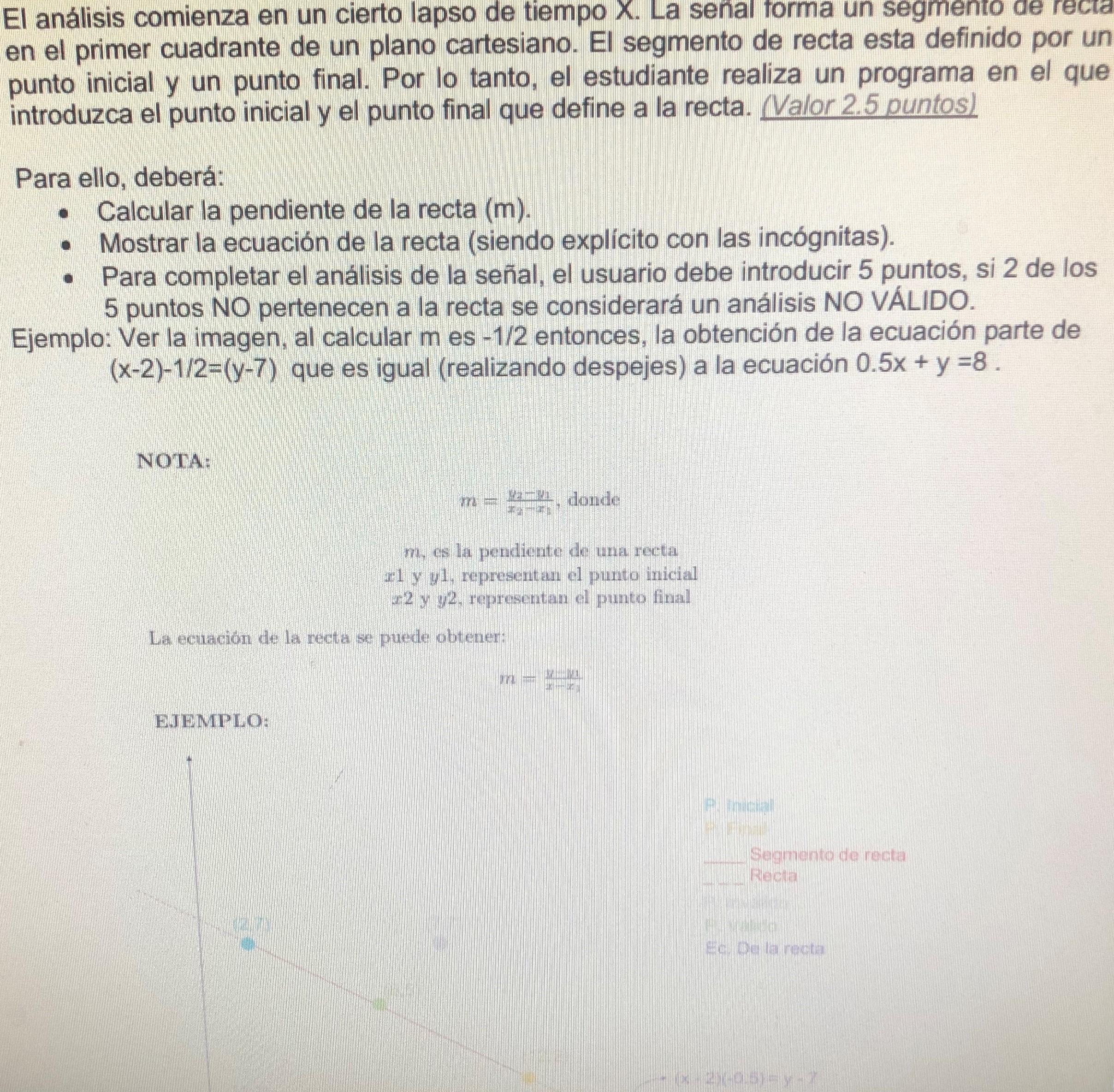

A Medical Bioengineering student is tasked with performing signal analysis.

Engineering

1 answer:

inna [77]4 years ago

7 0

Answer: I will ask my dad he knows

Explanation:

You might be interested in

What is Euler's equation?

igomit [66]

Answer:

$e^{ix} = cosx + i sinx$

Explanation:

In mathematics, Euler's formula is an equation in complex analysis, that gives a relationship between an exponential factor and the trigonometric functions.

The Euler equation is:

$e^{ix} = cosx + i sinx$

Here,

e - base of the natural logarithm

i - imaginary unit

x - argument given in radians

sin , cos - trigonometric functions sine and cosine respectively.

4 0

4 years ago

EJERCICIO 6

Ket [755]

Answer:

mnfokfnfi3or

Explanation:

can you translate it into english.....

8 0

3 years ago

Three tool materials (high-speed steel, cemented carbide, and ceramic) are to be compared for the same turning operation on a ba

Tpy6a [65]

Answer:

Among all three tools, the ceramic tool is taking the least time for the production of a batch, however, machining from the HSS tool is taking the highest time.

Explanation:

The optimum cutting speed for the minimum cost

$V_{opt}= \frac{C}{\left[\left(T_c+\frac{C_e}{C_m}\right)\left(\frac{1}{n}-1\right)\right]^n}\;\cdots(i)$

Where,

C,n = Taylor equation parameters

$T_h$ =Tool changing time in minutes

$C_e$ =Cost per grinding per edge

$C_m$ = Machine and operator cost per minute

On comparing with the Taylor equation $VT^n=C$ ,

Tool life,

$T= \left[ \left(T_t+\frac{C_e}{C_m}\right)\left(\frac{1}{n}-1\right)\right]}\;\cdots(ii)$

Given that,

Cost of operator and machine time $=\$40/hr=\$0.667/min$

Batch setting time = 2 hr

Part handling time: $T_h=2.5$ min

Part diameter: $D=73 mm$ $=73\times 10^{-3} m$

Part length: $l=250 mm=250\times 10^{-3} m$

Feed: $f=0.30 mm/rev= 0.3\times 10^{-3} m/rev$

Depth of cut: $d=3.5 mm$

For the HSS tool:

Tool cost is $20 and it can be ground and reground 15 times and the grinding= $2/grind.

So, $C_e=$ $\$20/15+2=\$3.33/edge$

Tool changing time, $T_t=3$ min.

$C= 80 m/min$

$n=0.130$

(a) From equation (i), cutting speed for the minimum cost:

$V_{opt}= \frac {80}{\left[ \left(3+\frac{3.33}{0.667}\right)\left(\frac{1}{0.13}-1\right)\right]^{0.13}}$

$\Rightarrow 47.7$ m/min

(b) From equation (ii), the tool life,

$T=\left(3+\frac{3.33}{0.667}\right)\left(\frac{1}{0.13}-1\right)\right]}$

$\Rightarrow T=53.4$ min

(c) Cycle time: $T_c=T_h+T_m+\frac{T_t}{n_p}$

where,

$T_m=$ Machining time for one part

$n_p=$ Number of pieces cut in one tool life

$T_m= \frac{l}{fN}$ min, where $N=\frac{V_{opt}}{\pi D}$ is the rpm of the spindle.

$\Rightarrow T_m= \frac{\pi D l}{fV_{opt}}$

$\Rightarrow T_m=\frac{\pi \times 73 \times 250\times 10^{-6}}{0.3\times 10^{-3}\times 47.7}=4.01 min/pc$

So, the number of parts produced in one tool life

$n_p=\frac {T}{T_m}$

$\Rightarrow n_p=\frac {53.4}{4.01}=13.3$

Round it to the lower integer

$\Rightarrow n_p=13$

So, the cycle time

$T_c=2.5+4.01+\frac{3}{13}=6.74$ min/pc

(d) Cost per production unit:

$C_c= C_mT_c+\frac{C_e}{n_p}$

$\Rightarrow C_c=0.667\times6.74+\frac{3.33}{13}=\$4.75/pc$

(e) Total time to complete the batch= Sum of setup time and production time for one batch

$=2\times60+ {50\times 6.74}{50}=457 min=7.62 hr$ .

(f) The proportion of time spent actually cutting metal

$=\frac{50\times4.01}{457}=0.4387=43.87\%$

Now, for the cemented carbide tool:

Cost per edge,

$C_e=$ $\$8/6=\$1.33/edge$

Tool changing time, $T_t=1min$

$C= 650 m/min$

$n=0.30$

(a) Cutting speed for the minimum cost:

$V_{opt}= \frac {650}{\left[ \left(1+\frac{1.33}{0.667}\right)\left(\frac{1}{0.3}-1\right)\right]^{0.3}}=363m/min$ [from(i)]

(b) Tool life,

$T=\left[ \left(1+\frac{1.33}{0.667}\right)\left(\frac{1}{0.3}-1\right)\right]=7min$ [from(ii)]

(c) Cycle time:

$T_c=T_h+T_m+\frac{T_t}{n_p}$

$T_m= \frac{\pi D l}{fV_{opt}}$

$\Rightarrow T_m=\frac{\pi \times 73 \times 250\times 10^{-6}}{0.3\times 10^{-3}\times 363}=0.53min/pc$

$n_p=\frac {7}{0.53}=13.2$

$\Rightarrow n_p=13$ [ nearest lower integer]

So, the cycle time

$T_c=2.5+0.53+\frac{1}{13}=3.11 min/pc$

(d) Cost per production unit:

$C_c= C_mT_c+\frac{C_e}{n_p}$

$\Rightarrow C_c=0.667\times3.11+\frac{1.33}{13}=\$2.18/pc$

(e) Total time to complete the batch $=2\times60+ {50\times 3.11}{50}=275.5 min=4.59 hr$ .

(f) The proportion of time spent actually cutting metal

$=\frac{50\times0.53}{275.5}=0.0962=9.62\%$

Similarly, for the ceramic tool:

$C_e=$ $\$10/6=\$1.67/edge$

$T_t-1min$

$C= 3500 m/min$

$n=0.6$

(a) Cutting speed:

$V_{opt}= \frac {3500}{\left[ \left(1+\frac{1.67}{0.667}\right)\left(\frac{1}{0.6}-1\right)\right]^{0.6}}$

$\Rightarrow V_{opt}=2105 m/min$

(b) Tool life,

$T=\left[ \left(1+\frac{1.67}{0.667}\right)\left(\frac{1}{0.6}-1\right)\right]=2.33 min$

(c) Cycle time:

$T_c=T_h+T_m+\frac{T_t}{n_p}$

$\Rightarrow T_m=\frac{\pi \times 73 \times 250\times 10^{-6}}{0.3\times 10^{-3}\times 2105}=0.091 min/pc$

$n_p=\frac {2.33}{0.091}=25.6$

$\Rightarrow n_p=25 pc/tool\; life$

So,

$T_c=2.5+0.091+\frac{1}{25}=2.63 min/pc$

(d) Cost per production unit:

$C_c= C_mT_c+\frac{C_e}{n_p}$

$\Rightarrow C_c=0.667\times2.63+\frac{1.67}{25}=$1.82/pc$

(e) Total time to complete the batch

$=2\times60+ {50\times 2.63}=251.5 min=4.19 hr$ .

(f) The proportion of time spent actually cutting metal

$=\frac{50\times0.091}{251.5}=0.0181=1.81\%$

3 0

4 years ago

The tolerance for a geometric can be easily identified by reading the _________.

baherus [9]

Answer:

Explanation:

4 0

3 years ago

Read 2 more answers

Risks in driving are normally less real than we think.<br> False<br> True

nekit [7.7K]

False as there are many risk in driving

7 0

3 years ago
