Question

Four +2 µC point charges are at the corners of a square of side 2 m. Find the potential at the center of the square (relative to zero potential at infinity) for each of the following conditions.(a) All the charges are positive(b) Three of the charges are positive and one is negative(c) Two are positive and two are negative

Answer 1

Answer:

(a) 51428.59 J/C

(b) 25714.29 J/C

(c) 0 J/C

Explanation:

Parameters given:

Q1 = 2 * 10^-6 C

Q2 = 2 * 10^-6 C

Q3 = 2 * 10^-6 C

Q4 = 2 * 10^-6 C

=> Q1 = Q2 = Q3 = Q4 = Q

Side of the square = 2m

The center of the square is the midpoint of the diagonals, i.e. Using Pythagoras theorem:

BD² = 2² + 2²

BD² = 8

BD = √(8) = 2.8m

OD = 1.4m

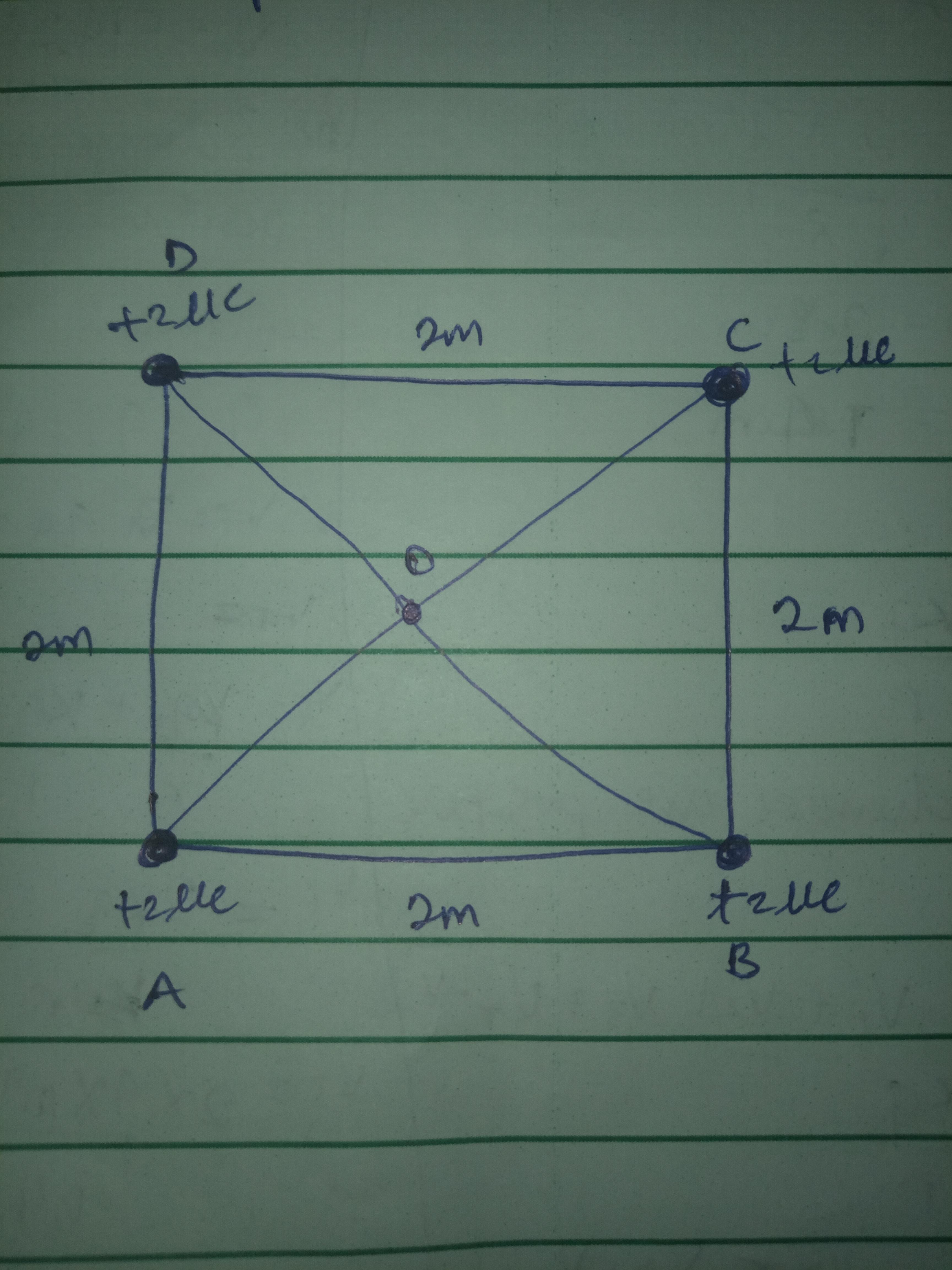

(The attached diagram explains better)

Hence, the distance between the center and each point charge, r, is 1.4m.

Electric Potential, V = kQ/r

k = Coulombs constant

(a) If all charges are positive:

V(Total) = V1 + V2 + V3 + V4

V1 = Potential due to Q1

V2 = Potential due to Q2

V3 = Potential due to Q3

V4 =Potential due to Q4

Since Q1 = Q2 = Q3 = Q4 = Q

=> V1 = V2 = V3 = V4

=> V(Total) = 4V1

V  = (4 * 9 * 10^9 * 2 * 10^-6)/1.4

V = 51428.59J/C

(b) If 3 charges are positive and 1 is negative:

Since Q1 = Q2 = Q3 = Q

and Q4 = -Q

The total potential becomes:

V(Total) = V1 + V2 + V3 - V4

Since V1, V2, V3 and V4 have the same value,

V(Total) = V1 + V2

V(Total) = 2V1

V(Total) = (2 * 9 * 10^9 * 2 * 10^-6)/1.4

V(Total) = 25174.29 J/C

(c) Two charges are positive and two are negative:

Since Q1 = Q2  = Q

and Q3 = Q4 = -Q

The total potential becomes:

V(Total) = V1 + V2 - V3 - V4

Since V1, V2, V3 and V4 have the same value,

V(Total)  = 0 J/C
