Nookie1986 [14]
4 years ago
6

Estimate the design-stage uncertainty in determining the voltage drop across an electric heating element. The device has a nomin

al resistance of 30 V and power rating of 500 W. Available is an ohmmeter (accuracy: within 0.5%; resolution: 1 V) and ammeter (accuracy: within 0.1%; resolution: 100 mA). Recall E ¼ IR.

Engineering
1 answer:
Volgvan4 years ago
3 0

Answer:

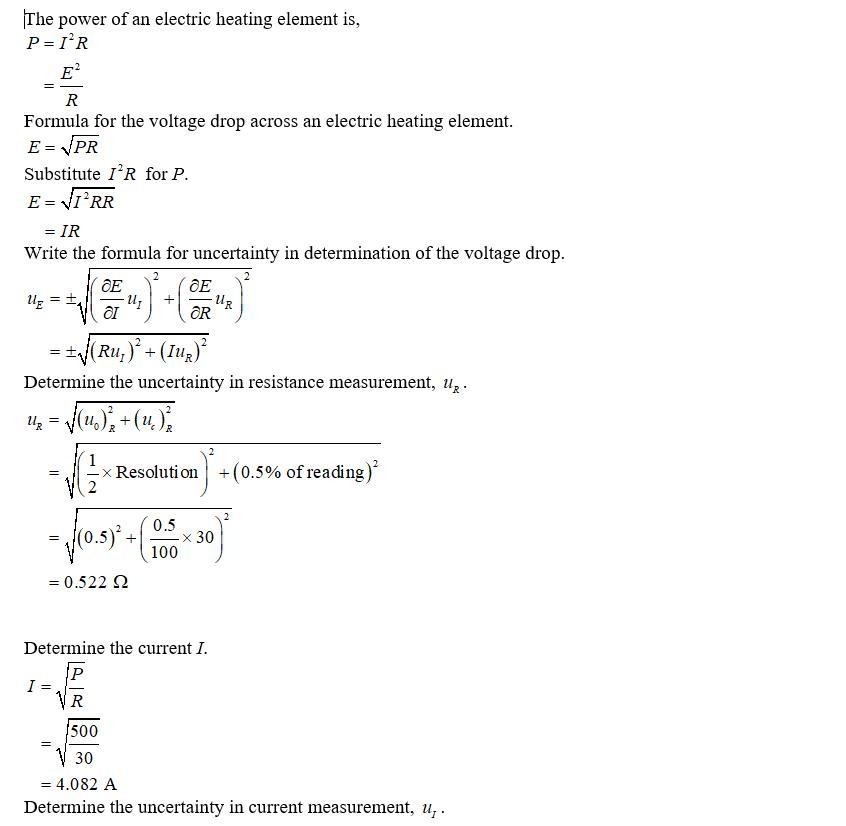

Find the attachment for solution

Note: The resistance is measured in ohms (Ω). In the question Ω will replace V, where ever the resistance unit is required .
