Andrei [34K]
3 years ago
5

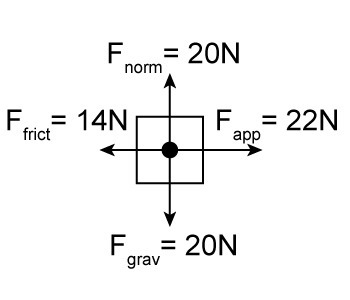

What is the net force on this object?

Physics
2 answers:
Anna35 [415]3 years ago
3 0
:D HI YOUR ANSWER WOULD BE 8 NEWTONS TO DA RIGHT
22N to right + 14N to left
Molodets [167]3 years ago
3 0

Answer:

8 Newtons

Explanation:

Net force is the vector sum of forces acting on a particle or body. It can also be regarded as a single force replaces the effect of the original forces on the particle's motion.

We calculate the net force, which is the the vector sum of all forces acting on an object

Given

F, norm = 20N

F, grav = 20N

F,app = 22N

F, frict = 14N

The net force here as stated earlier is calculated as sum of upward and forward forces minus sum of downward and backward forces.

So, Net force = (F, norm + F,app) - (F, frict + F, grav)

Substitute each value

Net force = (20N + 22N) - (20N + 14N)

Net force = 42N - 34N

Net force = 8N

Hence, the net force on the object is 8 Newtons

You might be interested in
Two cars having different weights are traveling on a level surface at different constant velocities. Within the same time interv
GuDViN [60]

I think you're saying that once you start pushing on the cars, you want to be able to stop each one in the same time.

This is sneaky.  At first, I thought it must be both 'c' and 'd'.  But it's not
kinetic energy, for reasons I'm not ambitious enough to go into.
(And besides, there's no great honor awarded around here for explaining
why any given choice is NOT the answer.)

The answer is momentum.

Momentum is (mass x speed).  Change in momentum is (force x time).

No matter the weight (mass) or speed of the car, the one with the greater
momentum is always the one that will require the greater (force x time)
to stop it.  If the time is the same for any car, then more momentum
will always require more force.


4 0
3 years ago
A man walks 30 m to the west than 5 m to the east in 45 seconds.
harkovskaia [24]

Answer:

35 m

0.56 m/s west

Explanation:

A) Total distance is the length of the path taken.

30 m + 5 m = 35 m

B) Velocity is displacement over time.  Displacement is the difference between the final position and the initial position.

If west is -x, and east is +x, then:

Δx = -30 m + 5 m

Δx = -25 m

v = Δx / t

v = -25 m / 45 s

v = -0.56 m/s

v = 0.56 m/s west

4 0
3 years ago
Two blocks, A and B, are connected by a rope. A second rope is connected to block B and a steady, horizontal tension force of T
Oksanka [162]

Answer:

40 N

Explanation:

We are given that

Speed of system is constant

Therefore, acceleration=a=0

Tension applied on block B=T=50 N

Friction force=f=10 N

We have to find the friction force acting on block A.

Let T' be the tension in string connecting block A and block B and friction force on block A be f'.

For Block B

T-f-T'=m_Ba

Where m_B=Mass of block B

Substitute the values

50-10-T'=m_B\times 0=0

T'==40 N

For block A

T'-f'=m_Aa

Where m_A=Mass of block A

Substitute the values

40-f'=m_A\times 0=0

f'=40 N

Hence, the friction force acting on block A=40 N

3 0
3 years ago
Statistical time division multiplexing does not require the capacity of the circuit to be equal to the sum of the combined circu
aleksklad [387]

Answer:

The answer is True

Explanation:

Statistical Multiplexing is considered an example of communication link sharing which makes it comparable to DBA (Dynamic Bandwidth Allocation). Here, communication channels are broken down into data streams to optimize the communication process.

In Statistical Time-division Multiplexing, time slots are allocated to data streams for communication optimization. This method makes sure that no time slot or bandwidth is wasted.

Hence, the sum of combined circuits must not be equal to the capacity of the circuit to work effectively.

7 0
3 years ago
Dams hold collected water back from flowing at their normal rate. What type of energy is in the collected water above the dam? c
Andreyy89
It would be mechanical potential energy.
8 0
3 years ago
