Question

A one-dimensional plane wall of thickness 2L=100mm experiences uniform thermal energy generation of q dot=1000 W/m^3 and is convectively cooled at x=+-50mm by an ambient fluid characterized by T infinity=20degreesC. If the steady-state temperature distribution within the wall is T(x)=a(L^2-x^2)+b where a=10 degrees C/m^2 and b=30 degrees C, what is the thermal conductivity of the wall? What is the value of the convection heat transfer coefficient, h?

Answer 1

Answer:

note:

solution is attached in word form due to error in mathematical equation. furthermore i also attach Screenshot of solution in word due to different version of MS Office please find the attachment

Download docx

Answer 2

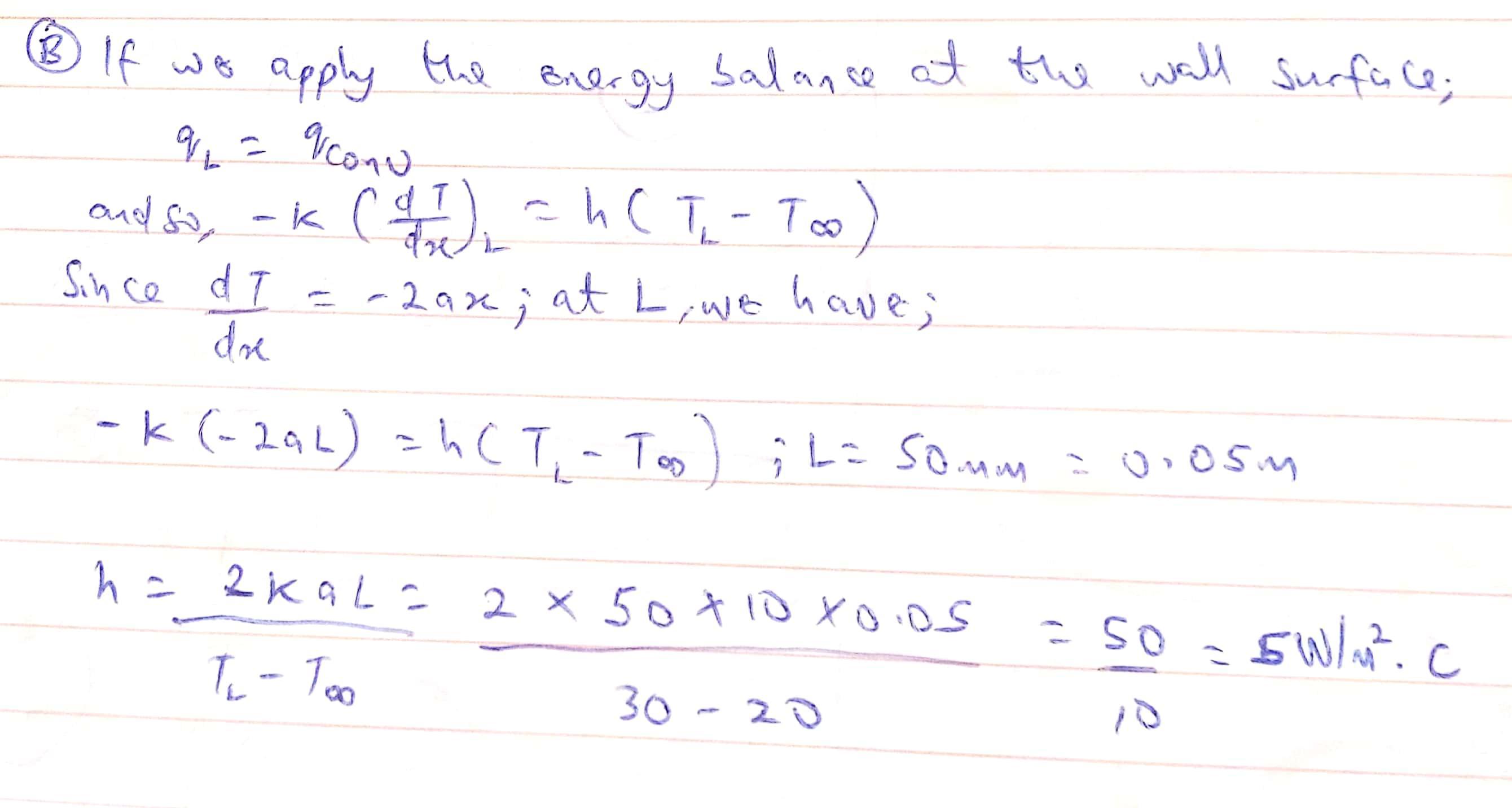

Answer:

A) Thermal conductivity of wall = 50 W/m.c

B) value of the convection heat transfer coefficient, h = 5 W/m².C

Explanation:

I've attached all explanations
