State the kinematic quantity that is equivalent to the slope of a position-time graph
1 answer:

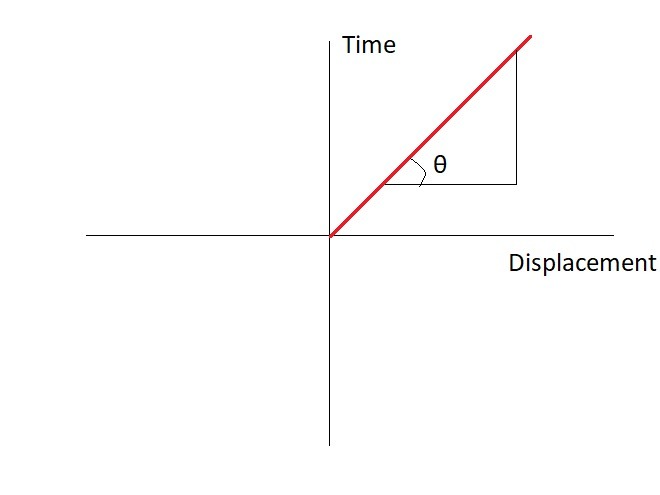

The figure shows the arrangement of given data.
The displacement is considered along X direction and time along Y direction.
The slope of the graph is given by tan θ
So tan θ = Δx/Δt = Velocity between those two points considered for finding slope of graph.
So slope of position time is graph is equivalent to kinematic quantity Velocity.
You might be interested in
Answer:
a)
b)
Explanation:
From the question we are told that:
Density
Velocity of wind
Dimension of rectangle:50 cm wide and 90 cm
Drag coefficient
a)
Generally the equation for Force is mathematically given by
Therefore Torque
b)
Generally the equation for torque due to weight is mathematically given by
Where
Therefore
Answer:
13.7%
Explanation:
Given that,
Heat absorbed by the engine = 97.2 kJ
Heat exhausted by the engine in each cycle = 83.8 kJ
We need to find the efficiency of the engine. It is calculated by the formula.
so, the efficiency of heat engine is 13.7%.
Answer:
The time it takes the proton to return to the horizontal plane is 7.83 X10⁻⁷ s
Explanation:
From Newton's second law, F = mg and also from coulomb's law F= Eq
Dividing both equations by mass;
F/m = Eq/m = mg/m, then
g = Eq/m --------equation 1
Again, in a projectile motion, the time of flight (T) is given as
T = (2usinθ/g) ---------equation 2
Substitute in the value of g into equation 2
Charge of proton = 1.6 X 10⁻¹⁹ C
Mass of proton = 1.67 X 10⁻²⁷ kg
E is given as 400 N/C, u = 3.0 × 10⁴ m/s and θ = 30°
Solving for T;
T = 7.83 X10⁻⁷ s
