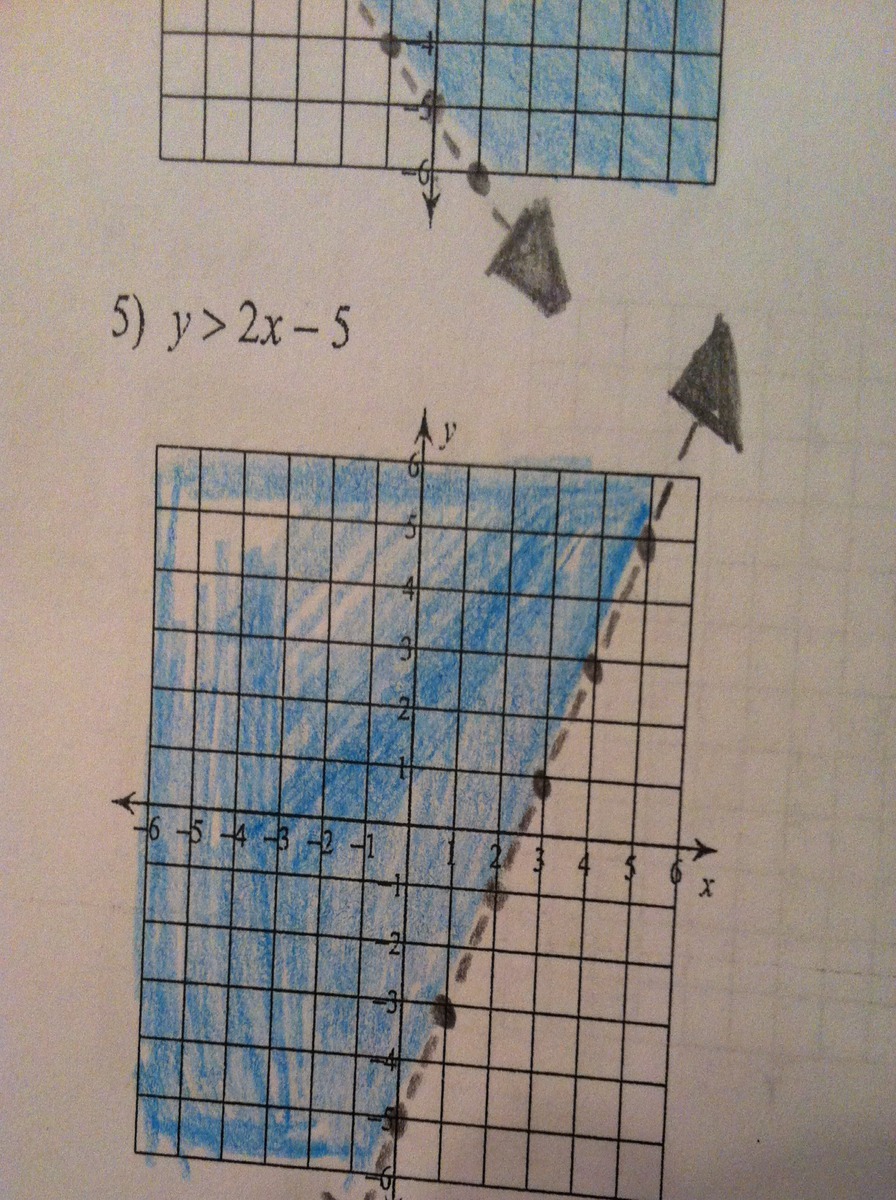

Did I graph this right or is the shaded part supposed to be on the other side. Please help me. I'm confused

Mathematics

1 answer:

Rama09 [41]3 years ago

6 0

Yeah, it's on the correct side
if you test the point (0,0), you'll get the inequality 0>-5, which is true, so that side is shaded.

You might be interested in

Find the volume and surface area of the composite figure. Give your answer in terms of π.

irakobra [83]

Answer:

V = 240π cm^3 , S= 168π cm^2

Step-by-step explanation:

The given figure is a combination of hemi-sphere and a cone

Volume:

For volume

r = 6 cm

h = 8 cm

$Volume\ of\ cone = \frac{1}{3}\pi r^2h\\= \frac{1}{3}\pi (6)^2*8\\=\frac{1}{3}\pi *36*8\\=\frac{288}{3}\pi\\=96\pi cm^3 \\\\Volume\ of\ hemisphere = \frac{2}{3}\pi r^3\\=\frac{2}{3}*\pi * (6)^3\\=\frac{2}{3}*\pi *216\\=\frac{432}{3}\\=144\pi cm^3 \\\\Total\ Volume= Volume\ of\ cone + Volume\ of\ hemisphere\\= 96\pi +144\pi \\=240\pi cm^3$

Surface Area:

For this particular figure we have to consider the lateral area of the cone shape and surface area of the hemisphere

We have to find the lateral height

$l = \sqrt{r^2+h^2}\\ l = \sqrt{(6)^2+(8)^2} \\l= \sqrt{36+64}\\ l = \sqrt{100}\\l = 10cm\\\\Surface\ area\ of\ cone = \pi rl\\= \pi (6)(10)\\=\pi *60\\=60 \pi\ cm^2\\\\Surface\ area\ of\ hemisphere = 2\pi r^2\\= 2 \pi * (6)\\= 2 \pi *36\\= 72 \pi\ cm^2\\\\Total\ surface\ Area = Surface\ area\ of\ cone + Surface\ area\ of \ hemisphere\\= 60 \pi + 72 \pi\\=132 \pi\ cm^2$
