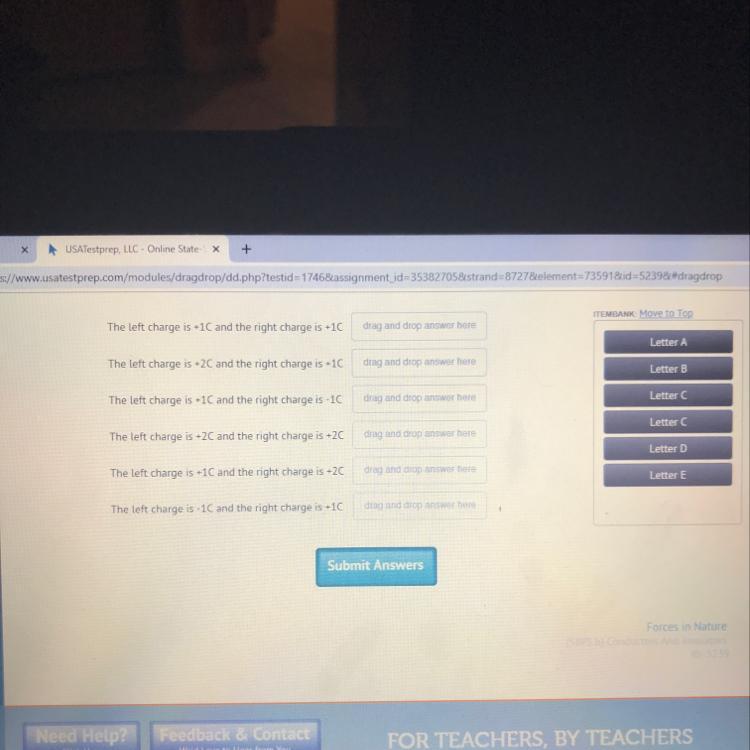

The left charge is +1C and the right charge is +1C

Physics

1 answer:

PolarNik [594]3 years ago

6 0

<h2><em>Answer:</em><u><em> C D E C B A</em></u></h2><h2><em></em></h2><h2><em>Explanation: this is the answer because if you look at the image and then think back at the questions you can relate it to the image i also did this and got a 100 % on it the first time! Your welcome for the help!</em></h2>

You might be interested in

An ocean thermal energy conversion system is being proposed for electric power generation. Such a system is based on the standar

defon

Answer:

Explanation:

Dear Student, this question is incomplete, and to attempt this question, we have attached the complete copy of the question in the image below. Please, Kindly refer to it when going through the solution to the question.

To objective is to find the:

(i) required heat exchanger area.

(ii) flow rate to be maintained in the evaporator.

Given that:

water temperature = 300 K

At a reasonable depth, the water is cold and its temperature = 280 K

The power output W = 2 MW

Efficiency $\zeta$ = 3%

where;

$\zeta = \dfrac{W_{out}}{Q_{supplied }}$

$Q_{supplied } = \dfrac{2}{0.03} \ MW$

$Q_{supplied } = 66.66 \ MW$

However, from the evaporator, the heat transfer Q can be determined by using the formula:

Q = UA(L MTD)

where;

$LMTD = \dfrac{\Delta T_1 - \Delta T_2}{In (\dfrac{\Delta T_1}{\Delta T_2} )}$

Also;

$\Delta T_1 = T_{h_{in}}- T_{c_{out}} \\ \\ \Delta T_1 = 300 -290 \\ \\ \Delta T_1 = 10 \ K$

$\Delta T_2 = T_{h_{in}}- T_{c_{out}} \\ \\ \Delta T_2 = 292 -290 \\ \\ \Delta T_2 = 2\ K$

$LMTD = \dfrac{10 -2}{In (\dfrac{10}{2} )}$

$LMTD = \dfrac{8}{In (5)}$

LMTD = 4.97

Thus, the required heat exchanger area A is calculated by using the formula:

$Q_H = UA (LMTD)$

where;

U = overall heat coefficient given as 1200 W/m².K

$66.667 \times 10^6 = 1200 \times A \times 4.97 \\ \\ A= \dfrac{66.667 \times 10^6}{1200 \times 4.97} \\ \\ \mathbf{A = 11178.236 \ m^2}$

The mass flow rate:

$Q_{H} = mC_p(T_{in} -T_{out} ) \\ \\ 66.667 \times 10^6= m \times 4.18 (300 -292) \\ \\ m = \dfrac{ 66.667 \times 10^6}{4.18 \times 8} \\ \\ \mathbf{m = 1993630.383 \ kg/s}$
