Question

Name the separation technique used to separate the constituents of the mixture of miscible liquids. Draw a labelled diagram of the process for separating mixture of alcohol and water.

Answer 1

Answer:

           Distillation

Explanation:

                   Miscible solvents are separated from each other through a process called as Distillation. This technique works on the principle of difference in the boiling point of the solvents that are forming the miscible solution.

Example:

             Water and Ethanol are two miscible solvents. They have different boiling points.

                Ethanol  =  78.37 °C

                 Water  =  100 °C

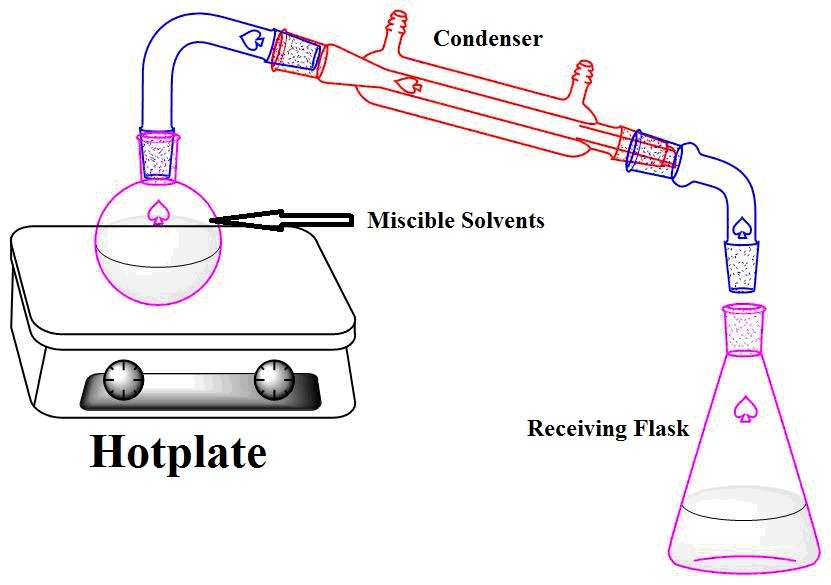

In a experimental setup attached below, water and ethanol mixture is taken in a round bottom flask and heated on a hotplate. Ethanol having less boiling point than water boils first and evaporates. The Ethanol vapors are condensed as they passes through the condenser. In this way the ethanol is separated first and water having greater boiling point is left behind.
