faltersainse [42]
4 years ago
12

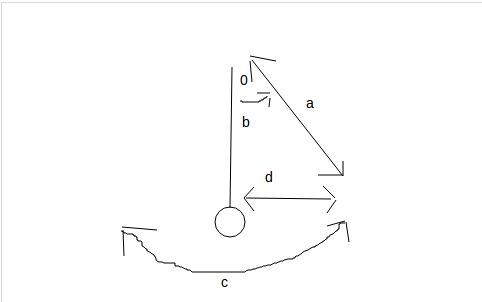

In the figure, which arrow represents the amplitude of the pendulum's motion?

Physics
2 answers:
hram777 [196]4 years ago
8 0
D is the answer, hope this helps. c:
skad [1K]4 years ago
3 0
That's arrow 'd' in the drawing.
You might be interested in
Yosef is playing with different kinds of rubber bands. Some are very narrow and some are quite wide. Yosef is curious about the
kari74 [83]

Answer:

He could have many different hypothesis, but here is one.

Explanation:

If rubber bands are wider, then the rubber bands will stretch further, because the wider a rubber band is the stronger it is.

4 0
3 years ago
Read 2 more answers
A 2.0-kg mass is oscillating about the origin at 24 rad/s. The amplitude of the oscillations is 0.040 m. At what position is the
Darya [45]

Answer:

0.0327 m

Explanation:

m = 2 kg

ω = 24 rad/s

A = 0.040 m

Let at position y, the potential energy is twice the kinetic energy.

The potential energy is given by

U = 1/2 m x ω² x y²

The kinetic energy is given by

K = 1/2 m x ω² x (A² - y²)

Equate both the energies as according to the question

1/2 m x ω² x y² = 2 x 1/2 m x ω² x (A² - y²)

y² = 2 A² - 2 y²

3y² = 2A²

y² = 2/3 A²

y = 0.82 A = 0.82 x 0.040 = 0.0327 m

4 0
3 years ago
To test the hypothesis above, you will observe the changes during the experiment. To do this, you will use these observations to
wariber [46]
The answer to this is initial appearance and the second is final appearance.
4 0
3 years ago
Read 2 more answers
(a) A long, straight solenoid has N turns, uniform cross-sectional area A, and length l. Show that the inductance of this soleno
Paul [167]

Answer:

a. L = μ₀AN²/l b. 1.11 × 10⁻⁷ H

Explanation:

a. The magnetic flux through the solenoid, Ф = NAB where N = number of turns of solenoid, A = cross-sectional area of solenoid and B = magnetic field at center of solenoid = μ₀ni where μ₀ = permeability of free space, n = number of turns per unit length = N/l where l = length of solenoid and i = current in solenoid.

Also, Li = Ф where L = inductance of solenoid.

So, Li = NAB

= NA(μ₀ni)

= NA(μ₀Ni/l)

Li = μ₀AN²i/l

dividing both sides by i, we have

So, L = μ₀AN²/l

b. The self- inductance, L = μ₀AN²/l where

A = πd²/4 where d = diameter of solenoid = 0.150 cm = 1.5 × 10⁻³ m, N = 50 turns, μ₀ = 4π × 10⁻⁷ H/m and l = 5.00 cm = 5 × 10⁻² m

So, L = μ₀AN²/l

L = μ₀πd²N²/4l

L = 4π × 10⁻⁷ H/m × π(1.5 × 10⁻³ m)²(50)²/(4 × 5 × 10⁻² m)

L = 11,103.3 × 10⁻¹¹ H

L = 1.11033 × 10⁻⁷ H

L ≅ 1.11 × 10⁻⁷ H

6 0
3 years ago
A rock has a mass of 25kg. The acceleration due to gravity is 10m/s and the height of the rock is 42 m. Find the potential energ
alisha [4.7K]

Answer:

 The potential energy of the rock = 10.5 kN

Explanation:

 Mass of rock = 25 kg

 Acceleration due to gravity = 10 m/s²

 Height = 42 m

 Potential energy, PE = mgh, where m is the mass, g is acceleration due to gravity and h is the height.

 PE = 25 x 10 x 42 = 10500 N = 10.5 kN

 The potential energy of the rock = 10.5 kN

7 0
3 years ago
Read 2 more answers
