Liula [17]
3 years ago
11

Problem (2) A 16 kg cylinder, initially at rest, is held by a cord connected to a grooved drum whose mass is 20 kg. The drum has

an outer radius �% = 250 mm and an inner radius of �& = 160 mm. If the drum experiences a constant frictional moment of 3 N∙m at O, how far has the cylinder dropped when it has a downward velocity of 2 m/s? Neglect the mass of the cord and treat the drum as a thin disk. Use the Principle of Work and Energy.

Physics
1 answer:
Mice21 [21]3 years ago
4 0

Answer:

Explanation:

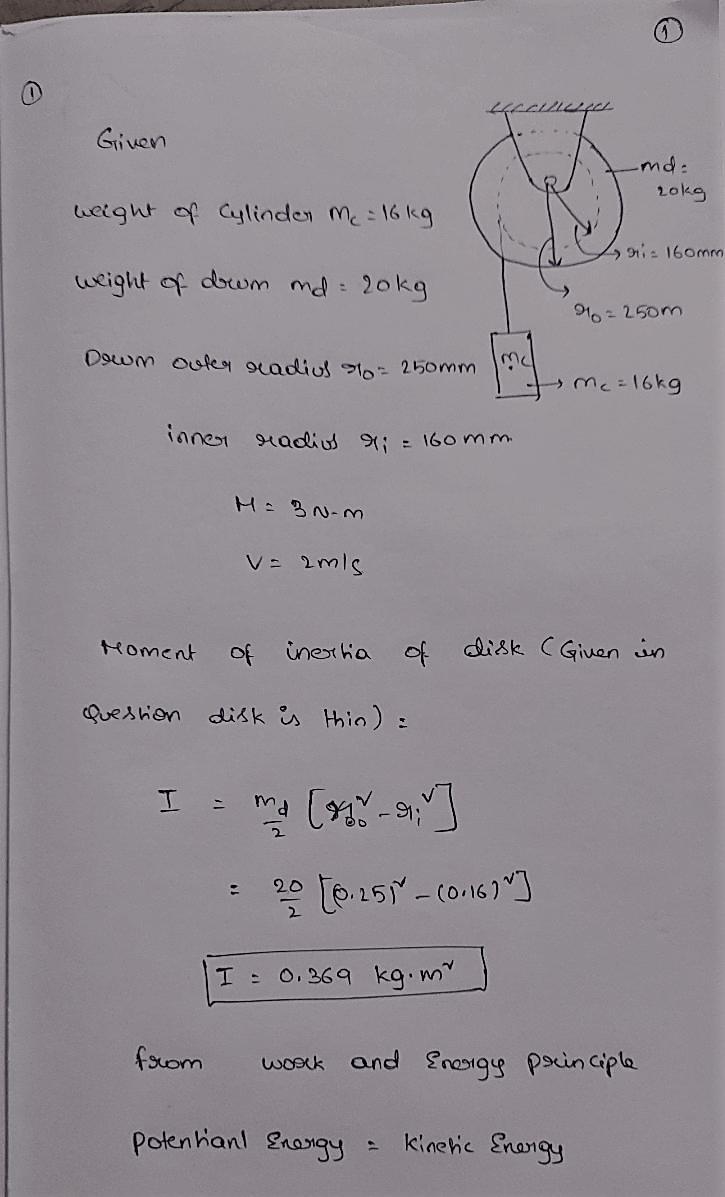

The solution to the problem is given in the pictures attached below; the three pictures explains the problem fully and I hope it helps you. Thank you

You might be interested in
A high diver dives into a swimming pool. His potential energy at the top is 10,000 J (relative to the surface of the pool). What
Semmy [17]

Answer:

Kinetic energy of diver at 90% of the distance to the water is 9000 J

Explanation:

Let d is the distance between the position of the diver and surface of the pool.

Initially, the diver is at rest and only have potential energy which is equal to 10000 J.

As the diver dives towards the pool, its potential energy is converting into kinetic energy due to law of conservation of energy, as total energy of the system remains same.

Energy before diving = Energy during diving

(Potential Energy + Kinetic Energy) =  (Kinetic Energy +  Potential Energy)

When the diver reaches 90% of the distance to the water, its kinetic energy

is 90% to its initial potential energy, as its initial kinetic is zero,i.e.,

K.E. = \frac{90}{100}\times10000

K.E. = 9000 J

6 0
3 years ago
In a certain chemical process, a lab technician supplies 292 J of heat to a system. At the same time, 68.0 J of work are done on
vekshin1

Answer:

The increase in the internal energy of the system is 360 Joules.

Explanation:

Given that,

Heat supplied to a system, Q = 292 J

Work done on the system by its surroundings, W = 68 J

We need to find the increase in the internal energy of the system. It can be given by first law of thermodynamics. It is given by :

dE=dQ+dW\\\\dE=292\ J+68\ J\\\\dE=360\ J

So, the increase in the internal energy of the system is 360 Joules. Hence, this is the required solution.

3 0
3 years ago
A 45.0-kg sample of ice is at 0.00°C. How much heat is needed to melt it? For water, Lf=334 kJ/kg and Lv=2257 kJ/kg
Aleonysh [2.5K]

Heat required to change the phase of ice is given by

Q = m* L

here

m = mass of ice

L = latent heat of fusion

now we have

m = 45 kg

L = 334 KJ/kg

now by using above formula

Q = 45 * 334 * 10^3

Q = 1.5 * 10^7 J

In KJ we can convert this as

Q = 1.5 * 10^4 kJ

so the correct answer is D option

7 0
3 years ago
Read 2 more answers
Describe a life cycle of a star
vagabundo [1.1K]
Planetary Nebula are the outer layers of a star that are lost when the star changes from a red giant to a white dwarf. A star is a luminous globe of gas producing its own heat and light by nuclear reactions (nuclear fusion). They are born from nebulae and consist mostly of hydrogen and helium gas. Is this what you needed?
8 0
3 years ago
Read 2 more answers
The graph shows the displacement of a mouse
hram777 [196]

The farthest position the mouse reaches inside the tunnel is 4 meters into the tunnel.

From the graph,

The positions reached after,

5 s = 4 m

10 s = 2 m

20 s = 2 m

35 s = 3 m

40 s = 0 m

So the farthest position here is 4 m into the tunnel.

The rate of change of positions is displacement. So displacement will be change in initial and final positions divided by change in time.

s = Δx / Δt

Therefore, the farthest position the mouse reaches inside the tunnel is 4 meters into the tunnel.

To knw more about displacement

brainly.com/question/28609499

#SPJ1

5 0
1 year ago
