Question

Two conductors are made of the same material and have the same length. Conductor A is a solid wire of diameter 1.0 mm.

Answer 1

Answer:

R_a/R_b=3

Explanation:

The resistance in terms of the area and the length of the wire is given by:

R=pL/A

if we have two wires, the first one is a solid wire with a diameter of d_A = 1 x 10^-3 m, and the second one is a hollow wire with inner diameter of d_B,i = 1 x 10^-3 m and outer diameter of d_B,σ= 2 x 10^-3 m, so the cross sectional area of the first wire is:

A_a=πr^2_a

A_a=πd^2_A/4

hence the resistance is:

R_a=(4*p*L_a)/π*d^2_A                                     (1)

the area of the second wire is:

A_b=π*r^2_B,σ-π*r^2_B,i

A_b=π/4(d^2_B,σ-d^2_B,i)

hence the resistance is:

R_b=(4*p*L_b)/π(d^2_B,σ-d^2_B,i)                   (2)

To find the ratio between the resistances R_a/R_b, we divide (1) over (2) to get:

R_a/R_b=(d^2_B,σ-d^2_B,i)*L_a/(d^2_a*L_b)

but the wires have the same length, therefore:

R_a/R_b=(d^2_B,σ-d^2_B,i)/(d^2_a)

substitute with the given values to get:

R_a/R_b=3

Answer 2

Explanation:

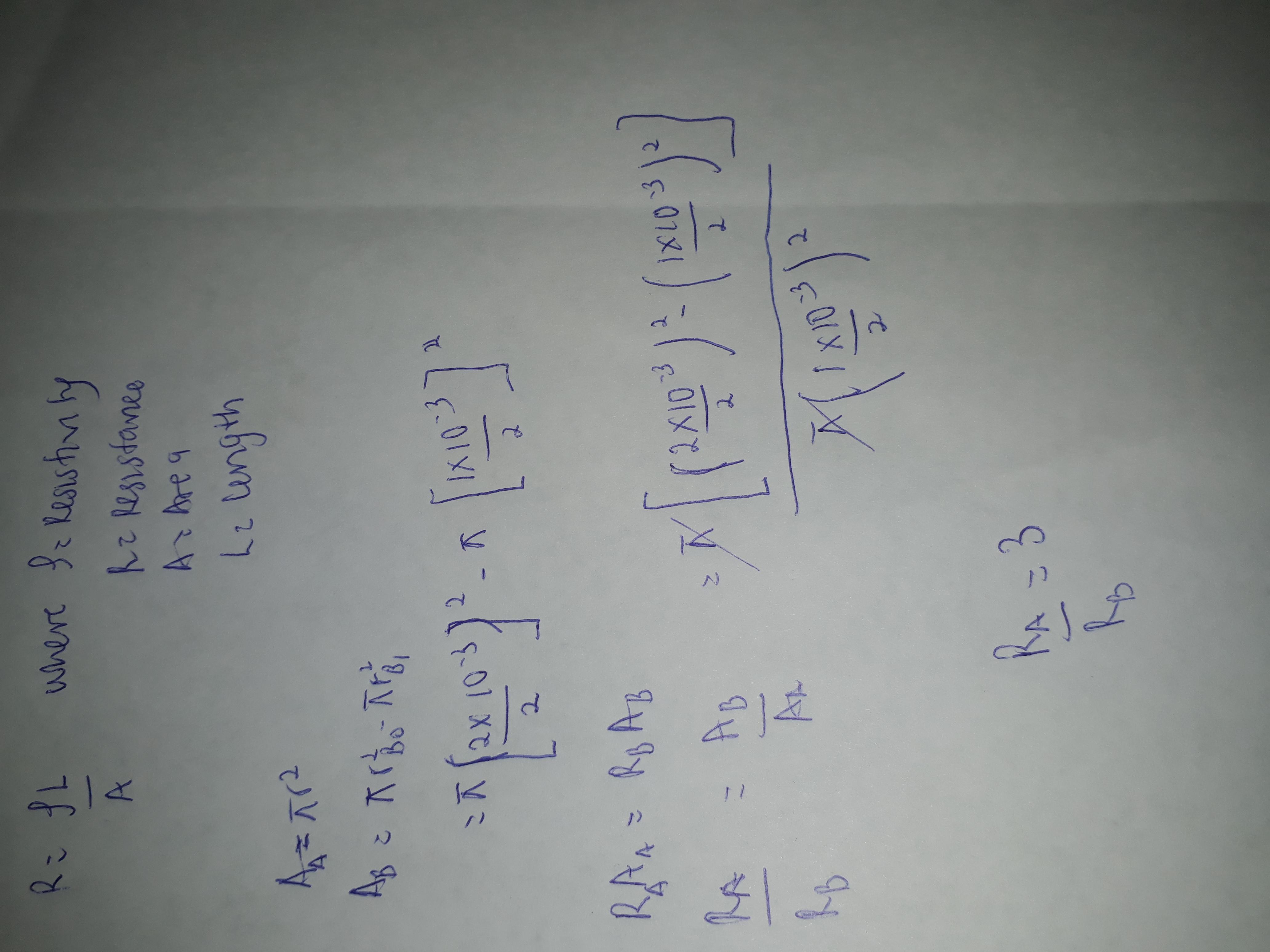

Below is an attachment containing the solution.
