Blizzard [7]
4 years ago
11

A signal expected to be of the form F(t)=10sin15.7t is to be measured with a first-order instrument having a time constant of 50

ms. Find: Write the expected indicated steady response output signal. Is this instrument a good choice for this measurement? What is the expected time lag between input and output signal? Plot the output amplitude spectrum. Use y(0)=0 and K =1V/V.

Engineering
1 answer:
svet-max [94.6K]4 years ago
5 0

Answer:

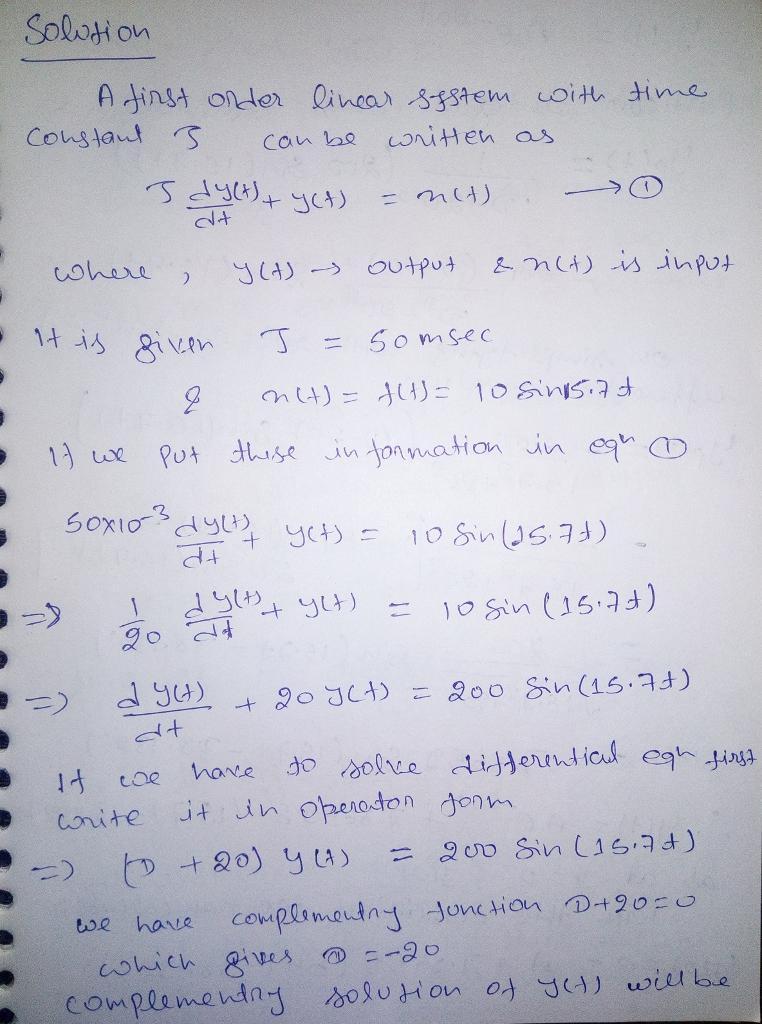

The answer is attached below

Explanation:

You might be interested in
This size of battery is found in a Hybrid Electric Vehicle (HEV).
Vlad1618 [11]

The subcompact EV comes with a battery that has 12–18kWh, the mid-sized family sedan has a 22–32kWh pack, and the luxury models by Tesla stand alone with an oversized battery boasting 60–100kWh to provide extended driving range and achieve high performance.
4 0
3 years ago
Read 2 more answers
Guys do u know who is
avanturin [10]
I think so, I’ve seen her on here a couple of times. Though I’ve never spoken with said person

Hope this helps you (also why?)
6 0
4 years ago
Read 2 more answers
A ball A is thrown vertically upward from the top of a 24-m-high building with an initial velocity of 7 m/s . At the same instan
solniwko [45]

Answer:

The height from ground at which they pass each other is 22.656 m

The time at which they pass each other is 1.6 sec.

Explanation:

For ball A, we have:

height = (h)a

Initial Velocity = Vi = 7 m/s

g = - 9.8 m/s² (for upward motion)

Using 2nd eqn. of motion:

h = Vi t + (1/2)gt²

(h)a = 7t + (1/2)(-9.8)t²

(h)a = 7t - 4.9t²

this is the height of ball A with reference as the building. Taking ground as reference, we have to add the height of building, that is, 24 m.

(h)a = 7t - 4.9t² + 24  ______ eqn (1)

For ball B, we have:

height = (h)b

Initial Velocity = Vi = 22 m/s

g = - 9.8 m/s² (for upward motion)

Using 2nd eqn. of motion:

h = Vi t + (1/2)gt²

(h)b = 22t + (1/2)(-9.8)t²

(h)b = 22t - 4.9t²    ______ eqn (2)

Now, when the too balls pass each other, there height must be same.

Therefore,

(h)a = (h)b

using eqn (1) and eqn (2):

7t - 4.9t² + 24 = 22t - 4.9t²

22t - 7t = 24

t = 24/15

<u>t = 1.6 sec</u>

Now, for the height, at which they pass each other put t = 6sec in eqn (2)

Therefore,

h = (22)(1.6) - (4.9)(1.6)²

h = 35.2 - 12.544

<u>h = 22.656 m</u>

<u></u>

6 0
4 years ago
Crawling in heavy smoke or extreme heat can increase
DerKrebs [107]

Hello! The answer to your question would be as followed:

Crawling in heavy smoke or extreme heat can increase <u><em>visibility</em></u>

7 0
4 years ago
BE-40 What is a characteristic of a catamaran hull?
Nat2105 [25]

Answer:

<em>A stable ride</em>

Explanation:

A Catamaran hull is a form of sea craft invented by the Austronesian peoples, the invention of the Catamaran hull enabled these people to sail across the sea in their expansion to the islands of the Indian and Pacific Oceans. Catamaran has multiple hulls, usually two parallel hulls of equal size. This geometric feature gives the craft an increased stability because,<em> it derives extra stability from its wide beam, in the place of a ballasted keel employed in a regular monohull sailboat. </em>A Catamaran hull will require four times the force needed to capsize it, when compared to an equivalent monohull.

8 0
3 years ago
