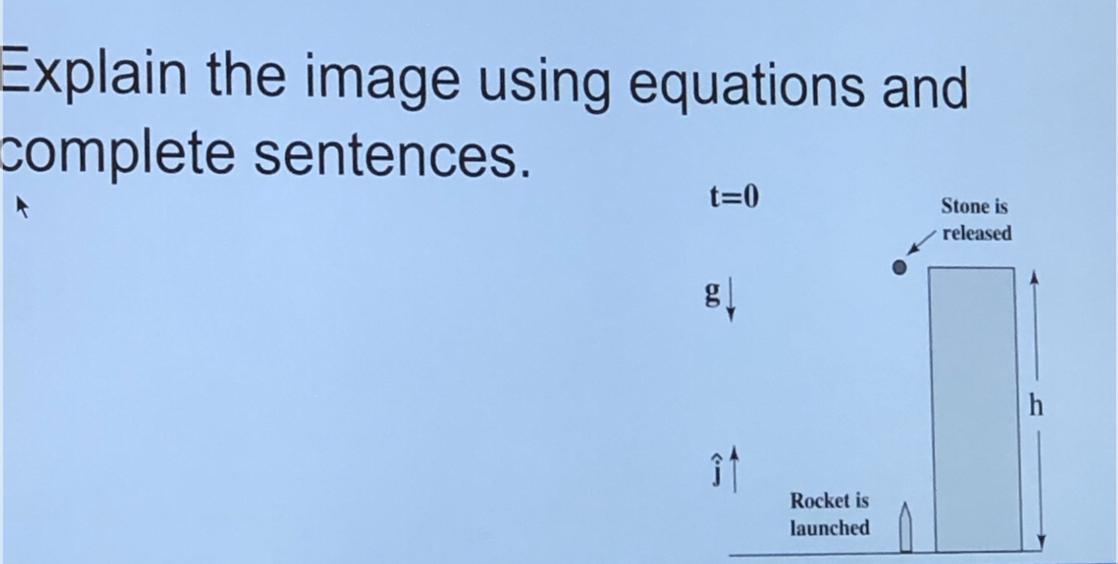

Explain the image using equations in complete sentences.

Physics

1 answer:

Lynna [10]3 years ago

4 0

Explanation:

in case of acceleration/deceleration with constant Force (such as free fall with WEIGHT or rocket thrust)

x=Vt/2 and V=at therefore x=at²/2

In the picture gt²/2 + jt²/2 = h

You might be interested in

What sphere on earth includes mountains

Lostsunrise [7]

I believe it is lithosphere

3 0

3 years ago

What is the frequency of a wave that has a period of vibration of 2 seconds?

34kurt

Answer:

The answer is 0.5 Hz

Explanation:

Its pretty easy to get the answer. One hertz (Hz) is equal to one cycle or period per second. So, just divide the period by the number of seconds.

1 period/2 secs = 1/2 Hz or 0.5 Hz

7 0

3 years ago

True or false an experiment in investigating the effects and development variable on the independent variable

Sergeu [11.5K]

true if you are refering to the desing of the experimnt as it does identify the variable

8 0

3 years ago

The surface is tilted to an angle of 37 degrees from the horizontal, as shown above in Figure 3. The blocks are each given a pus

hoa [83]

Answer:

Incomplete question: "Each block has a mass of 0.2 kg"

The speed of the two-block system's center of mass just before the blocks collide is 2.9489 m/s

Explanation:

Given data:

θ = angle of the surface = 37°

m = mass of each block = 0.2 kg

v = speed = 0.35 m/s

t = time to collision = 0.5 s

Question: What is the speed of the two-block system's center of mass just before the blocks collide, vf = ?

Change in momentum:

$delta(P)=F*delta(t)$

$P_{f} -P_{i}=F*delta(t)$

$2m(v_{f} -v_{i})=F*delta(t)$

$v_{i} =0.35-0.35=0$

It is neccesary calculate the force:

$F=(m+m)*g*sin\theta$

Here, g = gravity = 9.8 m/s²

$F=(0.2+0.2)*9.8*sin37=2.3591N$

$v_{f} =\frac{F*delta(t)}{2m} =\frac{2.3591*0.5}{2*0.2} =2.9489m/s$

6 0

3 years ago

A mass of 30.0 grams hangs at rest from the lower end of a long vertical spring. You add different amounts of additional mass ΔM

ra1l [238]

Answer:

K = 373.13 N/m

Explanation:

The force of the spring is equals to:

Fe - m*g = 0 => Fe = m*g

Using Hook's law:

K*X = m*g Solving for K:

K = m/X * g

In this equation, m/X is the inverse of the given slope. So, using this value we can calculate the spring's constant:

K = 10 / 0.0268 = 373.13N/m

3 0

4 years ago
