Sodium nitrite (NaNO2)reacted with 2−iodooctane to give a mixture of two constitutionally isomeric compounds of molecular formul
a C8H17NO2in a combined yield of 88%. Draw reasonable structures for these two isomers. Click the "draw structure" button to launch the drawing utility. Place the two compounds in the appropriate boxes below. draw structure ... Alkyl nitrite draw structure ... Nitroalkane
2 answers:
Answer:

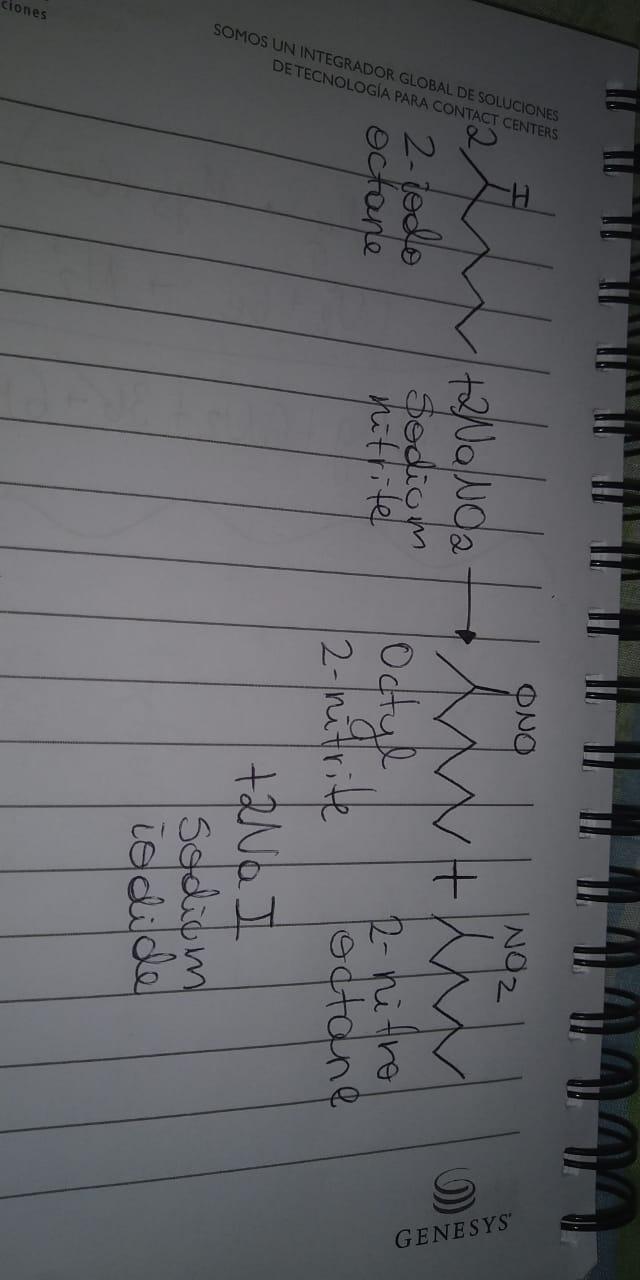

On the attached picture.
Explanation:
Hello,
In the case, the reaction between 2-iodooctane and sodium nitrite, leads to the formation of an alkyl nitrite and a nitro alkane as shown on the attached picture. Once the reaction began, the salt breaks and the sodium bonds with the iodine from the 2-iodooctane to form sodium iodide, in such a way, a free radical in the second carbon is formed so the NO₂ could bond both as a nitrite and as a nitro radical; therefore, the formed species are octyl 2-nitrite and 2-nitrooctane.
Best regards.
