Veseljchak [2.6K]
4 years ago
4

For a continuous and oriented fiber-reinforced composite, the moduli of elasticity in the longitudinal and transverse directions

are 19.7 and 3.66 GPa (2.8×106 and 5.3×105 psi), respectively. If the volume fraction of fibers is 0.43, determine the moduli of elasticity of fiber and matrix phases.

Engineering
2 answers:
Anna [14]4 years ago
5 0

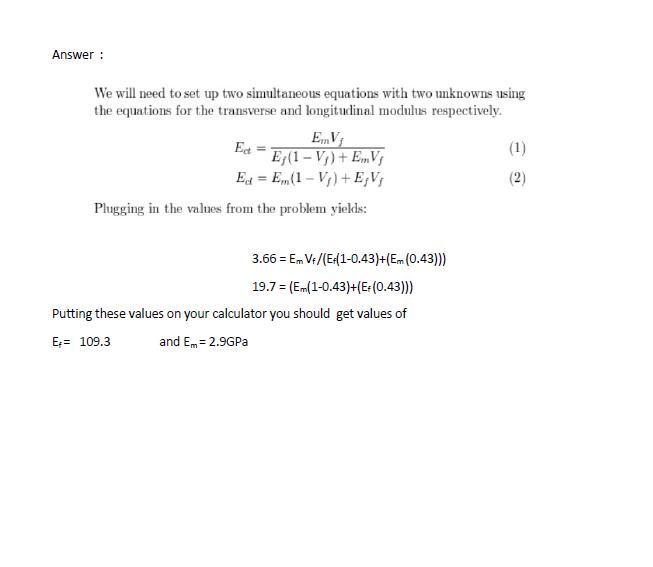

Answer:

See attacent for completed answer solvings.

Explanation:

Given that: For a continuous and oriented fiber-reinforced composite, the moduli of elasticity in the longitudinal and transverse directions are 19.7 and 3.66 GPa (2.8×106 and 5.3×105 psi), respectively. If the volume fraction of fibers is 0.43, determine the moduli of elasticity of fiber and matrix phases.

See attachment for complwte answer solving.

slavikrds [6]4 years ago
3 0

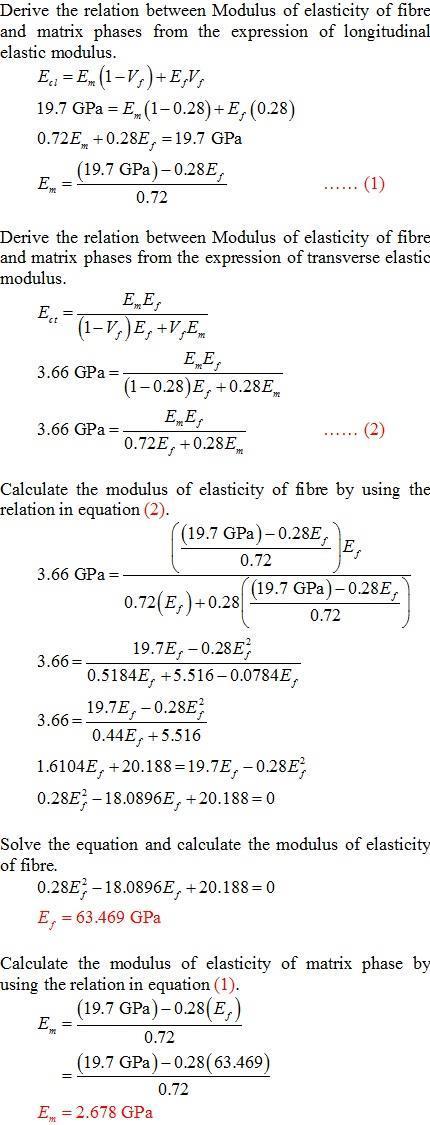

Answer:

Answer is in the following Attachment

Explanation:

You might be interested in
Determine (with justification) whether the following systems are (i) memoryless, (ii) causal, (iii) invertible, (iv) stable, and
lina2011 [118]

Answer:

a.

y[n] = x[n] x[n-1]  x[n+1]

(i) Memory-less - It is not memory-less because the given system is depend on past or future values.

(ii) Causal - It is non-casual because the present value of output depend on the future value of input.

(iii) Invertible - It is invertible and the inverse of the given system is \frac{1}{x[n] . x[n-1] x[n+1]}

(iv) Stable - It is stable because for all the bounded input, output is bounded.

(v) Time invariant - It is not time invariant because the system is multiplying with a time varying function.

b.

y[n] = cos(x[n])

(i) Memory-less - It is memory-less because the given system is not depend on past or future values.

(ii) Causal - It is casual because the present value of output does not depend on the future value of input.

(iii) Invertible - It is not invertible because two or more than two input values can generate same output values .

For example - for x[n] = 0 , y[n] = cos(0) = 1

                       for x[n] = 2\pi , y[n] = cos(2\pi) = 1

(iv) Stable - It is stable because for all the bounded input, output is bounded.

(v) Time invariant - It is time invariant because the system is not multiplying with a time varying function.

3 0
3 years ago
A simple undamped spring-mass system is set into motion from rest by giving it an initial velocity of 100 mm/s. It oscillates wi
____ [38]

Answer:

f=1.59 Hz

Explanation:

Given that

Simple undamped system means ,system does not consists any damper.If system consists damper then it is damped spring mass system.

Velocity = 100 mm/s

Maximum amplitude = 10 mm

We know that for a simple undamped system spring mass system

V_{max}=\omega A

now by putting the values

V_{max}=\omega A

100 = ω x 10

ω = 10 rad/s

We also know that

ω=2π f

10 = 2 x π x f

f=1.59 Hz

So the natural frequency will be f=1.59 Hz.

6 0
4 years ago
Write a python program to get the following output. 1-----99 2-----98 3-----97 . . . . . . 98-----2 99-----1
Zanzabum

Answer:

i dont know th answer can u help ?

Explanation:

8 0
3 years ago
A rocket is launched vertically from rest with a constant thrust until the rocket reaches an altitude of 25 m and the thrust end
hjlf

Answer:

a) v=19.6 m/s

b) H=19.58 m

c) v_{f}=29.57 m/s

Explanation:

a) Let's calculate the work done by the rocket until the thrust ends.

W=F_{tot}h=(F_{thrust}-mg)h=(35-(2*9.81))*25=384.5 J

But we know the work is equal to change of kinetic energy, so:

W=\Delta K=\frac{1}{2}mv^{2}

v=\sqrt{\frac{2W}{m}}=19.6 m/s

b) Here we have a free fall motion, because there is not external forces acting, that is way we can use the free-fall equations.

v_{f}^{2}=v_{i}^{2}-2gh

At the maximum height the velocity is 0, so v(f) = 0.

0=v_{i}^{2}-2gH

H=\frac{19.6^{2}}{2*9.81}=19.58 m

c) Here we can evaluate the motion equation between the rocket at 25 m from the ground and the instant before the rocket touch the ground.

Using the same equation of part b)

v_{f}^{2}=v_{i}^{2}-2gh

v_{f}=\sqrt{19.6^{2}-(2*9.81*(-25))}=29.57 m/s

The minus sign of 25 means the zero of the reference system is at the pint when the thrust ends.

I hope it helps you!

6 0
3 years ago
Carl why is there a dead man in the living room?
scoray [572]
You always need some company
3 0
3 years ago
