4 years ago

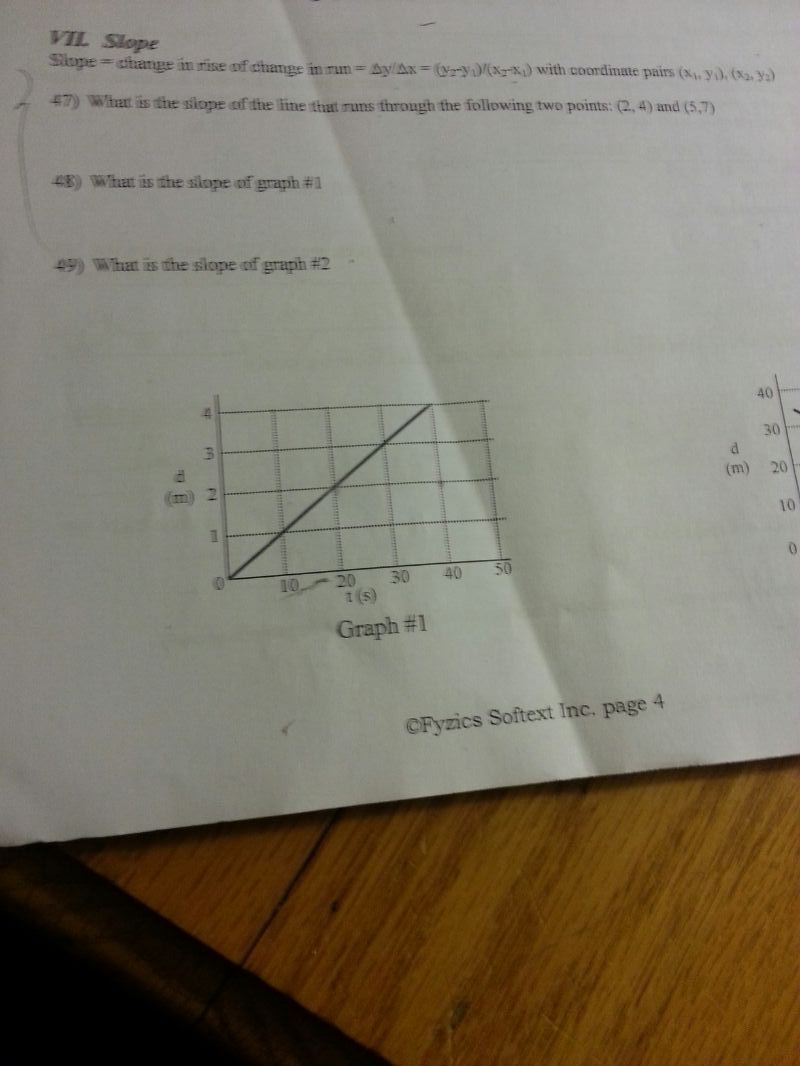

May I please have some help with finding the slope in this graph?

Physics

1 answer:

Kisachek [45]4 years ago

8 0

The slope is always

   (the change in 'y')
divided by
   (the change in 'x') .

This line is so easy ... it crosses all the corners of the boxes,
so you have tons of choices of what 2 points to pick.
But let's just pick the ends of the line.

From the beginning to the end of the line:

-- the change in 'y' is 4 meters

-- the change in 'x' is 40 seconds

Slope = (the change in 'y') divided by (the change in 'x') .

   = (4 meters) /    (40 seconds)

   = 0.1 meter/second .

You might be interested in

A long solenoid has 103 turns/cm and carries current i. An electron moves within the solenoid in a circle of radius 2.60 cm perp

Aneli [31]

Answer:

0.23348 A

Explanation:

B = Magnetic field

v = Velocity of electron = $1.38\times 10^7\ m/s$

q = Charge of electron = $1.6\times 10^{-19}\ C$

$\mu_0$ = Vacuum permeability = $4\pi \times 10^{-7}\ H/m$

r = Radius of circle = 0.026 m

N = Number of turns = 103 turns/cm = $103\times 100\ turns/m$

I = Current

The magnetic and centripetal force will be balanced

$Bqv=m\frac{v^2}{r}\\\Rightarrow B=\frac{mv}{qr}$

The magnetic field in solenoid is given by

$B=N\mu_0 I\\\Rightarrow I=\frac{B}{N\mu_0}$

From the first equation

$I=\frac{\frac{mv}{qr}}{N\mu_0}\\\Rightarrow I=\frac{mv}{N\mu_0qr}\\\Rightarrow I=\frac{9.11\times 10^{-31}\times 1.38\times 10^7}{103\times 100\times 4\pi \times 10^{-7}\times 1.6\times 10^{-19}\times 0.026}\\\Rightarrow I=0.23348\ A$

The current in the solenoid is 0.23348 A

8 0

3 years ago

The gravitational force between two bodies is 250N . What will the new force be if one of the masses is tripled?

Pachacha [2.7K]

If one of the masses is tripled, then their product is tripled, and the force between them is tripled. The new force is <em>750N</em> .

5 0

3 years ago

The following statement was made after the data were examined: “copper pots are the best pots for cooking food quickly.” Which t

exis [7]

Answer : Conclusion.

Explanation : The statement that is usually derived after the data which was experimentally examined is called as the conclusion.

The above statement shows that there was an experiment which was conducted to identify the rate of cooking food at a faster rate. After the experiment was completed it was found that copper pots were the best pots for cooking the food quickly. This was the conclusion which was derived after the observations and the experimental results of the experiment.

4 0

3 years ago

Read 2 more answers

How much must a woman weigh (force) if the pressure she exerts while standing on one foot has an area of 0.4 m2 exerts a pressur

aleksley [76]

Why do teachers give such hard questions? anyways hopefully your question will get answered! (btw i also need the points but yeah gl!!!)

7 0

3 years ago

Read 2 more answers

Why cant Analog Thermometers measure temperature below 0 °C?

Assoli18 [71]

Answer:
