Answer with Explanation:
The direction of the electric field line at any point gives us the direction of the electric force that will act on a positive charge if placed at the point. We know that if we place a charge in an electric field it will experience a force, as we know that force is a vector quantity hence it requires both magnitude and direction for it's complete description. The direction of this electric force that acts on a charge is given by the direction of the electric field in the space. In case the charge is negatively charged electric force will act on it in the direction opposite to the direction of electric field at the point.
Answer:
Planet C
Explanation:

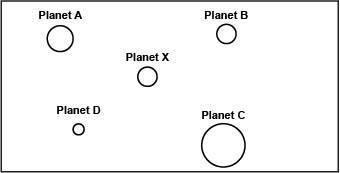

The figure of the problem is missing: find it in attachment.
The magnitude of the gravitational force between two objects is given by the equation:

where
G is the gravitational constant
m1, m2 are the masses of the two objects
r is the separation between the objects
In this problem, we have four planets around planet X, and the mass of each planet is proportional to its size in the figure.
As we can see from the previous equation, the magnitude of the gravitational force is proportional to the mass of the planets: therefore, the planet with largest mass will exert the largest gravitational force on planet X.
From the figure, we see that planet C has the largest size, so the largest mass: therefore, planet C exerts the greatest gravitational force on planet X.
Answer:
525 V
Explanation:
A = Area =
= Rate of change of magnetic field =
(assumed)
Induced electromotive force is given by

The induced electromotive force is 525 V
Answer:
The tension in the upper rope (top rope), T1 = 1,888 N
Explanation:
The Parameters that were given:
Mass A, M1 = 70kg
Mass B. M2 = 90kg
acceleration, a = 2 m/s2
Assume the rope doesn't have mass, acceleration due to gravity, g
= 9.8 m/s2
The tension, T in a platform = m (a + g)
Then the tension, T1 in the upper rope = m1 (a + g) + T2
Where T2 = Tension in the lower rope
First, we calculate T2
Since the platform accelerates upward the acceleration would be positive
T2 = m2 (a + g)
T2 = 90kg ( 2 m/s2 + 9.8 m/s2)
T2 = 1,062N
To calculate the tension T1,
T1 = m1 (a + g) + T2
= 70kg (2 m/s2 + 9.8 m/s2) + 1062N
T1 = 1,888 N
