Water at 60°F passes through 0.75-in-internal diameter copper tubes at a rate of 1.2 lbm/s. Determine the pumping power per ft
of pipe length required to maintain this flow at the specified rate.
The density and dynamic viscosity of water at 70°F are rho = 62.30 lbm/ft^3 and μ = 6.556 x 10^-4 lbm/ft*s. The roughness of copper tubing is 5 x 10^-6 ft.
The pumping power per ft of pipe length required to maintain this flow at the specified rate = _________ W (per ft length)
The density and dynamic viscosity of water at 70°F are rho = 62.30 lbm/ft^3 and μ = 6.556 x 10^-4 lbm/ft*s. The roughness of copper tubing is 5 x 10^-6 ft.
The pumping power per ft of pipe length required to maintain this flow at the specified rate = _________ W (per ft length)
1 answer:
Answer:
The pumping power per ft of pipe length required to maintain this flow at the specified rate 0.370 Watts
Explanation:

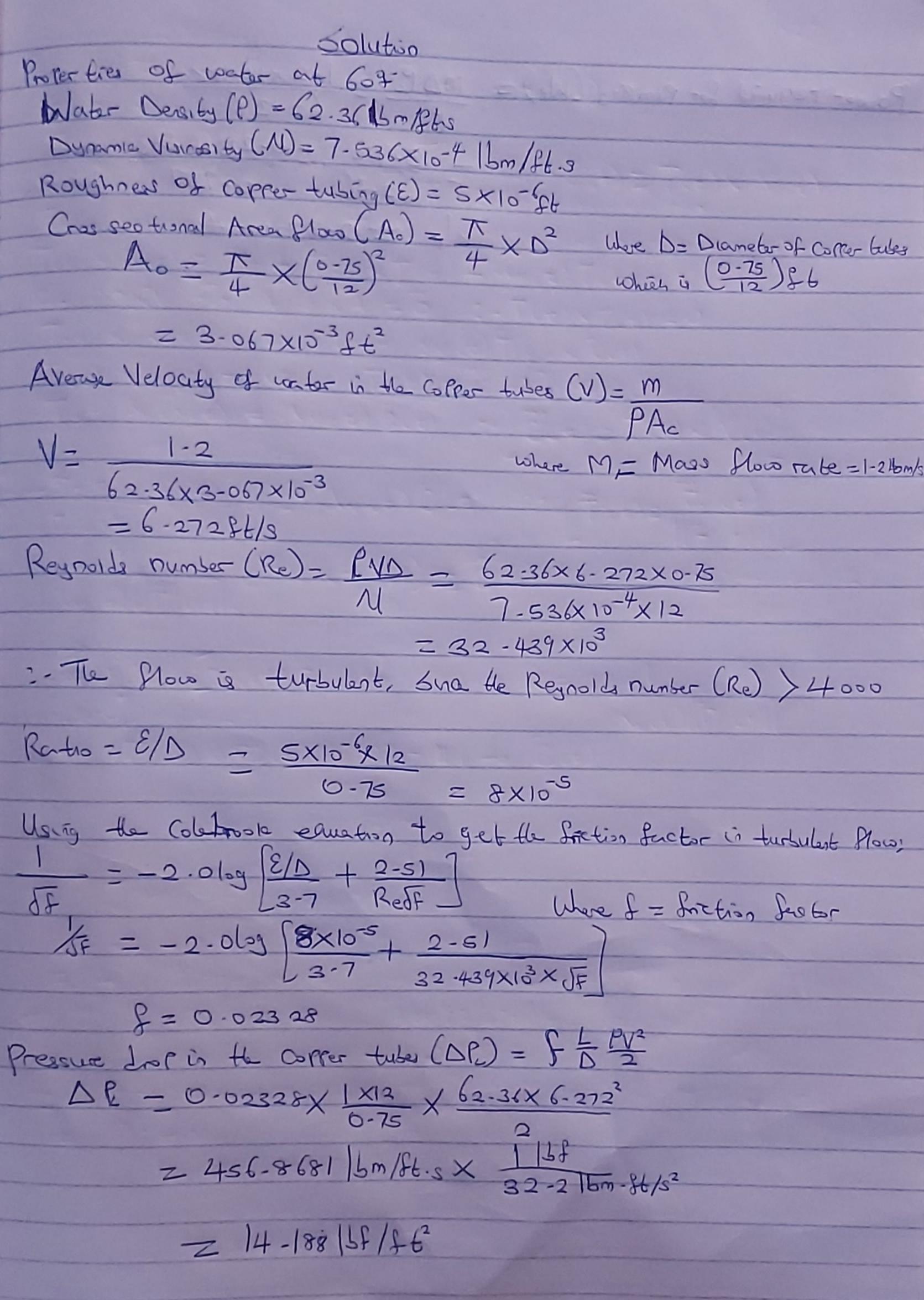

See calculation attached.
- First obtain the properties of water at 60⁰F. Density of water, dynamic viscosity, roughness value of copper tubing.
- Calculate the cross-sectional flow area.
- Calculate the average velocity of water in the copper tubes.
- Calculate the frictional factor for the copper tubing for turbulent flow using Colebrook equation.
- Calculate the pressure drop in the copper tubes.
- Then finally calculate the power required for pumping.
