Spymaster Tim, flying a constant vh = 193.6 km/hr horizontally in a low-flying helicopter, wants to drop secret documents into h

is contact's open car which is traveling va = 141.7 km/hr on a level highway h = 71.3 m below. At what angle (with the horizontal) should the car be in his sights when the packet is released?

1 answer:

Vinvika [58]4 years ago

5 0

Answer:

θ = 51.21°

Explanation:

Vh= 193.6 km/h

Va= 141.7 km/hr

Relative velocity ,Vr= 193.6 - 141.7 = 51.9 km/hr

Time taken to cover 71.3 m

$h=\dfrac{1}{2}gt^2$

$71.3=\dfrac{1}{2}\times 9.81\times t^2$

t= 3.81 s

t= 0.00105 hr

So the horizontal distance x

x= Vr .t

x= 51.9 x 0.00105 km

x=0.0549 m

x= 54.96 m

Lets take angle is θ

tan θ = h/x

tan θ = 71.3/54.96

θ = 51.21°

You might be interested in

What is paleomagnetism how has it been used to understand plate tectonics?

Nonamiya [84]

<span>Plate tectonics is the theory that the earth's crust is broken up into plates that float on top of a hotter and more fluid layer below. Evidence to support this theory has been uncovered through the study of the earth's past magnetic field, known as paleomagnetism.</span>

8 0

4 years ago

The Hall effect is to be used to find the sign of charge carriers in a semiconductor sample. The probe is placed between the pol

Alborosie

Answer:

the sign of these carriers is POSITIVE

Explanation:

In the effect, he found the charge carriers that were subjected to two forces, one electric and the other magnetic.

F = F_e + F_m = q E + q v x B

bold indicates vectors

The electric field goes to the east, therefore the current also has this direction, the vector product of the velocity of the charge carriers towards the east and the magnetic field upwards, using the right hand rule a magnetic force is created towards the north if the carriers are positive.

In the exercise they indicate that the north side has a higher potential than the south side, therefore there must be an accumulation of carriers on this side that create an electric field (Hall) that is put to the magnetic force until reaching equilibrium when the total force is zero.

Therefore the sign of these carriers is POSITIVE

6 0

3 years ago

Consult Multiple-Concept Example 15 to review the concepts on which this problem depends. Water flowing out of a horizontal pipe

kiruha [24]

Answer:

The pressure of the water in the pipe is 129554 Pa.

Explanation:

<em>There are wrongly written values on the proposal, the atmospheric pressure must be 101105 Pa, and the density of water 1001.03 kg/m3, those values are the ones that make sense with the known ones.</em>

We start usign the continuity equation, and always considering point 1 a point inside the pipe and point 2 a point in the nozzle:

$A_1v_1=A_2v_2$

We want $v_2$ , and take into account that the areas are circular:

$v_2=\frac{A_1v_1}{A_2}=\frac{\pi r_1^2 v_1}{\pi r_2^2}=\frac{r_1^2 v_1}{r_2^2}$

Substituting values we have (we don't need to convert the cm because they cancel out between them anyway):

$v_2=\frac{r_1^2 v_1}{r_2^2}=\frac{(1.8cm)^2 (0.56m/s)}{(0.49cm)^2}=7.56m/s$

For determining the absolute pressure of the water in the pipe we use the Bernoulli equation:

$P_1+\frac{\rho v_1^2}{2}+\rho gh_1=P_2+\frac{\rho v_2^2}{2}+\rho gh_2$

Since the tube is horizontal $h_1=h_2$ and those terms cancel out, so the pressure of the water in the pipe will be:

$P_1=P_2+\frac{\rho v_2^2}{2}-\frac{\rho v_1^2}{2}=P_2+\frac{\rho (v_2^2-v_1^2)}{2}$

And substituting for the values we have, considering the pressure in the nozzle is the atmosphere pressure since it is exposed to it we obtain:

$P_1=101105 Pa+\frac{1001.03Kg/m^3 ((7.56m/s)^2-(0.56m/2)^2)}{2}=129554 Pa$

3 0

3 years ago

The top layer of a goose down sleeping bag has a thickness of 5.0 cm and a surface area of 1.0 m2. when the outside temperature

weqwewe [10]

Answer:

the thermal conductivity of the goose down = 0.0000210w/mK

Explanation:

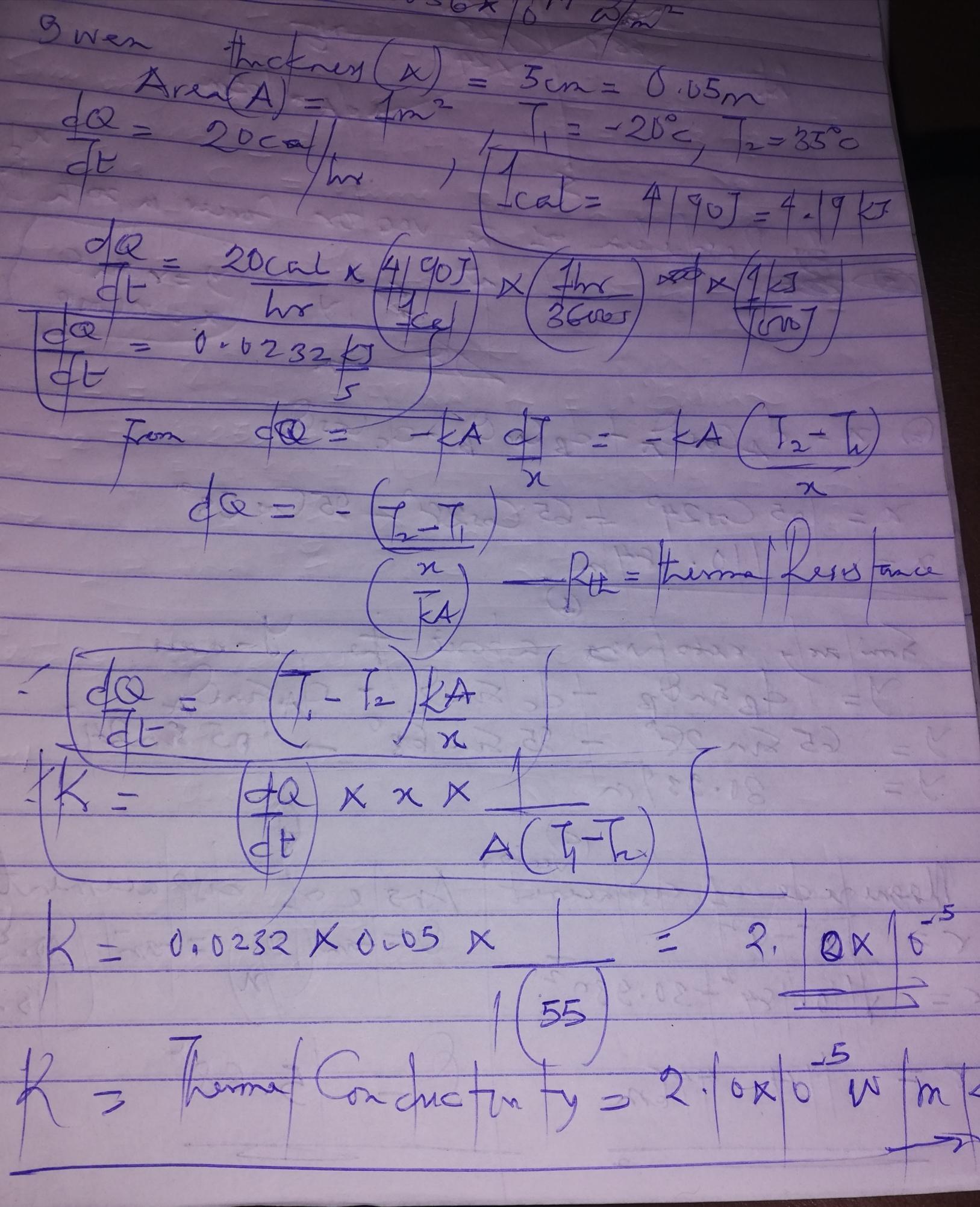

The detailed steps from fourier's law of heat conduction is as shown in the attached file.

7 0

3 years ago

Suppose that a public address system emits sound uniformly in all directions and that there are no reflections. The intensity at

dybincka [34]

Answer:

The intensity at a spot 71 m away is $4.02*10^{-5} Wm^{-2}$

Explanation:

Given:

Initial intensity, $I_{1}=3.0*10^{-4} Wm^{-2}$ at a distance, $d_{1} = 26 m$

Required:

New intensity, $I_{2} =?$ at a distance, $d_{2} = 71 m$

Using the inverse square law,

I ∝ $\frac{1}{d^{2} }$

⇒ $I_{1}$ $I_{1}d_{1}^{2} =I_{2}d_{2}^{2}$

$I_{2} =\frac{I_{1} d_{1}^{2} }{d_{2}^{2}} =\frac{3.0*10^{-4}*26^{2} }{71^{2} } \\$ ×

$I_{2}=4.02*10^{-5} Wm^{-2}$

Thus, the intensity at a spot that is 71 m away is $4.02*10^{-5} Wm^{-2}$

5 0
