1 answer:
Answer:
(523.74 lb)∠-48.59°
Explanation:

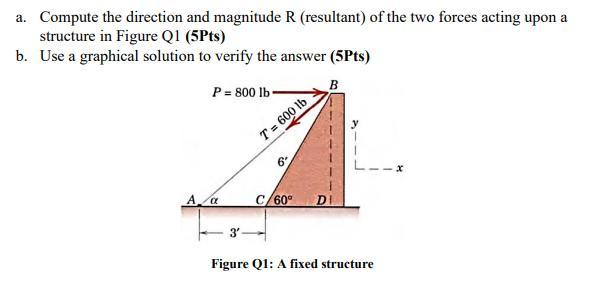

a) We can find the sum of the force vectors several ways, but first we need to know the direction of vector BT. The angle PBT is identical to the angle shown as α, which we can find from the lengths BD and AD.
α = arctan(BD/AD) = arctan((3√3)/6)) ≈ 40.893°
Using the Law of Cosines, we can find the magnitude of PT from ...
PT^2 = PB^2 +BT^2 -2·PB·BT·cos(α)
PT^2 = 800^2 +600^2 -2·800·600·2/√7 = 1000000 -1920000/√7
PT ≈ 523.74 . . . . lb
The direction of PT can be found from the Law of Sines.
∠BPT = arcsin(BT/PT·sin(α)) ≈ 1.145597sin(40.893°) ≈ 48.59°
Relative to the +x axis, the resultant force (R) is ...
R = (523.74 lb)∠-48.59°
__
b) The graphical solution is shown in the attachment. The graphing tool measures the segment lengths and angles. Those measures confirm the above result. (The pound values shown are scaled up by a factor of 100 from the segment lengths on the diagram. They are "captions" for the respective vectors.)
You might be interested in
Answer:
The answer is "0.0728"
Explanation:
Given value:
if flow is chocked
if flow is not chocked
When P= 10 psia <
not chocked
match number:
R= gas constant=1716
Answer:
Explanation:
The rate of flow in the pipe system in Figure P4.5.2 is 0.05 m3/s. The pressure at point 1 is measured to be 260 kPa. All the pipes are galvanized iron with roughness value of 0.15 mm. Determine the pressure at point 2. Take the loss coefficient for the sudden contraction as 0.05 and v = 1.141 × 10−6 m2/s.
The answer to the above question is
The pressure at point 2 = 75.959 kPa
Explanation:
Bernoulli's equation with losses gives
hL = z₁ - z₃ +(P₁-P₃)/(ρ×g) + (v₁²-v₃²)/(2×g)
Between points 1 and 2, z₁ = z₃ + 0.6 m therefore
hL = 0.6 m +(P₁-P₂)/(ρ×g) + (v₁²-v₃²)/(2×g)
hL = (f₁×L₁×v₁²)/(D₁×2×g) + (f₂×L₂×v₂²)/(D₂×2×g) + (f₃×L₃×v₃²)/(D₃×2×g) + k×V₃₂/(2×g) = 0.6 +(P₁-P₂)/(ρ×g) + (v₁²-v₃²)/(2×g)
But v = Q/A
or since A = π×D²/4 we have
A₁ = 1.77×10-2 m² , A₂ = 5.73×10-2 m², A₃ = 3.8×10-2 m²
Therefore from v = Q/A we have v₁ = 2.83 m/s v₂ = 0.87 m/s and v₃ = 1.315 m/s from there we find the friction coefficient from Moody Diagram as follows
ε = Which gives
the friction coefficients as f₁ = 0.02, f₂ = 0.017 and f₃ =0.0175
Substituting he above values into the equation we get
= 19.761 m
Combined head loss = 19.761 m
Hence 19.743 m = 0.6 m +(260 kPa-P₃)/(ρ×9.81) + (6.276)/(2×9.81)
or 260 kPa-18.82 m × 9.81 m/s²×ρ= P₃
Where ρ = density of water, we have
260000 Pa - 18.82 m×9.81 m/s²×997 kg/m³ = 75958.598 kg/m·s² = 75.959 kPa
