I am Lyosha [343]
3 years ago
8

The wheel weighs 20 lb and rests on a surface for which μB = 0.2. A cord wrapped around it is attached to the top of the 30 lb h

omogeneous block. If the coefficient of static friction at D is μD = 0.3, determine the smallest vertical force that can be applied tangentially to the wheel which will cause motion to impend.

Engineering
1 answer:
Svet_ta [14]3 years ago
8 0

Answer:

P = 13.3lb

Explanation:

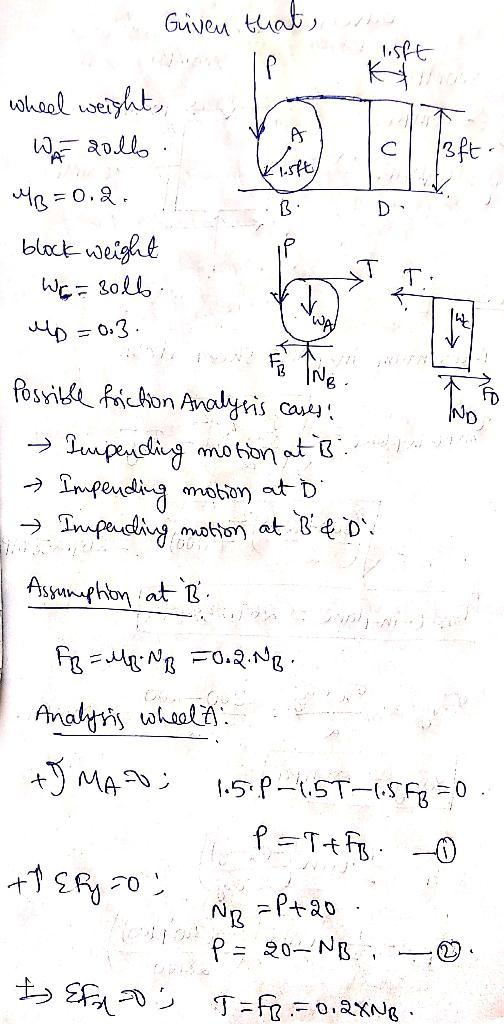

From the attached files, The possible friction analysis cases are:

Impeding motion at 'B'

Impending motion at 'D'

Impending motion at 'B and D'

Please continue by going through the attachments for a step by step resolution of the problem.
