mash [69]
4 years ago
10

Design a logic circuit that has a 4-bit binary number as an input and one output. The output should be 1 iffthe input is a prime

number (greater than 1) or zero
(a)Use a two-level NAND-gate circuit.

(b)Use a two-level NOR-gate circuit.

(c)Use only two-input NANDgate

Engineering
1 answer:
Maurinko [17]4 years ago
5 0

Answer:

Check the explanation

Explanation:

Solution

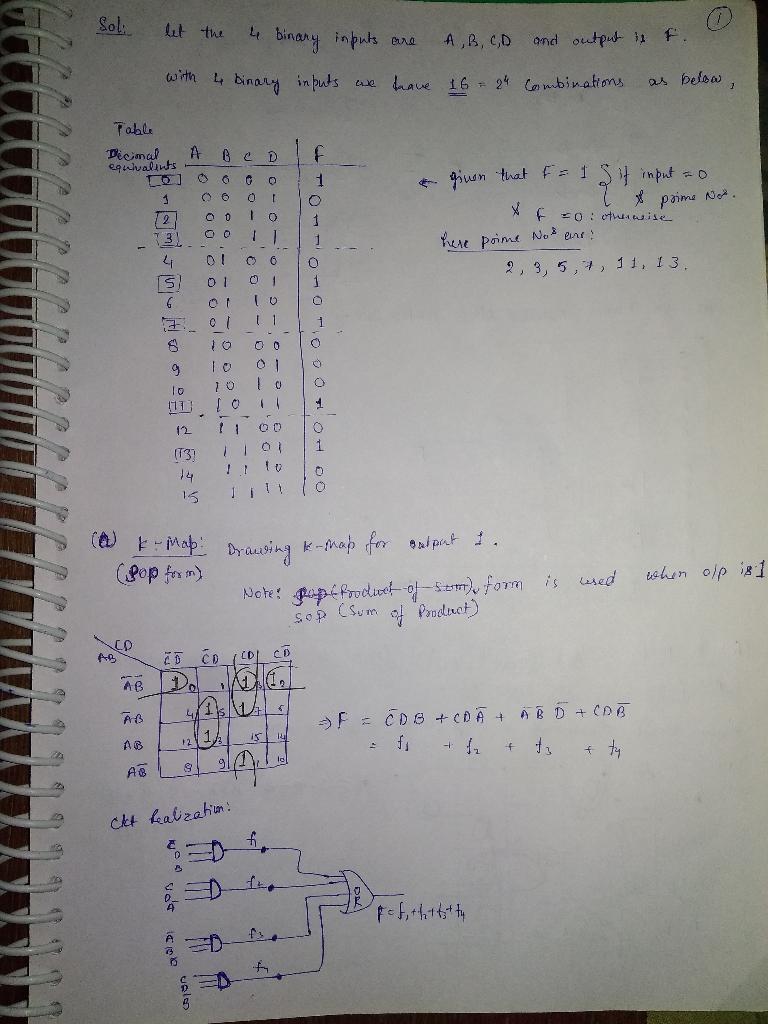

Let the L_1 binary input one A,B,C,D and output is F with L_1 binary inputs we have 16=2^4 combination as in below.

Kindly check the attached image below to get the full step by step explanation to the question above.
