3 years ago

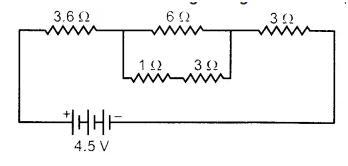

Find the current flowing through the following circuit

Physics

1 answer:

kap26 [50]3 years ago

4 0

Answer:

0.5

Explanation:

calculating the total resistance for the both the parallel and the series resistors then later using the ohm's law formulae V=IR to calculate current.

You might be interested in

Define what is boyleâs law?

lawyer [7]

Answer:

Volume of given mass of gas is inversely proportional to pressure of gas

Explanation:

Boyle's law: It states that the volume of given mass of gas is inversely proportional to the pressure of gas at constant temperature.

Mathematical representation:

Suppose, a gas of mass m

T=Constant temperature

V=Volume of gas

P=Pressure of gas

Then, $V\propto\frac{1}{P}$

8 0

4 years ago

The horizontal beam in Fig. E11.14 weighs 190 N, and its center of gravity is at its center. Find (a) the tension in the cable a

grandymaker [24]

Answer:

(a). The tension in the cable is 658.33 N.

(b). The horizontal components of the force exerted on the beam at the wall is 526.66 N.

(c). The vertical components of the force exerted on the beam at the wall is 95.002 N.

Explanation:

Given that,

Weight of beam= 190 N

Here, The center of gravity is at its center

According to figure,

The angle is

$\sin\theta=\dfrac{3}{5}$

The horizontal component is

$T_{x}=T\cos\theta$

The vertical component is

$T_{y}=T\sin\theta$

(a). We need to calculate the tension in the cable

Using formula of net torque acting on the pivot

$\sum\tau=F_{b}\times r+F_{w}\times r'-T\sin \theta\times r'$

Put the value into the formula

$0=190\times2+300\times 4-T\sin\theta\times 4$

$T\sin\theta\times 4=380+1200$

$T=\dfrac{1580\times5}{3\times 4}$

$T=658.33\ N$

(b). We need to calculate the horizontal components of the force exerted on the beam at the wall

Using formula of horizontal component

$F_{x}=T\cos\theta$

Put the value into the formula

$F_{x}=658.33\times\dfrac{4}{5}$

$F_{x}=526.66\ N$

(c). We need to calculate the vertical components of the force exerted on the beam at the wall

Using formula of vertical component

$F_{y}=F_{b}+F_{w}-T\sin\theta$

Put the value into the formula

$F_{y}=190+300-658.33\times\dfrac{3}{5}$

$F_{y}=95.002\ N$

Hence, (a). The tension in the cable is 658.33 N.

(b). The horizontal components of the force exerted on the beam at the wall is 526.66 N.

(c). The vertical components of the force exerted on the beam at the wall is 95.002 N.

3 0

3 years ago

If you want the ball to land in your hand when it comes back down, should you toss the ball straight upward, in a forward direct

denpristay [2]

Straight upward

the ball moves in the forward direction with your walking speed at all times. If you want the ball to land in your hand when it comes back down, you should toss the ball straight upward.

<h3>What is Projectile motion ?</h3>

Projectile motion is the motion of an object thrown (projected) into the air.

After the initial force that launches the object, it only experiences the force of gravity. The object is called a projectile, and its path is called its trajectory

A projectile can be a thrown ball, a bullet or a springboard diver ... Except for air resistance, the forward velocity of any projectile is constant and is equal to the initial velocity when it was released.

Learn more about Projectile motion here:

brainly.com/question/27116954

#SPJ4

7 0

2 years ago

Student Exploration: Nuclear Decay. Has anyone done a Gizmos lab on this?

LUCKY_DIMON [66]

Answer:NOOPE

Explanation:IM THE MYSTERY MAN WHOOOOSHHHHHHHHHHHHHHH ???????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????

6 0

3 years ago

Two workers are sliding 300 kg crate across the floor. One worker pushes forward on the crate with a force of 400 N while the ot

almond37 [142]

Answer:

The kinetic coefficient of friction of the crate is 0.235.

Explanation:

As a first step, we need to construct a free body diagram for the crate, which is included below as attachment. Let supposed that forces exerted on the crate by both workers are in the positive direction. According to the Newton's First Law, a body is unable to change its state of motion when it is at rest or moves uniformly (at constant velocity). In consequence, magnitud of friction force must be equal to the sum of the two external forces. The equations of equilibrium of the crate are:

$\Sigma F_{x} = P+T-\mu_{k}\cdot N = 0$ (Ec. 1)
