Question

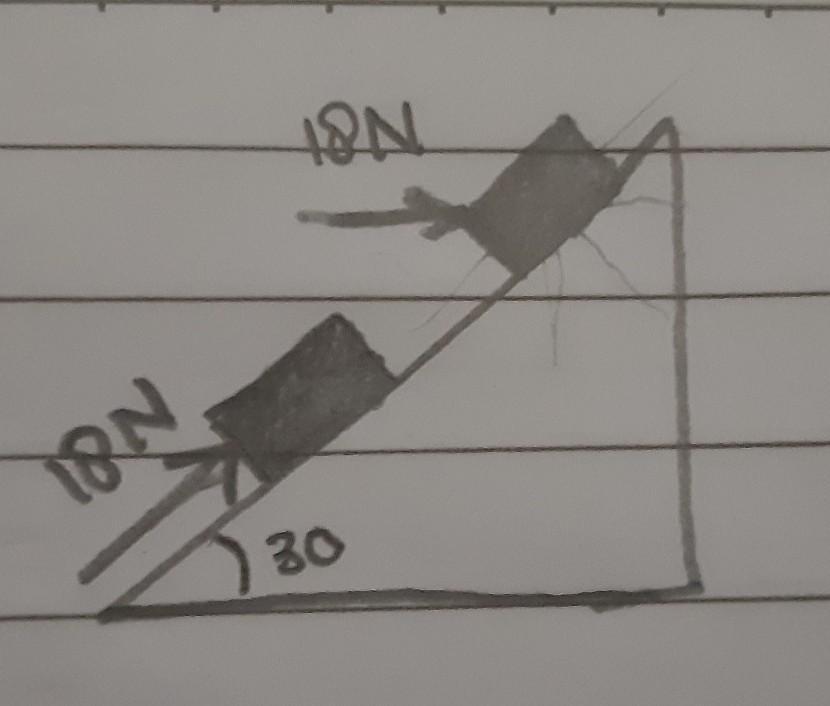

Small blocks A and B are held at rest on a smooth plane inclined at 30° to the horizontal. Each is held in equilibrium by a force of magnitude 18 N. The force on A acts upwards parallel to a line of greatest slope of the plane, and the force on B acts horizontally in the vertical plane containing a line of greatest slope (see diagram). Find the weight of A and the weight of B. ​

Answer 1

Answer :

First of all, See the attachment for better understanding$.$

_________________________________

❂ Weight of block A :

➝ mg sin30° = 18

➝ W (1/2) = 18

➝ W = 18×2

➝ W = 36N

❂ Weight of block B :

➝ N sin30° = 18

➝ (Mg cos30°) sin30° = 18

➝ W' (√3/2)(1/2) = 18

➝ W' (√3/4) = 18

➝ W' = 72/√3

➝ W' = 41.61N
