3 years ago

10

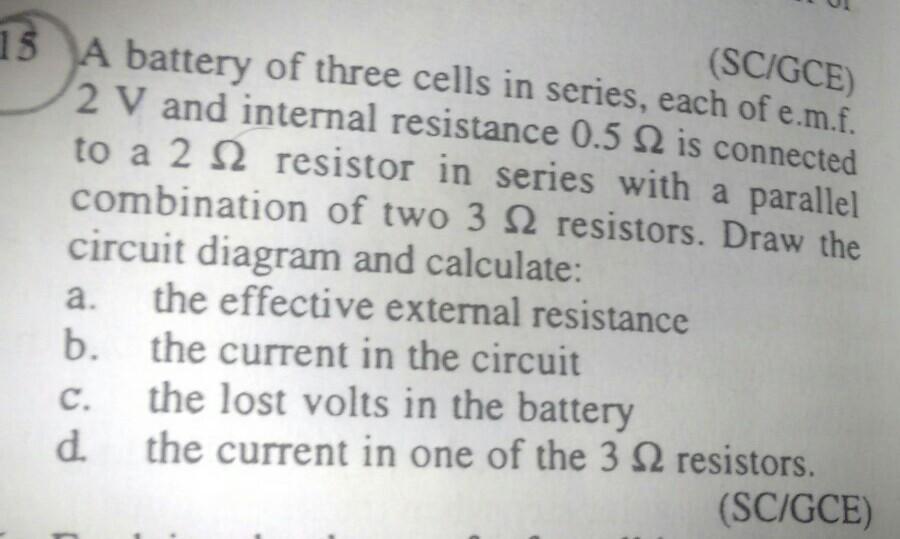

Please help and show workings.

1 answer:

Mnenie [13.5K]3 years ago

3 0

Effective resistance = 2+1.5 = 3.5 ohms

Current in the circuit = 1.2 A

Lost volts in the battery = 1.8V

Current in one of the 3 ohms resistors = 0.6 A

I hope it helps

You might be interested in

A balloon is launched at 2.5 m every second, how far did it travel in 10 seconds?

Elina [12.6K]

Answer:

25 meters

Explanation:

1 sec is 2.5, 1x10 so 2.5x10=25

7 0

3 years ago

PLEASE The weight of a girl is 600 N and the area of her one foot is 50 cm². What will be the pressure exerted by her o

Rus_ich [418]

Answer:

pressure=force/area

p=600/50

p=12

so 12Nm^-1

4 0

3 years ago

The surface charge density on an infinite charged plane is - 2.10 ×10−6C/m2. A proton is shot straight away from the plane at 2.

inn [45]

Explanation:

Formula to calculate electric field because of the plate is as follows.

E = $\frac{\sigma}{2 \times \epsilon_{o}}$

= $\frac{2.10 \times 10^{-6}}{2 \times 8.85 \times 10^{-12}}$

= $1.18 \times 10^{5} N/C$

Now, we will consider that equilibrium of forces are present there. So,

ma = qE

a = $\frac{1.6 \times 10^{-19} \times 1.18 \times 10^{5}}{1.67 \times 10^{-27}}$

= $1.13 \times 10^{13} m/s^2$

According to the third equation of motion,

$v^{2} = 2 \times a \times d$

or, d = $\frac{v^{2}}{2d}$

= $\frac{(2.4 \times 10^{6})^{2}}{2 \times 1.13 \times 10^{13}}$

= 0.254 m

Thus, we can conclude that the proton will travel 0.254 m before reaching its turning point.

7 0

3 years ago

When landing after a spectacular somersault, a 35.0 kg gymnast decelerates by pushing straight down on the mat. calculate the fo

Sliva [168]

The deceleration experienced by the gymnast is the 9 times of the acceleration due to gravity.

Now from Newton`s first law, the net force on gymnast,

$F_{net} =F-W=ma$

Here, W is the weight of the gymnast and a is the acceleration experienced by the gymnast ( $9\times g$ acceleration due to gravity)

Therefore,

$F= ma+W$ OR $F=ma+mg=m(g+a)$

Given $m = 30 kg$ and $a=9\times g=9\times 9.8 m/s^{2} =88.2 m/s^{2}$

Substituting these values in above formula and calculate the force exerted by the gymnast,

$F=(40 kg) (88.2 m/s^{2} +9.8 m/s^{2} )$

$F=3.537\times10^{3}N$

6 0

3 years ago

1)the car's engine power is 44000W. Explain this number in a physical sense

Ratling [72]

Answer:

1) It expresses the rate (top speed) at which it can move with time.

2) P = 20 W

3) h = 18 km

Explanation:

1) Power is the rate of transfer of energy.

⇒ Power = $\frac{Energy(or workdone)}{Time}$

i.e P = $\frac{E}{t}$

Thus a car's engine power is 44000W implies that the engine of the car can propel the car at this rate. This expresses the rate (top speed) at which it can move with time.

2) m = 400g = 0.4 kg

t = 20 s

h = 100m

g = 10 m/ $s^{2}$

P = $\frac{mgh}{t}$

= $\frac{0.4*10*100}{20}$

= $\frac{400}{20}$

P = 20 W

3) u = 600 m/s

g = 10 m/ $s^{2}$

From the third equation of free fall,

$V^{2}$ = $U^{2}$ - 2gh

V is the final velocity, U is the initial velocity, h is the height.

0 = $(600)^{2}$ - 2 x 10 x h

0 = 360000 - 20h

20h = 360000

h = $\frac{360000}{20}$

= 18000

h = 18 km

The maximum height of the bullet would be 18 km.

3 0

3 years ago
