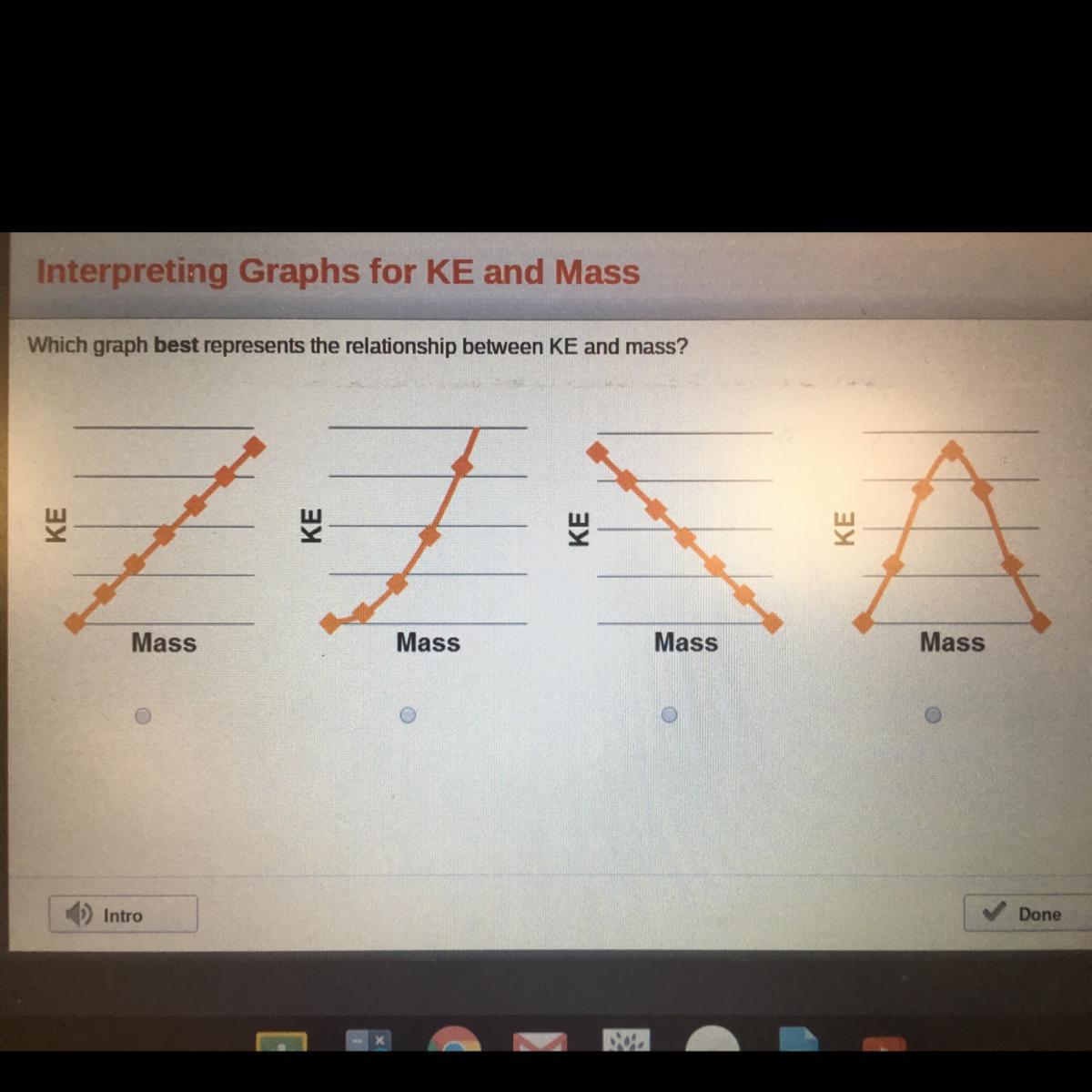

⚠️ Please help ⚠️ Which graph best represents the relationship between KE and mass ?

Physics

1 answer:

shusha [124]4 years ago

3 0

Answer:

Graph (A)

Explanation:

The energy that is possessed due to the motion of an object is called its kinetic energy.

The mathematical expression for kinetic energy is given by:

$E_k=\dfrac{1}{2}mv^2$ ........ (1)

Where

m is the mass of the object

v is the velocity with which it is moving

So, from equation (1) it is clear that there is a direct relation between kinetic energy and mass. Greater the mass, more will be its kinetic energy.

So, the graph that represent relationship between mass and kinetic energy is (A).

You might be interested in

Two parallel square metal plates that are 1.5 cm and 22 cm on each side carry equal but opposite charges uniformly spread out ov

Mumz [18]

Answer:

The number of excess electrons are on the negative surface is $4.80\times10^{10}\ electrons$

Explanation:

Given that,

Distance =1.5 cm

Side = 22 cm

Electric field = 18000 N/C

We need to calculate the capacitance in the metal plates

Using formula of capacitance

$C=\dfrac{\epsilon_{0}A}{d}$

Put the value into the formula

$C=\dfrac{8.85\times10^{-12}\times(22\times10^{-2})^2}{1.5\times10^{-2}}$

$C=0.285\times10^{-10}\ F$

We need to calculate the potential

Using formula of potential

$V=Ed$

Put the value into the formula

$V=18000\times1.5\times10^{-2}\ V$

$V=270\ V$

We need to calculate the charge

Using formula of charge

$Q=CV$

Put the value into the formula

$Q=0.285\times10^{-10}\times270$

$Q=76.95\times10^{-10}\ C$

Here, the charge on both the positive and negative plates

$Q=+76.95\times10^{-10}\ C$

$Q=-76.95\times10^{-10}\ C$

We need to calculate the number of excess electrons are on the negative surface

Using formula of number of electrons

$n=\dfrac{q}{e}$

Put the value into the formula

$n=\dfrac{76.95\times10^{-10}}{1.6\times10^{-19}}$

$n=4.80\times10^{10}\ electrons$

Hence, The number of excess electrons are on the negative surface is $4.80\times10^{10}\ electrons$

8 0

3 years ago

Calculate the tension on the rope. A. 57.89 N B. 32.73 N C. 69.84 N D. 12.55 N

Ratling [72]

Hi there!

$\large\boxed{\text{B. 32.73N}}$

To calculate the tension, we must calculate the acceleration of the system.

Begin with a summation of forces:

∑F = -M₁gsinФ + T - T + M₂g

Simplify and solve for acceleration: (Tensions cancel out)

$a = \frac{-M_1gsin\theta + T - T + M_2g}{M_1+M_2}$

Plug in values. Let g = 10 m/s²

$a = \frac{-3(10)(sin30)+8(10)}{3+8} = 5.91 m/s^{2}$

Now, to find tension, let's sum up the forces acting on ONE block. For simplicity, we can look at the hanging block:

∑F = -T + W

ma = -T + W

Rearrange to solve for T:

T = W - ma

We know the acceleration, so plug in the values:

T = (8)(10) - (8)(5.91) = 32.73 N

3 0
