For the following circuit, V"#$=120∠30ºV.Redraw the circuit in your solution.a.(4) Calculate the total input impedance seen by t

he source. Express in rectangular form.b.(3) Calculate the input phasor current(express answer in polar form).c.(6) Using the voltage division, calculate the phasor voltages across each component. Express final answers in polar form.d.(6) Using current divider, calculate phasor currents through L1, and C1.Show all steps. Express final answers in polar form

Engineering
1 answer:
olchik [2.2K]3 years ago
8 0

Answer:

Check the explanation

Explanation:

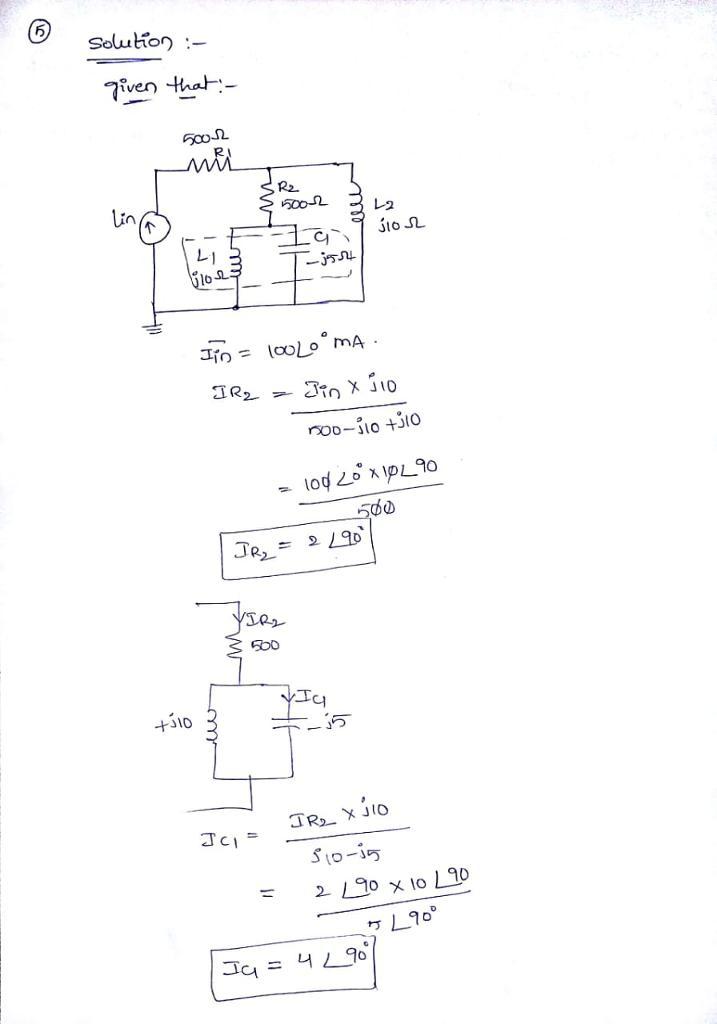

Kindly check the attached images for the step by step explanation to the question

You might be interested in
What historical event allowed both aerospace fields to make enormous strides<br> forward? *
galina1969 [7]

Answer:

The world wars. Most notably world War II

Explanation:

The demand for aircrafts during these events led to extensive research into the design of aircrafts. Aircraft advanced within these years from a simple design to a more complex design; capable of carrying fire power and even became bomb equipped. Also, the material of choice of production moved from wood to metal and the engine was improved on to gain more speed and maneuverability.

6 0
4 years ago
The beam is supported by a pin at A and a roller at B which has negligible weight and a radius of 15 mm. If the coefficient of s
Anettt [7]

Answer:

33.4

Explanation:

Step 1:

\sumMo=0 (moment about the origin)

Fb(15)-Fc(15)=0

Fb=Fc

Step 2:

\sumFx=0

-Fb-Fccos\theta+Ncsin\theta=0

Fc=0.3Nc=Fb

-0.3Nc-0.3Nccos\theta+Ncsin\theta=0

(-0.3-cos\theta+sin\theta)Nc=0----(1)

\sumFy=0

Nccos\theta+Fcsin\theta-Nb=0

Nccos\theta+0.3Ncsin\theta-Nc=0

Nc[cos\theta+0.3sin\theta-1]=0--------(2)

Solving eq (1) and eq (2)

\theta=33.4

Step 3:

As the roller is a two force member

2(90-\phi)+\theta=180

\phi=\theta/2

\phi=Tan(\muN/N)-1

\phi=16.7

\theta=2x16.7=33.4

5 0
3 years ago
Teachers
IRINA_888 [86]
Uh I’m just gonna say yes because I think this is just something random
5 0
3 years ago
Complete the function ConvertToWeeksAndDays to convert totalDays to weeks and days. Return weeks and days using the ElapsedWeekD
mafiozo [28]

The program is an illustration of functions.

Functions are group of code blocks that perform as one

The ConvertToWeeksAndDays() function in python where comments are used to explain each line is as follows:

#This defines the ConvertToWeeksAndDays function

def ConvertToWeeksAndDays(totalDays):

   #This calculates the number of weeks

   weeks = totalDays//7

   #This calculates the number of days

   days = totalDays %7

   #This prints the number of weeks and days

   print(weeks,"weeks and",days,"days")

Read more about similar programs at:

brainly.com/question/25223400

7 0
3 years ago
0 - 1"<br> -20<br> -15<br> -10<br> 5<br> 0 1 2 3<br> 0
faust18 [17]

Answer:

#WeirdestQuestionOfAllTime

Explanation:

8 0
