If you are setting up a race car. What is the cross weight? Does it matter?

Engineering

1 answer:

lara31 [8.8K]4 years ago

7 0

Answer:

cross-weight is used to tighten it up.

Explanation:

and yes this is important because Cross-weight percentage compares the diagonal weight totals to the car's total weight.

hope this help

(mark this answer as an brainliest answer)

You might be interested in

An overhead 25m long, uninsulated industrial steam pipe of 100mm diameter is routed through a building whose walls and air are a

DedPeter [7]

Answer:

a) he rate of heat loss from the steam line is 18.413588 kW

b) the annual cost of heat loss from line is $12904.25

Explanation:

first we find the area

A = πdL

d is the diameter (0.1m) and L is the length (25m)

A = π × 0.1 × 25

A = 7.85 m²

Now rate of heat loss through convection

qconv = hA(Ts -Ta)

h is the convective heat transfer coefficient (10 W/m²K), Ts is surface temperature (150°), Ta is temperature of air (25°)

so we substitute

qconv = 10 W/m²K × 7.85 m² × ( 150° - 25°)

qconv = 9817.477 J/s

Now heat lost through radiation

qrad = ∈Aα ( Ts⁴ - Ta⁴)

∈ is the emissivity (0.8), α is the boltzmann constant ( 5.67×10⁻⁸m⁻²K⁻⁴ ),

first we shall covert our temperatures from Celsius to kelvin scale

Ts is surface temperature (150 + 273K ), Ta is temperature of air (25 + 273K)

so we substitute

qrad = 0.8 × 7.854 × 5.67×10⁻⁸ × ( (423)⁴ - (298)⁴ )

qrad = 3.5625×10⁻⁷ × 2.413×10¹⁰

qrad = 8596.112 J/s

Now to get the total rate of heat loss through convection and radiation, we say

q = qconv + qrad

q = 9817.477 + 8596.112

q = 18413.588 J/s ≈ 18.413588 kW

Therefore the rate of heat loss from the steam line is 18.413588 kW

annual cost of heat lost rate

A = C × q/n × ( 3600 × 24 × 365 )

C is the cost of heat per MJ( $0.02/10⁶) n is broiler efficiency ( 0.9)

so we substitute

A = 0.02/10⁶ × 18413.588/0.9 × ( 3600 × 24 × 365 )

A = $12904.25

Therefore the annual cost of heat loss from line is $12904.25

4 0

3 years ago

As a new engineer hired by a company, you are asked evaluate an existing separation process for ethyl alcohol (ethanol) and wate

yanalaym [24]

C. Liquid- liq uid extraction

5 0

3 years ago

The steady-state data listed below are claimed for a power cycle operating between hot and cold reservoirs at 1200K and 400K, re

Anni [7]

Answer:

a) W_cycle = 200 KW , n_th = 33.33 % , Irreversible

b) W_cycle = 600 KW , n_th = 100 % , Impossible

c) W_cycle = 400 KW , n_th = 66.67 % , Reversible

Explanation:

Given:

- The temperatures for hot and cold reservoirs are as follows:

TL = 400 K

TH = 1200 K

Find:

For each case W_cycle , n_th ( Thermal Efficiency ) :

(a) QH = 600 kW, QC = 400 kW

(b) QH = 600 kW, QC = 0 kW

- Determine whether the cycle operates reversibly, operates irreversibly, or is impossible.

Solution:

- The work done by the cycle is given by first law of thermodynamics:

W_cycle = QH - QC

- For categorization of cycle is given by second law of thermodynamics which states that:

n_th < n_max ...... irreversible

n_th = n_max ...... reversible

n_th > n_max ...... impossible

- Where n_max is the maximum efficiency that could be achieved by a cycle with Hot and cold reservoirs as follows:

n_max = 1 - TL / TH = 1 - 400/1200 = 66.67 %

And, n_th = W_cycle / QH

a) QH = 600 kW, QC = 400 kW

- The work done by cycle according to First Law is:

W_cycle = 600 - 400 = 200 KW

- The thermal efficiency of the cycle is given by n_th:

n_th = W_cycle / QH

n_th = 200 / 600 = 33.33 %

- The type of process according to second Law of thermodynamics:

n_th = 33.333 % n_max = 66.67 %

n_th < n_max

Hence, Irreversible Process

b) QH = 600 kW, QC = 0 kW

- The work done by cycle according to First Law is:

W_cycle = 600 - 0 = 600 KW

- The thermal efficiency of the cycle is given by n_th:

n_th = W_cycle / QH

n_th = 600 / 600 = 100 %

- The type of process according to second Law of thermodynamics:

n_th = 100 % n_max = 66.67 %

n_th > n_max

Hence, Impossible Process

c) QH = 600 kW, QC = 200 kW

- The work done by cycle according to First Law is:

W_cycle = 600 - 200 = 400 KW

- The thermal efficiency of the cycle is given by n_th:

n_th = W_cycle / QH

n_th = 400 / 600 = 66.67 %

- The type of process according to second Law of thermodynamics:

n_th = 66.67 % n_max = 66.67 %

n_th = n_max

Hence, Reversible Process

7 0

3 years ago

A capillary tube is immersed vertically in a water container. Knowing that water starts to evaporate when the pressure drops bel

Anuta_ua [19.1K]

Answer:

$d=0.414\times 10^{-4}\ m$

Explanation:

Given that

P = 4 KPa

Contact angle = 6°

Surface tension = 1 N/m

Lets assume that atmospheric pressure = 100 KPa

Lets take that density of water = $1000\ kg/m^3$

So the capillarity rise h

$h=\dfrac{\Delta P}{\rho g}$

$h=\dfrac{100\times 1000-4\times 1000}{1000\times 10}$

h= 9.61 m

We know that for capillarity rise h

$h=\dfrac{2\sigma cos\theta }{r\rho g}$

$r=\dfrac{2\sigma cos\theta }{h\rho g}$

$r=\dfrac{2\times 1 cos4^{\circ} }{9.61\times 1000\times 10}$

$r=0.207\times 10^{-4}\ m$

$d=0.414\times 10^{-4}\ m$

3 0

3 years ago

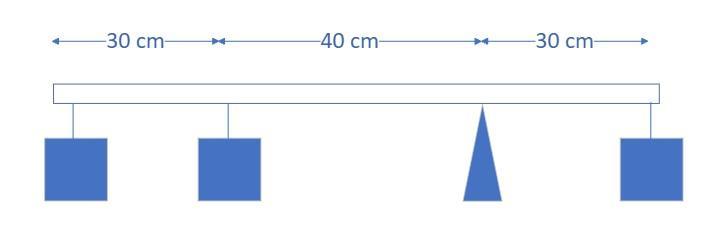

Three masses are attached to a uniform meter stick, as shown in Figure 12.9. The mass of the meter

sp2606 [1]

At equilibrium, the sum of clockwise and anticlockwise moments about a point is zero

The mass of that balances the system is $\underline {316.\overline 6}$ kg

The normal reaction force at the fulcrum is <u>5,804.25 N</u>

Rason:

The mass of the stick = 150.0 g

Mass m₁ on the left = 50.0 g, location = 30 cm to the left of m₂

Mass m₂ on the left = 75.0 g, location = 40 cm to the left of the fulcrum

Mass m₃ on the right of the fulcrum. location = 30 cm to the right of the fulcrum

Required:

To find the mass of m₃

Solution:

Taking moment about the fulcrum, we have;

50 × (30 + 40) + 75 × (40) + 150 × 20 = m₃ × 30

9,500 = m₃×30

$m_3 = \dfrac{9,500}{30} = 316. \overline 6$

The mass of that balances the system when it is attached at the right end of the stick, m₃ = $316.\overline 6$ kg

Normal reaction at the fulcrum = (50 + 75 + 150 + $316.\overline 6$ ) × 9.81 = 5804.25

The normal reaction at the fulcrum is 5,804.25 N
