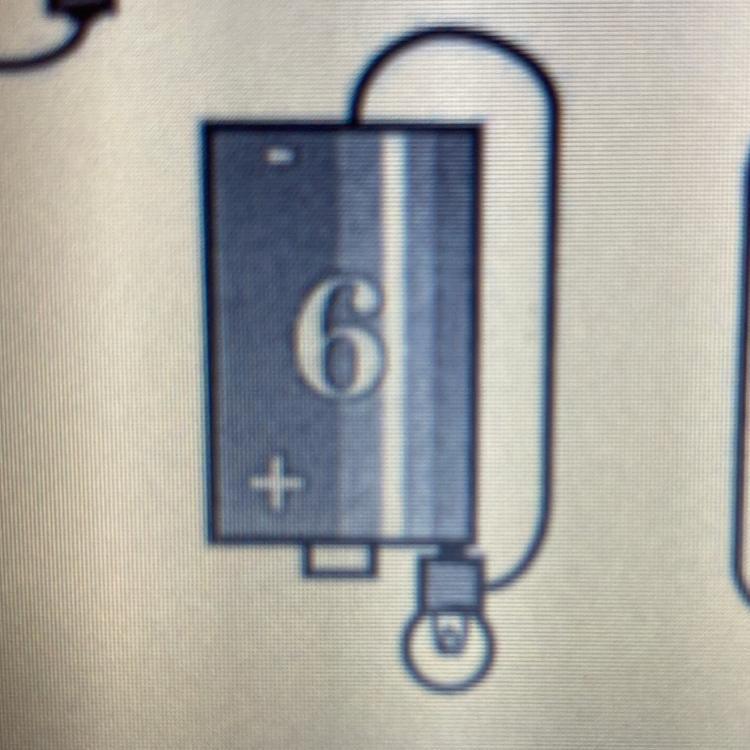

Why would the bulb not light?

Physics

2 answers:

Norma-Jean [14]3 years ago

6 0

Im not sure this is correct but, i think thats because the wire connected at the negative side. The current go from positive to negative and thats why the bulb not light, also the bulb location is not at the center of the battery which explain why there's no current at the upper side.

Hope you understand. Sorry if my english sucks YEET

cestrela7 [59]3 years ago

3 0

The light bulb isn't connected to the positive thing sticking out of the battery, both ends must connect back to the battery

You might be interested in

what is the resistance of a car light bulb that conducts 0.025A current when connected to a 12V car accumulator? is the current

Sophie [7]

One form of Ohm's Law says . . . . . Resistance = Voltage / Current .

R = V / I

R = (12 v) / (0.025 A)

R = (12 / 0.025) (V/I)

R = 480 Ohms

I don't know if the current in the bulb is steady, because I don't know what a car's "accumulator" is. (Floogle isn't sure either.)

If you're referring to the car's battery, then the current is quite steady, because the battery is a purely DC storage container.

If you're referring to the car's "alternator" ... the thing that generates electrical energy in a car to keep the battery charged ... then the current is pulsating DC, because that's the form of the alternator's output.

7 0

3 years ago

Consider a transformer. used to recharge rechargeable flashlight batteries, that has 500 turns in its primary coil, 3 turns in i

Rashid [163]

Answer:

a) 0.72 V

b) 19.2 mA

c) 2.304 Watts

Explanation:

A transformer is used to step-up or step-down voltage and current. It uses the principle of electromagnetic induction. When the primary coil is greater than the secondary coil, the it is a step-down transformer, and when the primary coil is less than the secondary coil, the it is a step-up transformer.

number of primary turns = $N_{p}$ = 500 turns

input voltage = $V_{p}$ = 120 V

number of secondary turns = $N_{s}$ = 3 turns

output voltage = $V_{s}$ = ?

using the equation for a transformer

$\frac{V_{s} }{V_{p} } = \frac{N_{s} }{N_{p} }$

substituting values, we have

$\frac{V_{s} }{120 } = \frac{3 }{500} }$

$500V_{p} = 120*3\\500V_{p} = 360$

$V_{p}$ = 360/500 = 0.72 V

b) by law of energy conservation,

$I_{P}V_{p} = I_{s}V_{s}$

where

$I_{p}$ = input current = ?

$I_{s}$ = output voltage = 3.2 A

$V_{s}$ = output voltage = 0.72 V

$V_{p}$ = input voltage = 120 V

substituting values, we have

120 $I_{p}$ = 3.2 x 0.72

120 $I_{p}$ = 2.304

$I_{p}$ = 2.304/120 = 0.0192 A

= 19.2 mA

c) power input = $I_{p} V_{p}$

==> 0.0192 x 120 = 2.304 Watts

7 0

3 years ago

A bicycle rider traveling east at 10 km/hr sees a blue car pass her appearing to travel west at 50 km/hr. What is the blue car's

BigorU [14]

Answer:

$v_{bR} = 25 km/h$ towards west

Explanation:

As we know that the speed of the blue car as appear to the bicycle rider is given as

$v_{bc} = 50 km/h$ towards west

also it is given that bicycle is moving at speed of 10 km/h towards East

so here we have

$v_{bc} = v_b - v_c$

so we have

$v_b = v_{bc} + v_c$

$v_b = -50 + 10 = 40 km/h$ towards west

now speed of the red car is given as 15 km/h towards west

so here the relative speed of blue car with respect to red car is given as

$v_{bR} = v_b - v_R$

$v_{bR} = 40 - 15 = 25 km/h$ towards west

8 0

4 years ago

A refrigerator is being pulled up a ramp with a horizontal force P, which acts at the top corner. The refrigerator has a mass of

vaieri [72.5K]

Answer:

(a) P = 459.055 N.

(b) the refrigerator tips.

Explanation:

Given, the angle of ramp is 20°.

When the weight of refrigerator is resolved in directions parallel and perpendicular to ramp, 75×g×sin(20°) and 75×g×cos(20°).

⇒ normal contact force is 75×g×cos(20°).

⇒ frictional force is 0.3×75×g×cos(20°) = 207.414 N

so, total opposite force is 207.414 + 75×g×sin(20°) = 459.055 N.

so, the force needed is P = 459.055 N

And as the moment due to both opposite force and P force are in same direction the refrigerator tips rather than just sliding.

4 0

4 years ago

Relative formula mass of CuCO3

Elodia [21]

AnMolar mass of CuCO3 = 123.5549 g/mol

This compound is also known as Copper(II) Carbonate.

Convert grams CuCO3 to moles or moles CuCO3 to grams

Molecular weight calculation:

63.546 + 12.0107 + 15.9994*3

Percent composition by element

Element Symbol Atomic Mass # of Atoms Mass Percent

Copper Cu 63.546 1 51.431%

Carbon C 12.0107 1 9.721%

Oxygen O 15.9994 3 38.848%

Explanation:

5 0
