A long conducting rod of rectangular cross section (20 mm 30 mm) and thermal conductivity k 20 W/m K experiences uniform heat ge
neration at a rate q . 5 107 W/m3, while its surfaces are maintained at 300 K. Using a finite-difference method with a grid spacing of 5 mm, determine the temperature distribution in the rod.
1 answer:
Answer:
Explanation:
We are assuming that there is
a steady state two dimensional conduction
constant properties
uniform volumetric heat generation
From symmetry, we will be determining 6 unknown temperatures.

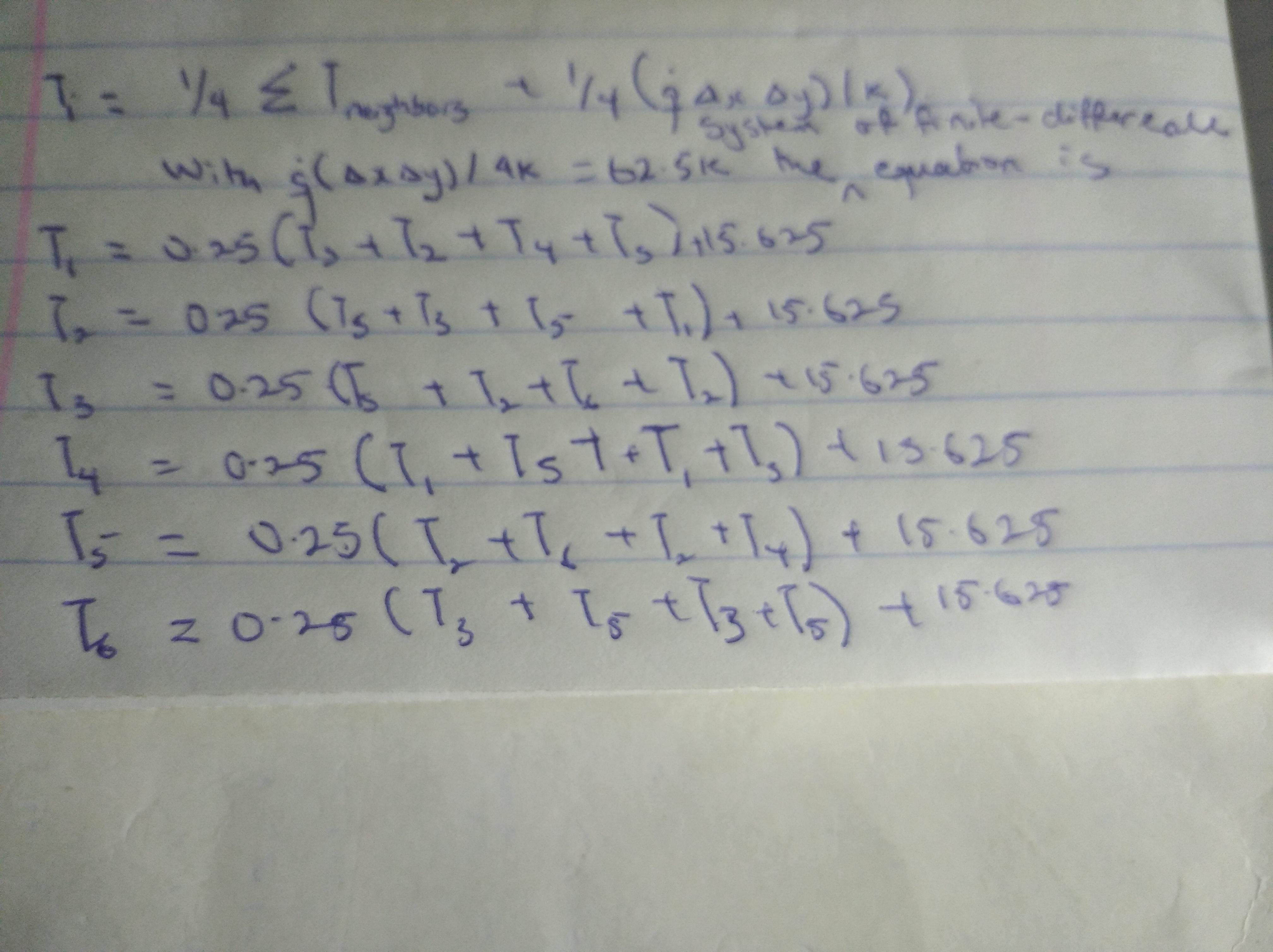

See attachment for calculation and and tabulation
With T(s) = 300 K, the set of equations were written directly into the IHT work space and solved for nodal temperatures.
The result is seen in the second attachment
