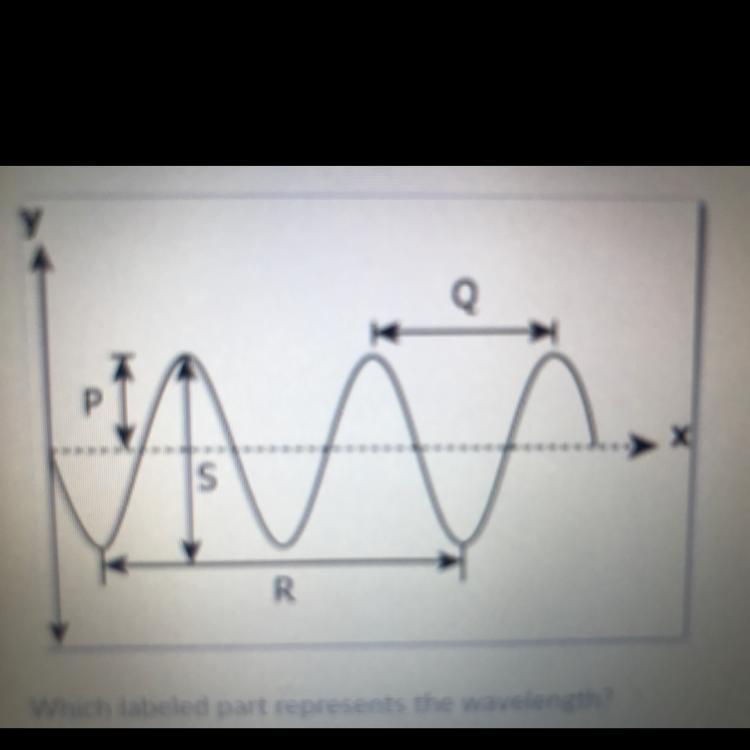

Amanda studies a waveform. She labels parts of the waveform using variables (P,Q,R, and S), as shown in the image.

Physics

1 answer:

Ivan3 years ago

6 0

Answer:

Explanation:

To know which symbol defines the wavelength, we must know the definition of wavelength.

Wavelength can be defined as the distance between two successive crests (i.e the highest part) or troughs (the lowest part) of a wave.

Considering the diagram given above, Q shows the distance between two successive crests (i.e the highest part) of the wave. Therefore, Q is the wavelength of the wave given in the diagram above.

You might be interested in

A horizontal black line at left labeled A has a blue arrow pointing down to it and another blue arrow pointing down from it. A h

never [62]

Answer:

The Correct answer is B

7 0

4 years ago

Read 2 more answers

Transforma la siguiente unidad al sistema internacional:<br> 37 ft3

tigry1 [53]

F up HC Chi UC Chi UC CI UC CJ

3 0

3 years ago

What is the speed of a bobsled whose distance-time graph indicates that it traveled 114m in 30s? m/s

Kitty [74]

3.8 m/s
--------------

5 0

3 years ago

A tray is moved horizontally back and forth in simple harmonic motion at a frequency of f = 2.07 Hz. On this tray is an empty cu

Anettt [7]

Answer:

Explanation:

Given

Frequency of SHM is $f=2.07\ Hz$

Amplitude of SHM is $A=3.13\ cm$

Cup begins to slip when it overcomes the friction force

Friction force $F_s=\mu mg$

Applied force $F=ma$

$ma=\mu mg$

$a=\mu g$

and maximum acceleration during SHM is

$a=A\omega ^2$

$a=A(2\pi f)^2$

$a=3.13\times 10^{-2}\times (2\pi 2.07)^2$

$a=5.296\ m/s^2$

$\mu =\frac{a}{g}$

$\mu =\frac{5.296}{9.8}=0.54$

6 0

4 years ago

Read 2 more answers

Please help

Hitman42 [59]

Answer:

3200 m/s

Explanation:

The speed of Sound through Argon is 319.

The speed of sound in any chemical element in the fluid phase has one temperature-dependent value. In the solid phase, different types of sound wave may be propagated, each with its own speed: among these types of wave are longitudinal (as in fluids), transversal, and (along a surface or plate) extensional.

If argon could exist as solid, then 3200 m/s is the best speed.

7 0
