yawa3891 [41]
3 years ago
5

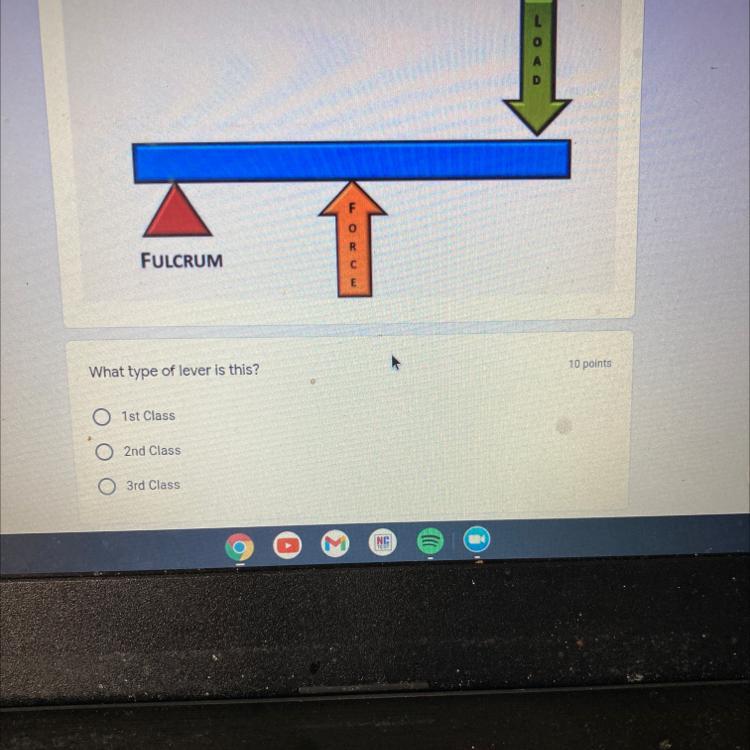

Questions on the photo

Physics
1 answer:
White raven [17]3 years ago
8 0

Answer:

Option C: Third Class

Explanation:

This is third class because the effort or the input force is in the middle between the fulcrum and the load.

You might be interested in
What happan Similar poles of two magnets one another ?​
Marianna [84]

repal postive to postive or negitve to negtive

6 0
3 years ago
Read 2 more answers
Which of the following factors affect the pressure of an enclosed gas?
dimulka [17.4K]

Answer:

D. All of the above.

Explanation:

PV=nRT

3 0
3 years ago
A town is exploring the option of generating hydroelectric power from a stream. What is the maximum available power in a waterfa
tester [92]
The power is equal to energy transferred per unit time.
So, here power will be due to potential energy of the water kept at a certain height. And water is flowing down at the given flow rate.

The flow rate of water is 200kg/s
And the height given is : 15m

So, we calculate the potential energy as: mgh
Where m is the mass,
g is acc due to gravity = 9.8m/s
h is the height

So, potential energy = 200kg*9.8*15
= 29,400 J

Therefore, the maximum power generated is 29400 J/sec = 29400 Watts
8 0
4 years ago
Read 2 more answers
A block on the end of a spring is pulled to position x 5 A and released from rest. In one full cycle of its motion, through what
vesna_86 [32]

Answer:

20 A

Explanation:

Given

Spring pulled from position

x = 5A

we need to calculate total distance of one full cycle  of spring motion

if you see image below, you understand easily

When cycle complete

Its total distance become 20 A

5 0
3 years ago
An asteroid of mass 5.7×104 kg carrying a negative charge of 14.0 μC is 190 m from a second asteroid of mass 5.5×104 kg carrying
Finger [1]

Answer:

repulsion force es  R = 5,224 10⁻³ N

Explanation:

We use Newton's second law to add forces, the elective force is repulsive because the asteroids have the same type of charge and gravitational force is always attractive.

Gravitational force

      Fg = G m1 m2 / r²

      Fg = 6,673 10⁻¹¹ 5.7 10⁴ 5.5 10⁴/190²

      Fg = 5,795 10⁻⁶ N

Electric force

     Fe = k q1 q2 / r²

     Fe = 8.99 10⁹ 14.0 10⁻⁶ 15.0 10⁻⁶ / 190²

     Fe = 5.2296 10⁻³ N

The resulting force is

     R = Fe - Fg

     R = 5.2296 10⁻³ - 5.795 10⁻⁶=  5229.6 10⁻⁶ - 5,795 10⁻⁶

     R = 5,224 10⁻³ N

this is a repulsive force and the asteroids move away from each other

7 0
3 years ago
