Question

A -4.00 nC point charge is at the origin, and a second -5.50 nC point charge is on the x-axis at x = 0.800 m.

Answer 1

Answer:

a. $f=1.22*10^{-15} N$

b. $f=53.6*10^{-17} N$

Explanation:

The force existing between two charges is given as

$f=\frac{kq_{1}q_{2}}{r^{2}}$

where q= charge,

k=constant

r= distance between the two charges

Note: this force can either be repulsive or attractive force depending on the charges involve. it is repulsive if they are similar charge and it is attractive if it is opposite charges.

Also the charge of an electron is

$-1.602*10^{-19}$

A. we first determine the magnitude force between the -4nC and the electron

$f_{21}=\frac{kq_{1}q_{2}}{r^{2}}\\f_{21}=\frac{9*10^{10} 4*10^{-9} *1.602*10^{-19} }{0.2^{2}}\\f_{21}=\frac{57.67*10^{-18} }{0.04}\\f_{21}=1.44*10^{-15}Ni$

this force will be repulsive force and it points away from the electron i.e points towards the +ve x-axis

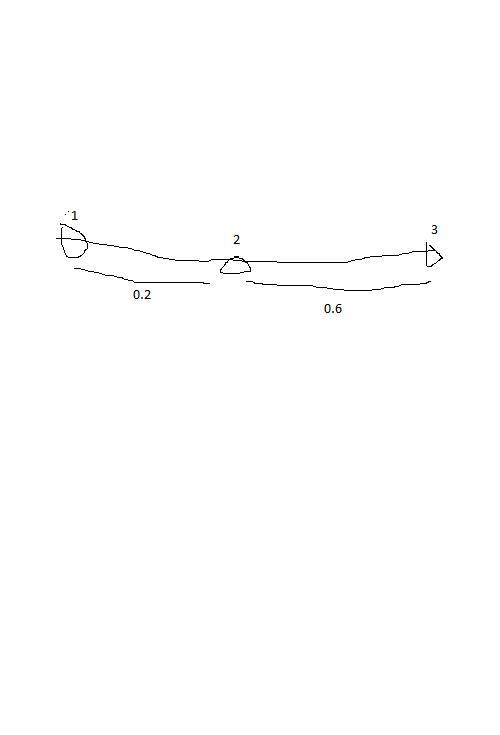

for the -5.50nC the distance between them is 0.600m as can be seen in the diagram the magnitude of the force is

$f_{23} =\frac{kq_{1}q_{2}}{r^{2}}\\f_{23}=\frac{9*10^{10} 5.50*10^{-9} *1.602*10^{-19} }{0.6^{2}}\\f_{23}=\frac{79.3*10^{-18} }{0.36}\\f_{23}=-(0.22*10^{-15})N i$

this this force will be repulsive force and it points away from the electron i.e points towards the -ve x-axis.

The total net force on the electron is thus

$f=f_{21}+f_{23}\\ f=1.44*10^{-15}-0.22*10^{-15}\\ f=1.22*10^{-15} N$

b. at  distance of x=1.20m, this is shown on the diagram below (attachment 2)

we first determine the magnitude force between the -4nC and the electron

$f_{21}=\frac{kq_{1}q_{2}}{r^{2}}\\f_{21}=\frac{9*10^{10} 4*10^{-9} *1.602*10^{-19} }{1.2^{2}}\\f_{21}=\frac{57.67*10^{-18} }{1.44}\\f_{21}=4.0*10^{-17}Ni$

this force will be repulsive force and it points away from the electron i.e points towards the +ve x-axis.

for the -5.50nC the distance between them is 0.4m as can be seen in the diagram the magnitude of the force is

$f_{23} =\frac{kq_{1}q_{2}}{r^{2}}\\f_{23}=\frac{9*10^{10} 5.50*10^{-9} *1.602*10^{-19} }{0.4^{2}}\\f_{23}=\frac{79.3*10^{-18} }{0.16}\\f_{23}=49.6*10^{-17}Ni$

this this force will be repulsive force and it points away from the electron i.e points towards the +ve x-axis.

The total net force on the electron is thus

$f=f_{21}+f_{23}\\ f=4.0*10^{-15}+49.6*10^{-17}\\ f=53.6*10^{-17} N$
