Anit [1.1K]
3 years ago
10

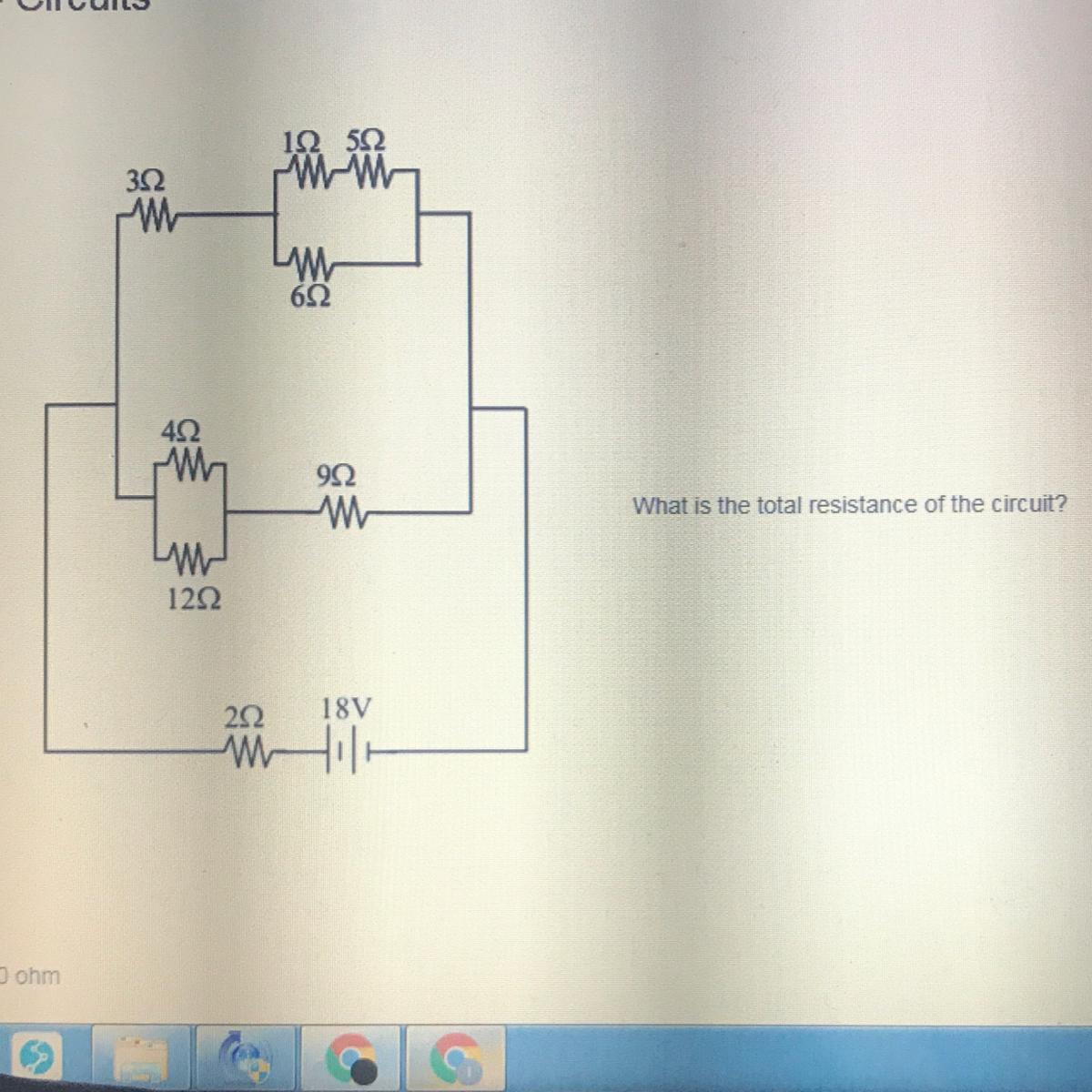

WILL GIVE BRAINLEST!!! what is the total resistance and total current of the circuit.

Physics
1 answer:
Virty [35]3 years ago
6 0

Answer: 6Ω

Explanation:

top line 1Ω in series with 5Ω = 6Ω

6Ω in parallel with 6Ω = 3Ω

3Ω in series with 3Ω is 6Ω

this 6Ω is in parallel with the middle line which is

4Ω in parallel with 12Ω = 3Ω

3Ω in series with 9Ω is 12Ω

This mean the top and middle are equivalent to 6Ω in parallel with 12Ω = 4Ω

This 4Ω is in series with the bottom line 2Ω to make 6Ω

Series equivalent Re = R₁ + R₂

Parallel equivalent Re = 1 / (1/R₁ + 1/R₂)
