Question in Probability and Statistics 2

Engineering

1 answer:

Ghella [55]3 years ago

7 0

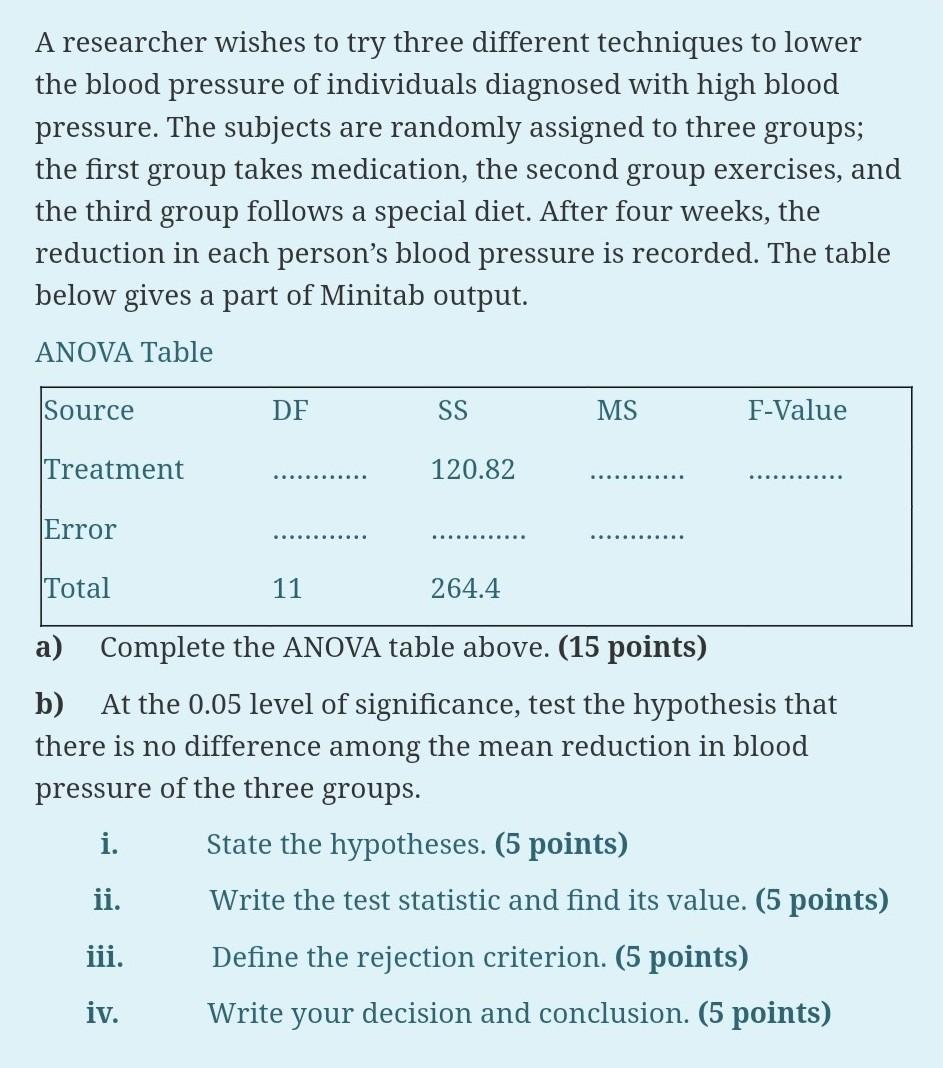

Since we both have a question in same subject may u help me with this For a confidence level of 80% with a sample size of 21, find the critical t value

You might be interested in

What are the four causes of electrical faults?

Arada [10]

Answer:

Electrical faults are also caused due to human errors such as selecting improper rating of equipment or devices, forgetting metallic or electrical conducting parts after servicing or maintenance, switching the circuit while it is under servicing, etc.

Explanation:

6 0

3 years ago

The inner surface of a hollow cylinder is subjected to tangential and axial stresses of 40,000 and 24,000 psi, respectively. Det

Furkat [3]

Answer:

15,000 psi

Explanation:

The solution / solving is attach below.

5 0

3 years ago

A pipeline (NPS = 14 in; schedule = 80) has a length of 200 m. Water (15℃) is flowing at 0.16 m3/s. What is the pipe head loss f

dangina [55]

Answer:

Head loss is 1.64

Explanation:

Given data:

Length (L) = 200 m

Discharge (Q) = 0.16 m3/s

According to table of nominal pipe size , for schedule 80 , NPS 14, pipe has diameter (D)= 12.5 in or 31.8 cm 0.318 m

We know, $head\ loss = \frac{f L V^2}{( 2 g D)}$

where, f = Darcy friction factor

V = flow velocity

g = acceleration due to gravity

We know, flow rate Q = A x V

solving for V

$V = \frac{Q}{A}$

$= \frac{0.16}{\frac{\pi}{4} (0.318)^2} = 2.015 m/s$

obtained Darcy friction factor

calculate Reynold number (Re) ,

$Re = \frac{\rho V D}{\mu}$

where, $\rho$ = density of water

$\mu$ = Dynamic viscosity of water at 15 degree C = 0.001 Ns/m2

so reynold number is

$Re = \frac{1000\times 2.015\times 0.318}{0.001}$

= 6.4 x 10^5

For Schedule 80 PVC pipes , roughness (e) is 0.0015 mm

Relative roughness (e/D) = 0.0015 / 318 = 0.00005

from Moody diagram, for Re = 640000 and e/D = 0.00005 , Darcy friction factor , f = 0.0126

Therefore head loss is

$HL = \frac{0.0126 (200)(2.015)^2}{( 2 \times 9.81 \times 0.318)}$

HL = 1.64 m

7 0

4 years ago

Am I alive I really need to know?

Nesterboy [21]

Hell no,cause i’m not

5 0

3 years ago

In particular, a system may or may not be (1) Memoryless, (2) Time invariant, (3)Linear, (4) Casual, (5) Stable.

egoroff_w [7]

Answer:

a. True

Explanation:

A system may be sometimes casual, time invariant, memoryless, stable and linear in particular.

Thus the answer is true.

A system is casual when the output of the system at any time depends on the input only at the present time and in the past.

A system is said to be memoryless when the output for each of the independent variable at some given time is fully dependent on the input only at that particular time.

A system is linear when it satisfies the additivity and the homogeneity properties.

A system is called time invariant when the time shift in the output signal will result in the identical time shift of the output signal.

Thus a system can be time invariant, memoryless, linear, casual and stable.

4 0
