leva [86]
3 years ago
14

Hey guys I have been seeing this question going up and I have the same one so I was wondering if someone else knows the answer?

Thanks, Brainiest if correct!

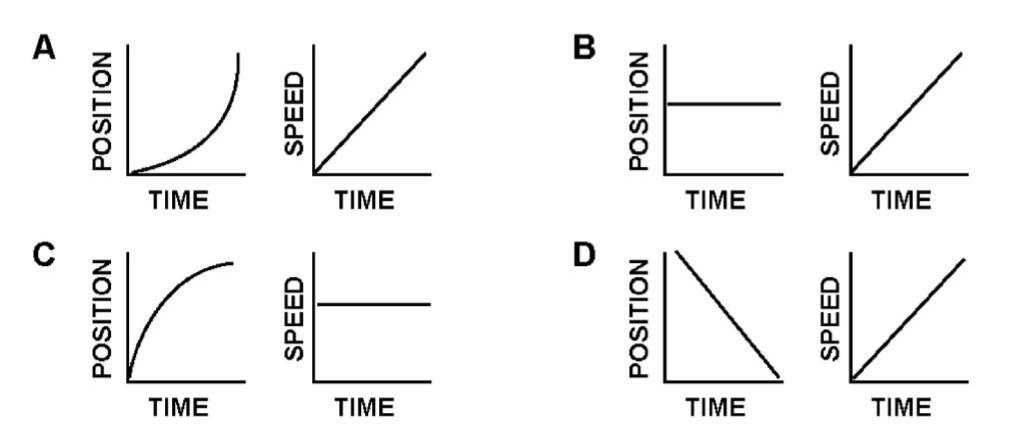

Which one of these pair of graphs represent the same motion?

Physics
1 answer:
erastova [34]3 years ago
3 0

Answer: B is DEFINITELY the answer no doubt about it!

You might be interested in
Alcohol of mass 33.2g and density 0.79kg/m³ or 790kg/m³ is mixed with water of 9g. What is the density of the resulting mixture?
KATRIN_1 [288]

Answer:

  0.83 g/cm³

Explanation:

The volume of the alcohol is ...

  (33.2 g)/(0.79 g/cm³) ≈ 42.0253 cm³

The density of water is about 1 g/cm³, so the volume of 9 g of it is ...

  (9 g)/(1 g/cm³) = 9 cm³

The total volume is ...

  42.0253 cm³ +9 cm³ = 51.0253 cm³

The total mass is ...

  33.2 g + 9 g = 42.4 g

So, the resulting density is ...

  (42.4 g)/(51.0253 cm³) ≈ 0.83 g/cm³

The resulting mixture has a density of about 0.83 g/cm³.

_____

<em>Additional comment</em>

Alcohol dissolves in water, so the total volume will be slightly less than 51.0253 cm³. The attached curve shows the result of mixing ethanol and water.

The weight of a mole of ethanol is about 46 g, of water, about 18.02 g. Then the mole fraction of alcohol is ...

  (33.2/46)/(33.2/46 +9/18.02) ≈ 0.59

The volume of the mix is then estimated to be (-1.05 cc/mol)(1.221 mol), or about 1.28 cm³ less than the volume indicated above. That brings the density up to about 0.85 g/cm³.

We're not completely sure of the relevance of this calculation, since many of the applicable parameters are not specified. The point is that <em>the density of the mix will probably be slightly more than the value calculated above</em>. YMMV

3 0
3 years ago
A transverse wave on a string is described by the wave function
svp [43]

The period of the transverse wave from what we have here is 0.5

<h3>How to find the period of the transverse wave</h3>

The period of a wave can be defined as the time that it would take for the wave to complete one complete vibrational cycle.

The formula with which to get the period is

w = 4π

where w = 4 x 22/7

2π/T = 4π

6.2857/T = 12.57

From here we would have to cross multiply

6.2857 = 12.57T

divide through by 12.57

6.2857/12.57 = T

0.500 = T

Hence we can conclude that the value of T that can determine the period based on the question is 0.500.

Read more on transverse wave here

brainly.com/question/2516098

#SPJ4

5 0
1 year ago
Describe the initial horizontal and vertical velocity of a horizontally launched projectile on Earth, as well as what happens to
Jobisdone [24]

Answer:

Explained below

Explanation:

To explain this, let's consider a tennis ball being launched from the top of a very high building.

Now, if the tennis ball is launched horizontally without any upward angle but with an initial velocity of 10 m/s. In this motion, If there is no gravity, the tennis ball would continue in motion at that same speed of 10 m/s in the horizontal direction. However, in reality, gravity causes the tennis ball to accelerate downwards at a rate of 9.8 m/s for every second. This implies that the vertical velocity component is changing at the rate of 9.8 m/s every second.

Thus, after 1 second, horizontal velocity component will remain 10 m/s and vertical component will be 9.8 m/s × 1 = 9.8 m/s downwards.

Also, after 2 seconds, the vertical velocity component will remain 10 m/s, however the vertical component will now be 9.8 × 2 = 19.6 m/s downwards.

Same procedure is repeated as t increases by 1 second.

5 0
3 years ago
2. A car accelerates down the road. What is the "reaction" to the tires pushing on the road?
Artist 52 [7]
The answer would be friction
7 0
3 years ago
An object of mass m is hung from a spring and set into oscillation. The period of the oscillation is measured and recorded as T.
sergejj [24]

Answer:\sqrt{2}T

Explanation:

Given

object of mass m is suspended from spring and set in oscillation with time Period T

We know Time period of a mass in oscillation is given by

T=2\pi \sqrt{\frac{m}{k}}

where k=spring constant

When mass m is replaced by a mass of 2 m time period is given by

T'=2\pi \sqrt{\frac{2m}{k}}

T'=\sqrt{2}\times 2\pi \sqrt{\frac{m}{k}}

T'=\sqrt{2}T

i.e. New time period becomes \sqrt{2} times of previous one



7 0
3 years ago
