Explain it if u know please

Physics

2 answers:

Rudik [331]3 years ago

6 0

Answer: B

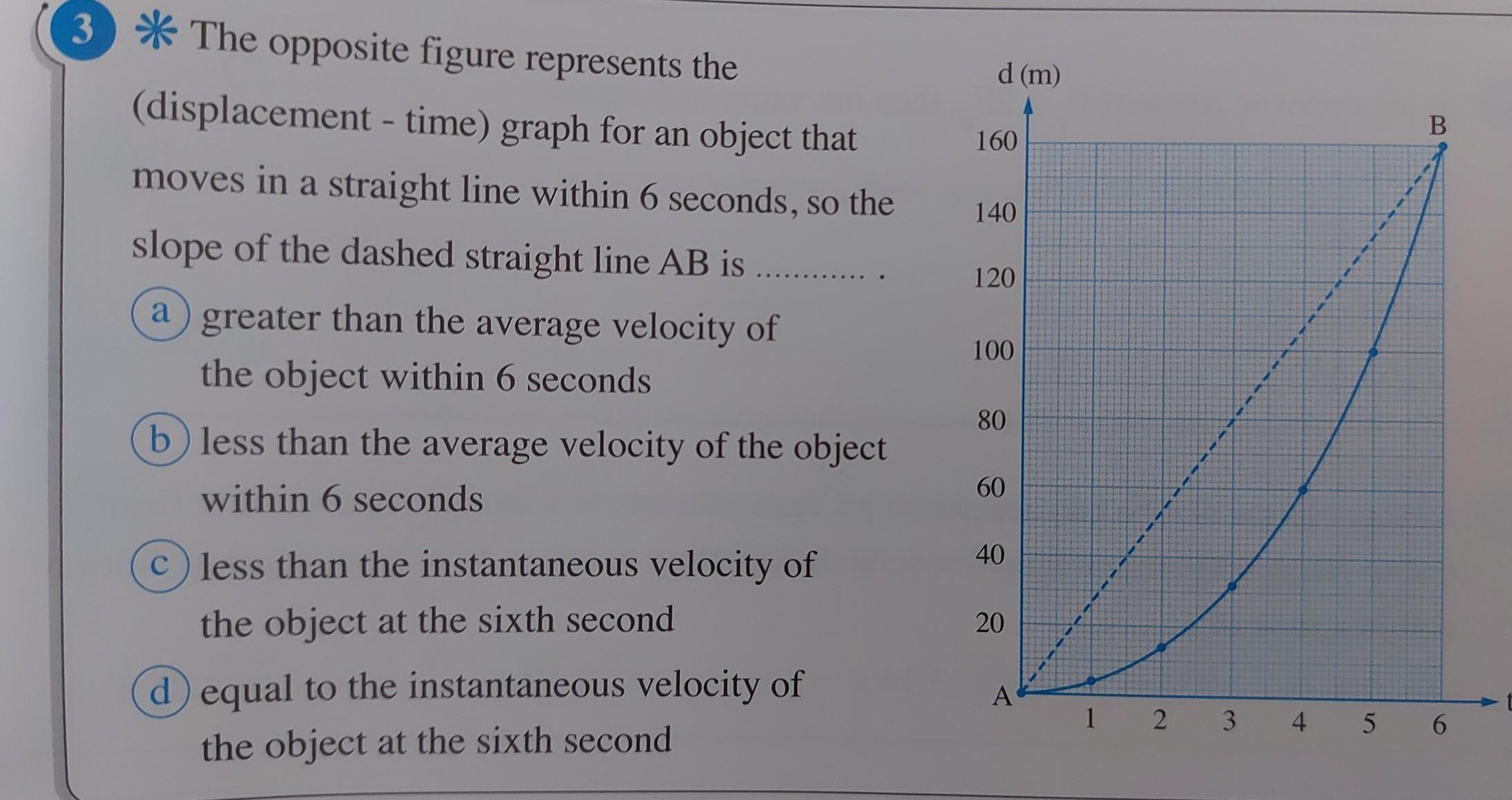

Explanation: The straight line shows the theoretical average of the actual velocity and the curved line show that it is less than the average velocity of the object within 6 seconds.

straight line:

3. 3,80

6. 6,160

curved line:

1,2
2,17
3,32
4,60
5,100
6,160

A.K.A.-- the only place where the straight line and the curved line meet at is only at coordinate 6,160.

CaHeK987 [17]3 years ago

4 0

refer to the attachment!!

You might be interested in

A metallic bond is a bond between a positively charged metal ion and

stira [4]

Answer:

conduction electrons

Explanation:

Metallic bonding is a type of chemical bonding that rises from the electrostatic attractive force between conduction electrons and positively charged metal ions. It may be described as the sharing of free electrons among a structure of positively charged ions.

4 0

3 years ago

Lawson's criterion states that the product of ion density and confinement time must exceed a certain number before a break-even

LekaFEV [45]

According to Lawson's criterion, the outcome is determined by the product of ion density and confinement time because the temperature must be maintained for a sufficient confinement time and with a sufficient ion thickness to obtain a net gain of power from a fusion reaction.

<h3>What are Lawson's criterion?</h3>

The overall conditions that must be met in order to produce more energy than is required for plasma heating are usually expressed in terms of the product of ion density and confinement time, a condition known as Lawson's criterion.

In nuclear fusion devices, confinement time is defined as the amount of time the plasma is kept at a temperature above the critical ignition temperature.

Even at temperatures high enough to overcome the coulomb barrier to nuclear fusion, a critical density of ions must be maintained in order to achieve a net yield of energy from the reaction.

Because the density required for a net energy yield is correlated with the confinement time for hot plasma, the minimum condition for a productive fusion reaction is typically stated in terms of the product of ion density and confinement time, which is known as Lawson's criterion.

To learn more about Lawson's criterion, refer:

brainly.com/question/28303495

#SPJ4

7 0

1 year ago

What force would be needed to make a 10kg bowling ball accelerate down the alleyway with an acceleration of 3m/s2

Anna007 [38]

Answer:

30 N

Explanation:

From Newton's second law:

F = ma

F = (10 kg) (3 m/s²)

F = 30 N

7 0

4 years ago

A 70.0 kg70.0 kg ice hockey goalie, originally at rest, has a 0.170 kg0.170 kg hockey puck slapped at him at a velocity of 41.5

Elza [17]

Answer:

0.2012 m/s

- 41.3 m/s

Explanation:

M = mass of ice hockey goalie = 70 kg

V = initial velocity of the hockey goalie = 0 m/s

V' = final velocity of hockey goalie after collision = ?

m = mass of hockey puck = 0.170 kg

v = initial velocity of hockey puck = 41.5 m/s

v' = final velocity of hockey puck = ?

Using conservation of momentum

M V + m v = M V' + m v'

(70) (0) + (0.170) (41.5) = (70) V' + (0.170) v'

7.055 = (70) V' + (0.170) v'

V' = 0.1008 - 0.00243 v' eq-1

Using conservation of kinetic energy

(0.5) M V² + (0.5) m v² = (0.5) M V'² + (0.5) m v'²

M V² + m v² = M V'² + m v'²

(70) (0)² + (0.170) (41.5)² = (70) V'² + (0.170) v'²

292.8 = (70) V'² + (0.170) v'²

Using eq-1

292.8 = (70) (0.1008 + 0.00243 v')² + (0.170) v'²

v' = - 41.3 m/s

Using eq-1

V' = 0.1008 - 0.00243 v'

V' = 0.1008 - 0.00243 (- 41.3)

V' = 0.2012 m/s

6 0

4 years ago

As the wave interacts with a wall, which kind of wave interaction is shown?

kramer

Reflection-----------------------------

3 0

3 years ago
