In the circuit diagram, what does the symbol made of two Long lines and two short lines with a positive and a negative sign at e

Question

3 years ago

13

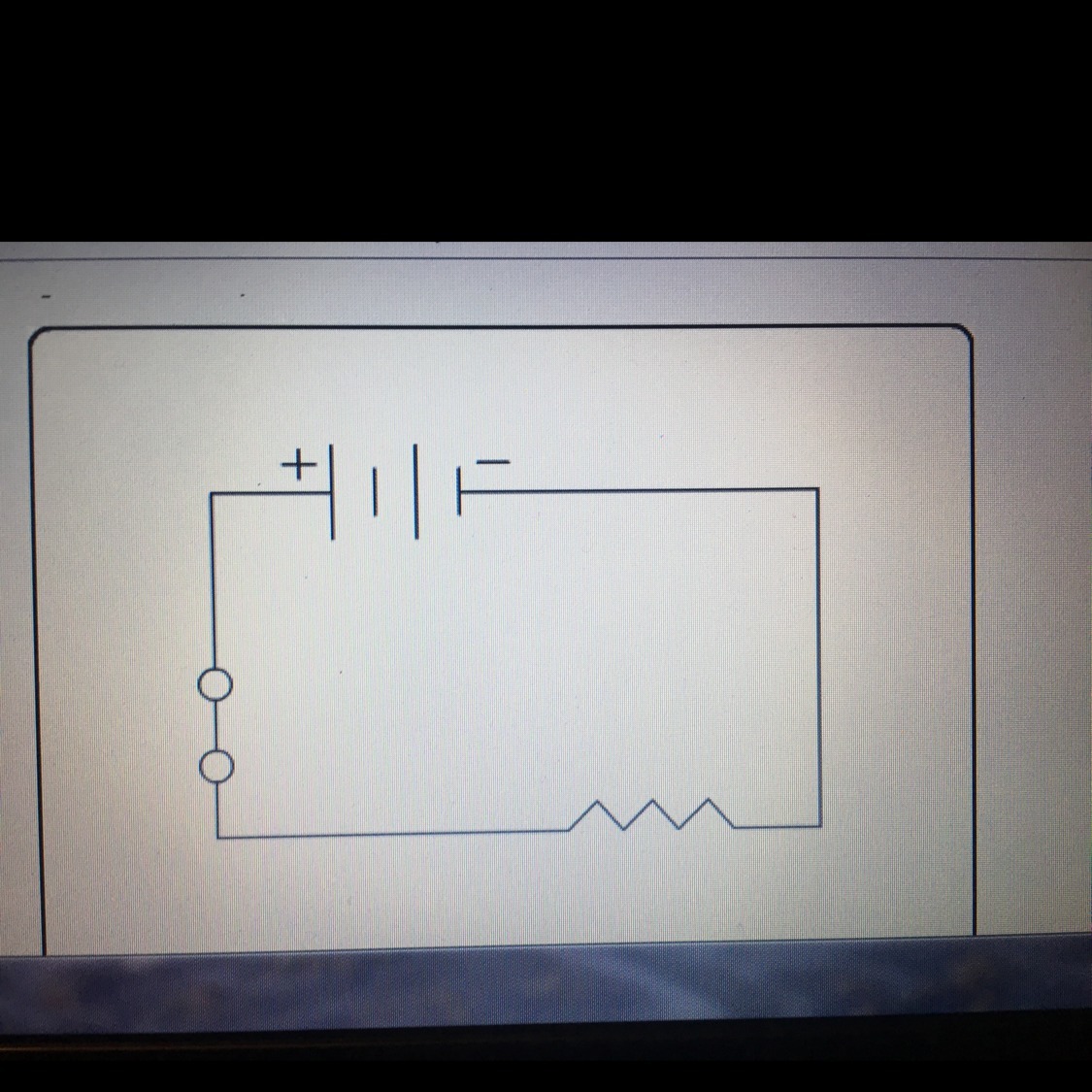

In the circuit diagram, what does the symbol made of two Long lines and two short lines with a positive and a negative sign at e

ach end represents?
A) A source of electrical energy

B) An electrical conductor

C) an electrical resistor

D) A closed switch

PLEASE ASAP. WILL GIVE BRAINLIST AND 20 POINTS

Physics

2 answers:

Svet_ta [14] · Answer 1 · 2022-05-08T10:31:09+03:00

Svet_ta [14]3 years ago

7 0

Yeah it is a source of electric energy

frez [133] · Answer 2 · 2022-05-08T12:58:29+03:00

Answer:

A) A source of electrical energy.

Explanation:

The Symbol of two long lines, two short lines represents and, a positive and negative sign is a voltage source, which is a two-terminal device capable of maintaining a constant voltage.

The voltage generates an electric field, which makes the electrons inside the conductive cables to move along the circuit from the positive sign to the negative sign.
