DochEvi [55]
2 years ago
8

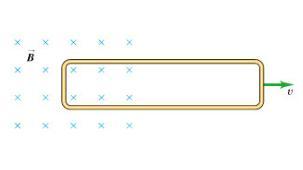

A rectangular loop of wire with dimensions 1.80 cm by 9.00 cm and resistance 0.800 Ω is being pulled to the right out of a regio

n of uniform magnetic field. The magnetic field has magnitude 2.60 T and is directed into the plane of (Figure 1) .
a) At the instant when the speed of the loop is 3.00 m/s and it is still partially in the field region, what is the magnitude of the force that the magnetic field exerts on the loop?
b) What is the direction of the force that the magnetic field exerts on the loop?

Physics
1 answer:
sladkih [1.3K]2 years ago
7 0

(a) The magnitude of the force that the magnetic field exerts on the loop is 0.042 N.

(b) The direction of the force that the magnetic field exerts on the loop will be out of the plane.

<h3>Magnetic force exerted on the loop</h3>

F = BIL

where;

  • I is current in the loop
  • L is length of the loop

emf = BVb

where;

  • b is breadth of the loop
  • V is velocity
  • B is magnetic field

emf = 2.6 x 3 x 0.018 = 0.1404 V

Current in the loop, I = emf/R = 0.1404/0.8 = 0.18 A

<h3>Magnetic force</h3>

F = BIL

where;

  • L is length of the loop

F = 2.6 x 0.18 x 0.09 = 0.042 N

<h3>Direction of the force</h3>

The direction of the force that the magnetic field exerts on the loop will be out of the plane.

Learn more about magnetic force here: brainly.com/question/13277365

#SPJ1

You might be interested in
The famous cliff divers of Acapulco leap from a perch 35 m above the ocean. How fast are they moving when they reach the surface
Rus_ich [418]

1) 26.2 m/s

The mechanical energy of the divers at any point of their vertical motion is sum of the kinetic energy and the gravitational potential energy:

E=K+U = \frac{1}{2}mv^2 + mgh

where

m is the mass of the diver

v is the speed

g = 9.8 m/s^2 is the acceleration due to gravity

h is the height above the water

When the diver is on the cliff, v = 0 (he is at rest), so K=0 and the initial mechanical energy is just potential energy:

E_i = mgh

where h=35 m is the height of the cliff.

When the diver hits the water above, h = 0, so U=0 and the final mechanical energy is just kinetic energy:

E_f = \frac{1}{2}mv^2

since the total mechanical energy is conserved, we have

E_i = E_f\\mgh = \frac{1}{2}mv^2

And solving the equation for v, we find the speed when they reach the surface of the water:

v=\sqrt{2gh}=\sqrt{2(9.8 m/s^2)(35 m)}=26.2 m/s

2) It is converted into thermal energy of the water

When the diver enters the water, he suddenly feels another force acting against the motion of the diver: the resistance of the water. The resistance of the water acts upward, slowing down the diver until he stops.

In this process, the speed of the diver (v) decreases, and therefore the kinetic energy of the diver decreases as well, until it becomes zero.

However, this does not mean that the conservation of energy has been violated. In fact, the kinetic energy of the diver has been converted into thermal energy of the molecules of water surrounding the diver.

8 0
3 years ago
What do you notice about earths axis during the winter solstice
MrRa [10]
The Earth's axis is tilted "away" from the Sun in the hemisphere. where it's winter. The daytime is very short. That's because the Earth's axis is tilted "away" from the Sun in the hemisphere.
8 0
4 years ago
When are Waves produced​
serg [7]

Answer:

Waves are caused by wind, or are created by the friction between wind and surface water

Explanation:

7 0
3 years ago
The kinetic energy of an object is increased by a factor of 4 . By what factor is the magnitude of its momentum changed?(a) 16(b
maw [93]

The kinetic energy of an object is increased by a factor of 4 . By what factor is the magnitude of its momentum changed: 2.

<h3>What is kinetic energy?</h3>
  • A particle or an item that is in motion has a sort of energy called kinetic energy. An item accumulates kinetic energy when work, which involves the transfer of energy, is done on it by exerting a net force.
  • Kinetic energy comes in five forms: radiant, thermal, acoustic, electrical, and mechanical.
  • The energy of a body in motion, or kinetic energy (KE), is essentially the energy of all moving objects. Along with potential energy, which is the stored energy present in objects at rest, it is one of the two primary types of energy.
  • Explain that a moving object's mass and speed are two factors that impact the amount of kinetic energy it will possess.

The kinetic energy of an object is increased by a factor of 4 . By what factor is the magnitude of its momentum changed: 2.

To learn more about kinetic energy, refer to:

brainly.com/question/25959744

#SPJ4

4 0
1 year ago
-<br> ZOOLS<br> 6) The mass of a motorcycle is 250 kg. What is?<br> A) Its weight on Earth in Newtons?<br> B) Its weight on the
marishachu [46]

Answer:

Explanation:

Weight is actually a force. A force can change depending on its location. A mass remains constant no matter where it is.

A)

F = m * a

m = 250 kg

a = 9.81 m/s^2

F = 250 * 9.81 = 2452.5 N

B)

The acceleration due to gravity on the moon is roughly 1/6 what it is on earth. You can check its value in your notes.

a = 9.81 + (1/6) = 1.635

m = 250

F = 250 * 1.635

F = 408.75

C)

The mass is the same anywhere in the universe.

250 kg

4 0
3 years ago
