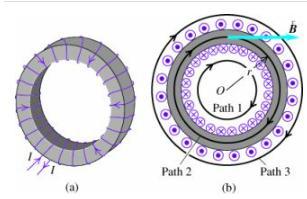

An ideal toroidal solenoid (Figure 1) has inner radius r1 = 15.1 cm and outer radius r2 = 18.3 cm. The solenoid has 180 turns an
d carries a current of 8.40 A.
a) What is the magnitude of the magnetic field at 12.6 cm from the center of the torus?
b) What is the magnitude of the magnetic field at 16.3 cm from the center of the torus?
c) What is the magnitude of the magnetic field at 20.7 cm from the center of the torus?
a) What is the magnitude of the magnetic field at 12.6 cm from the center of the torus?
b) What is the magnitude of the magnetic field at 16.3 cm from the center of the torus?
c) What is the magnitude of the magnetic field at 20.7 cm from the center of the torus?
2 answers:
Answer:
Part A & C: 0 T
Part B: 1.855*10^-3 T
Explanation:
The formula that models the magnetic field of a toroid is B=μ0*N*I/2π*r .
Note: Toroids keep their magnetic field rotating within the coils that carry current.
Part A & C: Thus the B field magnitude 12.6 cm & 20.7 cm away from the center is 0 T.
Part B:
B=1.855*10^-3 T
