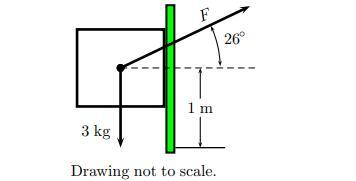

A 3.0 kg block is pushed 1.0 m at a constant

Physics

1 answer:

PSYCHO15rus [73]1 year ago

3 0

(a) The work done by the applied force is 32.6 J.

(b) The work done by gravity on the block is 29.4 J.

<h3>What is the force applied to the block?</h3>

The force applied to the block is determined by applying the formula for the net force on the block.

F(net) = 0

Fcosθ - mg - Fsinθμ = 0

Fcosθ - Fsinθμ = mg

F(cosθ - sinθμ) = mg

F = (mg) / (cosθ - sinθμ)

F = (3 x 9.8) / (cos26 - 0.2 x sin26)

F = 36.25 N

The work done by the applied force is calculated as;

W = Fd cosθ

W = (36.25 x 1) x cos(26)

W = 32.6 J

The work done by gravity on the block is calculated as follows;

W = mgd

W = 3 x 9.8 x 1

W = 29.4 J

The magnitude of the normal force is calculated as follows;

N = mg

N = 3 x 9.8

N = 29.4 N

Learn more about normal force here: brainly.com/question/14486416

#SPJ1

You might be interested in

Intense physical activity that requires little oxygen but uses short bursts of energy is called Anaerobic exercise? True or fals

Ghella [55]

I believe that is true. Anaerobic means without (much) Oxygen. This usually builds up lactic acid in muscles.

8 0

3 years ago

Which imaging technique uses radiation that is emitted from the material being imaged

garri49 [273]

Answer:

Positron emission tomography. Positron emission tomography (PET) is an imaging technique that uses radioactive substances to visualize and measure metabolic processes in the body.

4 0

4 years ago

Read 2 more answers

Which of the following represents an upright image? <br> A. -do<br> B. +m<br> C. -m<br> D. +do

Tom [10]

Answer:

B. +m

Explanation:

The magnification of an image is defined as the ratio between the size of the image and of the object:

$m = \frac{y'}{y}$

where we have

y' = size of the image

y = size of the object

There are two possible situations:

- When m is positive, y' has same sign as y: this means that the image image is upright

- When m is negative, y' has opposite sign to y: this means that the image is upside down

Therefore, the correct option representing an upright image is

B. +m

5 0

3 years ago

The resistance, R, to electricity of a cylindrical-shaped wire is given by the equation , where p represents the resistivity of

valentina_108 [34]

Answer:

infinity

Explanation:

Given that

Resistance = R

Resistivity = ρ

Length = L

Diameter = d

The resistance of wire R given as

$R=\rho\dfrac{L}{A}$

A=Area

$A=\dfrac{\pi d^2}{4}$

Now by putting the value of A

$R=\rho\dfrac{L}{\dfrac{\pi d^2}{4}}$

$R=\rho\dfrac{4L}{\pi d^2}$

When d tends to infinity then d² will also tends to infinity.

So when d tends to zero then the resistance tends to infinity.

Therefore answer is ---

infinity

7 0

3 years ago

Read 2 more answers

Horizontal rows are called ( )<br> and represent ( ) levels. <br> () are why I need answers plz

Rudiy27

Answer:

1. Periods; that are what horizontal rows on a periodic table are called.

2. Each period represents the number of levels

Explanation:

3 0

4 years ago
